Tea Bag Inside And Outside Bag Packaging Machine Tea Herbal Tea Tea Small Granules

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Model Number ZC-168
Minimum Order Quantity 1set
Price $7,380~$8,300
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification CE & ISO-9001 Type Multi-Function Packaging Machine
Production Capacity 50bag/min, 30bag/min, 60bag/min Dimension(L*W*H) 1270 * 860* 1840mm
Automatic Grade Automatic Weight (KG) 880
High Light

ZCHONE Tea Bag Packing Machine

,

Multifunctional Tea Bag Packing Machine

,

Triangle Tea Bag Packaging Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

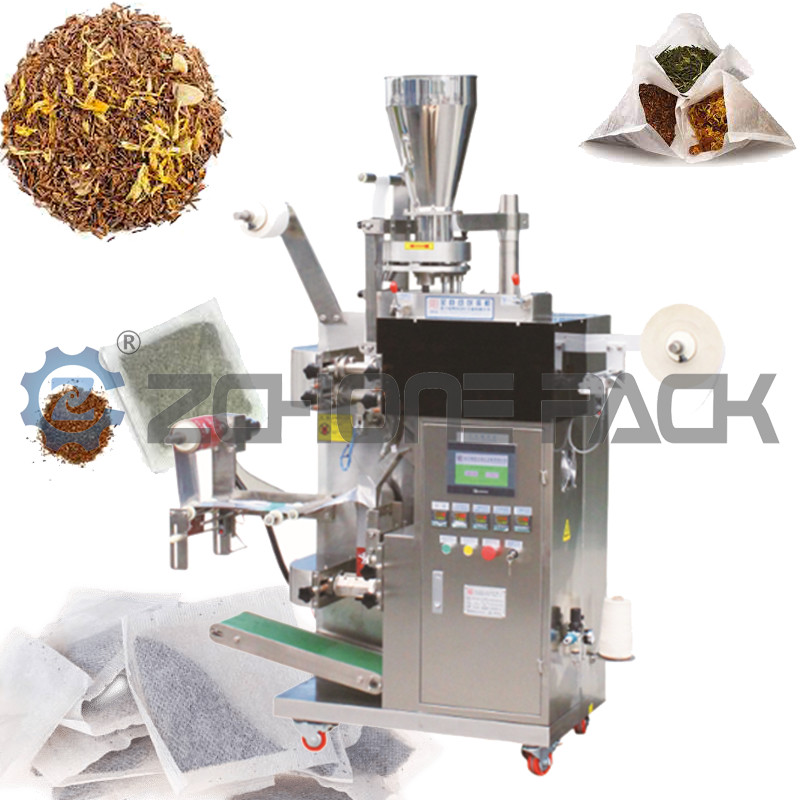

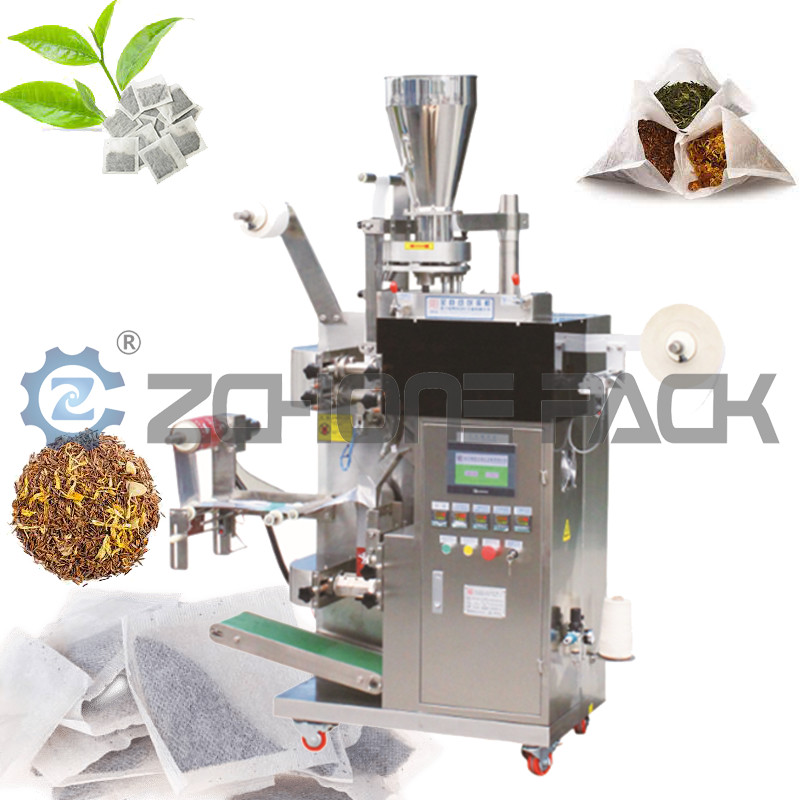

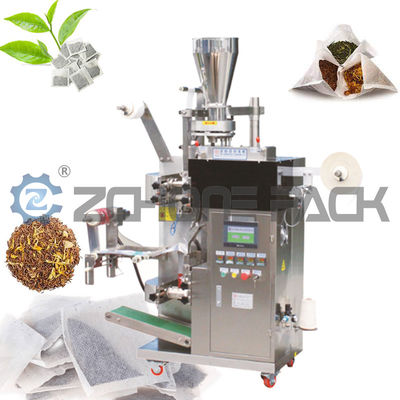

Tea Bag inside and outside Bag Packaging Machine Tea Herbal Tea Tea Small Granules





Technical Specifications:



Model MD-168
Working speed 30-60 bags/min
Filling system VOLUMETRIC
Bag type Three sides sealing
Acceptable bag size

Inner: 50-70mm * 40-80mm(L X W)

Outer: 85-120mm * 70-95mm(L X W)

Sealing method Heat sealing
Weighing range 0-15ml/bag
Power 220V Single phase 50/60Hz
Weight 450kg
Overall dimensions 1270 * 86 0* 1840mm



Teabags are more and more popular among young consumers because they are easy to carry, can maintain the natural flavor of the original tea, and can have different nutritional properties according to different tea species. Teabags have become the main consumption method in the tea industry.



Tea Bag Inside And Outside Bag Packaging Machine Tea Herbal Tea Tea Small Granules 0



This tea bag machine is suitable for disposable packaging of inner and outer bags of small particles such as tea, medicinal tea, tea, etc. The tea bag machine is a heat-sealed edge-sealing, multi-functional automatic tea bag beverage packaging equipment. The main feature of this machine is that the inner and outer bags are formed at one time, which avoids the direct contact between the human hand and the material and improves the efficiency. The inner bag is filter cotton paper, and the outer bag is composite paper. The advantages are: the outer bag adopts photoelectric positioning, the packaging capacity, inner bag, outer bag can be adjusted, and the size of the inner and outer bags can be adjusted according to the different needs of users, so as to achieve the ideal packaging effect, improve the appearance of the product, and make the product value. promote.

Tea Bag Inside And Outside Bag Packaging Machine Tea Herbal Tea Tea Small Granules 1

This tea bag maker is specially designed for filter paper dipped tea bags such as herbal tea, ground tea, health tea and loose tea, as well as coffee powder and small granules. With VOLUMETRIC weighing and feeding system, the maximum working speed can reach 60 bags/min. Using Mitsubishi PLC and Weinview touch screen, the packaging performance is stable and the operation is convenient.



Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.



Q2:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.



Q4:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
