Masala Powder Packing Machine Pillow Pouch Bag Making Packaging Machine

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-VP42
Minimum Order Quantity 1set
Price $15,900~$25,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Vertical Powder Packaging Machine Automatic Grade Automatic
Core Components Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox Application Food,Chemical,Commodity,Medical,Machinery & Hardware
Production Capacity 30bag/min Weight (KG) 560
Highlight

Commodity Masala Powder Packing Machine

,

PLC Masala Powder Packing Machine

,

30bag/min Pillow Pouch Packaging Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Masala Powder Packing Machine Pillow Pouch Bag Making Packaging Machine





Machine Specification:



Model ZC--VP32 ZC-VP42 ZC-VP52 ZC-VP62
Packing Speed 10-50 bags/min 10-50 包/分钟 10-50 包/分钟 5~50 bag/min
Bag Size (长L) 50-190mm (宽W) 50-150mm (L) 80-320mm (W) 70-200 mm (L) 80-320mm (W) 70-200 mm (L)120-400mm (W)110-300mm
Bag Making Form Pillow type back seal bag (roll film for packaging material, automatic bag making by machine is upper sealing, lower sealing and back sealing.) Pillow bag (optional: stand-up bag, prong bag, punch bag))
Maximum Packaging Film Width 320mm 420mm 420mm Max 2500ml
Measurement Range 500ml 1000ml 1000ml 620mm
Membrane Thickness 0.04-0.12mm 0.04-0.10mm 0.04-0.10mm 0.04-0.14mm
Complete Set of Air Consumption 0.8Mpa 0.5m3/min 0.8Mpa 0.3m³/分 0.8Mpa 0.3m³/分 0.8Mpa 0.5m3/min
Total Power/Voltage 2.5KW/220V 50Hz 2.7KW/220V 50Hz 2.7KW/220V 50Hz 4.2KW/220V 50Hz
Dimensions (L)1350*(W)820*(H)1150mm L1480*W960*H1400mm L1480*W960*H1400mm L1964*W1240*H1960mm
Switchboard Weight 380kg 450kg 450kg 450kg

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)



Masala is a compound seasoning made of turmeric as the main ingredient and a variety of spices. It is spicy and sweet, and has a special aroma. It is mainly used for cooking beef, mutton, chicken, duck, crab, and potatoes. , soup, etc., are commonly used seasonings in Chinese and Western food. In India, Marsala seasoning powder can be put into many foods such as cola milk tea ice cream fruit.



Masala Powder Packing Machine Pillow Pouch Bag Making Packaging Machine 0

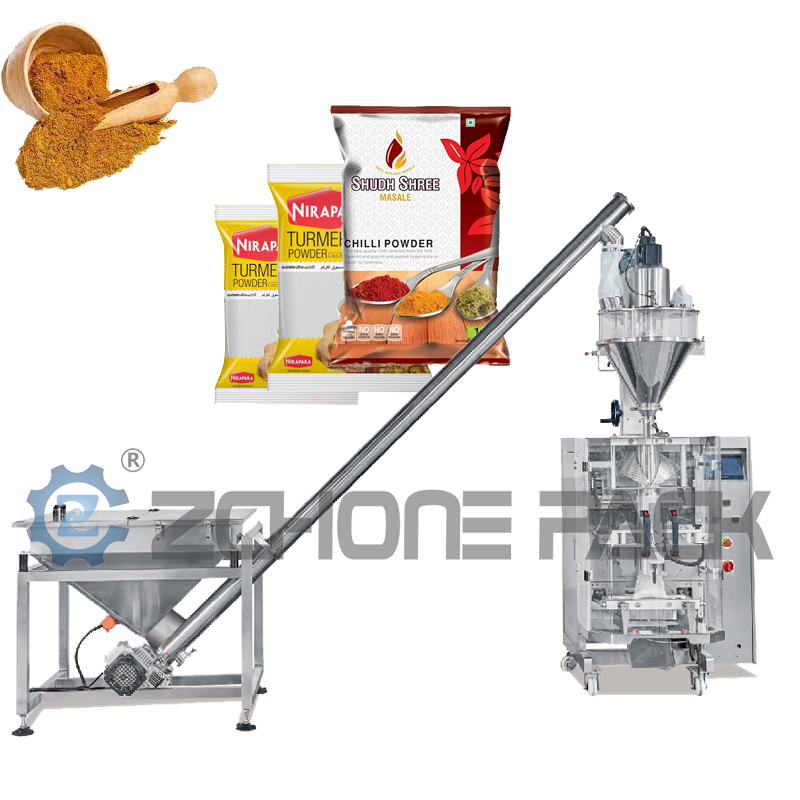

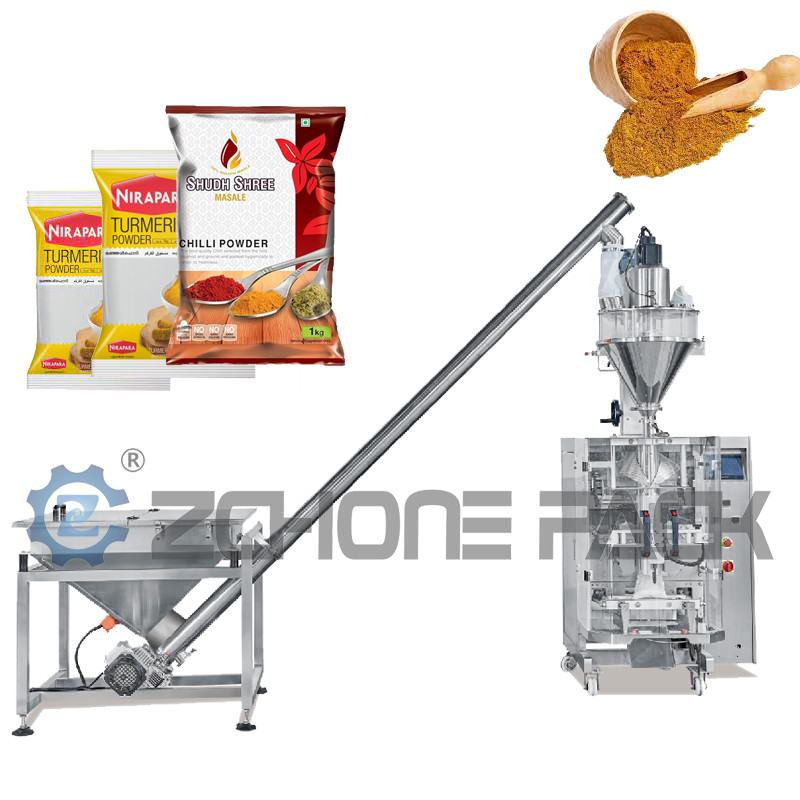

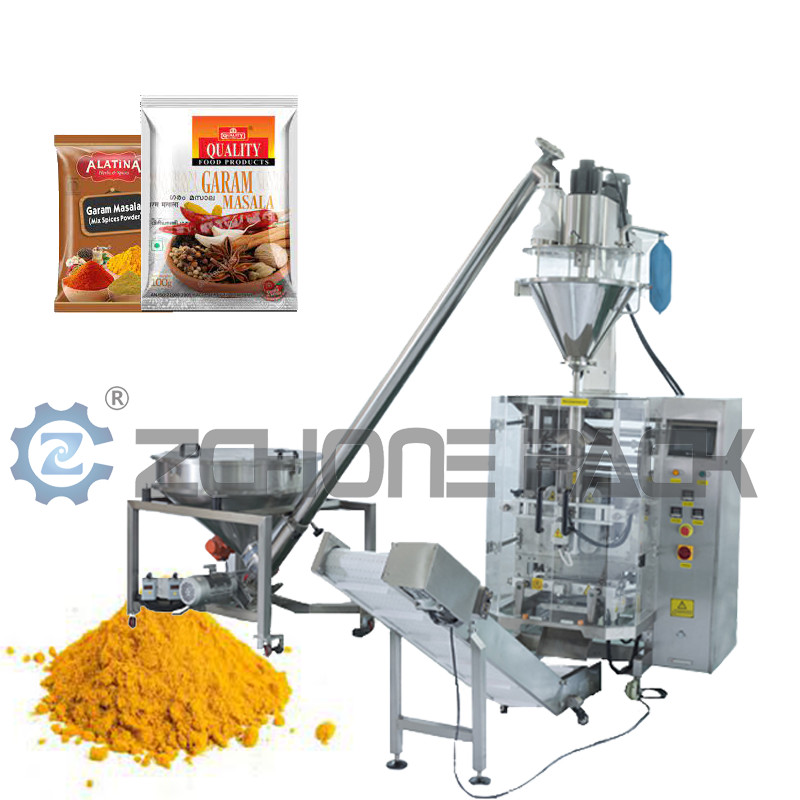

If powder materials such as Masala are packaged by roll film bagging, vertical packaging machines can be selected for fully automated packaging. The powder vertical packaging unit is composed of a closed screw elevator, a screw metering machine, a vertical bag making and packaging machine and a finished product conveyor. It has a series of functions such as automatic feeding, measuring, bag making, filling, sealing, bag cutting, printing, counting, conveying, etc. It is the first choice for improving packaging production efficiency in food, chemical, pharmaceutical and other industries.



Masala Powder Packing Machine Pillow Pouch Bag Making Packaging Machine 1



Features and Performance



1. High speed and high efficiency.

2. Mitsubishi PLC full computer control system, man-machine interface, large display touch screen, easy to operate.

3. Servo film transport system, horizontal sealing pneumatic control, accurate positioning, excellent performance of the whole machine, and perfect automatic alarm protection function to minimize the loss.

4. High-speed and fully automatic, the whole process of weighing, feeding, bag making, filling, printing date, counting, and finished product output can be automatically completed when the metering device is matched.

5. The food contact parts are made of high-quality 316#/304# stainless steel to ensure food safety.



Masala Powder Packing Machine Pillow Pouch Bag Making Packaging Machine 2
