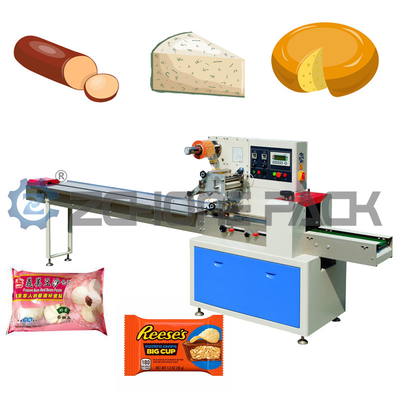

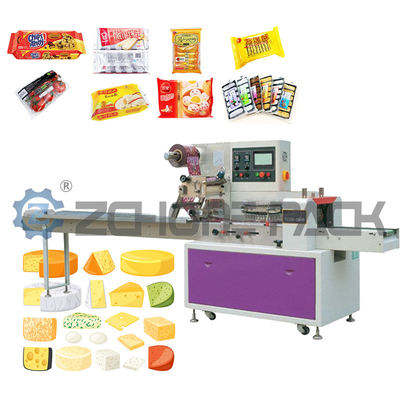

Pillow Type Packing Machine Horizontal Bread Pastry Hardware Toys
Place of Origin | Guangdong,China |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | ZC-250 |
Minimum Order Quantity | 1set |
Price | $4,890~$5,990 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Multi-Function Packaging Machine | Product Name | Plow Packing Machine |
---|---|---|---|
Automatic Grade | Automatic | Voltage | 220V 380V 50/60HZ |
Warranty Of Core Components | 1 Year | Warranty | 1 Year |
Highlight | 380V Pillow Type Packing Machine,Horizontal Pillow Type Packing Machine,Automatic Horizontal Pillow Packing Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |
Multifunctional Pillow Type Horizontal Packaging Machine Bread and Pastry Hardware Toys
Machine Specification:
Type | 250 | 250(3Cutters) | 250(4Cutters) | 320 | 350 | 450 | 600 |
Film width | Max.250mm | Max.180mm | Max.320mm | Max.350mm | Max.450mm | Max.600mm | |
Bag length | 65-190 or 120-280mm | 50-115mm | 45-90mm | 65-190 or 120-280mm | 90-220 or 150-330mm | 130-450mm | 120-450mm |
Bag width | 30-110mm | 30-80mm | Max.40mm | 50-160mm |
60-200 mm |
50-200 mm |
|
Product height | Max.40mm | Max.35mm |
Max.320 mm |
Max.60mm |
Max.80 mm |
10-80mm | |
Film roll diameter | Max.320mm | Max.320 mm | Max.450mm | Max.320 mm | |||
Packaging rate | 40-230bag/min | 60-330bag/min | 40-230bag/min | 40-230bag/min | 30-180bag/min | 20-80bag/min | |
Power | 220V 50/60Hz 2.4kw | 220V 50/60/Hz 2.8kw | 220V 50/60Hz 2.6kw | 220V 50/60Hz 2.4kw | 220V 50/60Hz 2.6kw | 220V 50/60Hz 3.6kw | |
Machine size | (L)3370*(W)670*(H)1450mm | (L)3370*(W)720*(H)1450mm | (L)4020*(W)770*(H)1450mm | (L)4020*(W)820*(H)1450mm | (L)4380*(W)970*(H)1500mm | ||
Machine weight | 800kg | 900kg | 960kg | 1160kg | |||
Remarks | Optional air filling devlce |
(We can provide you with exclusive customized services according to your needs!)
The pillow packaging machine is widely used in a wide range of applications and can pack many products. It is also called "multi-functional flow packaging machine" or "horizontal pillow packaging machine."
The pillow-type packaging machine adopts color touch screen and stable and reliable dual-axis high-precision output plc control, bag making, measuring, filling, sealing, coding, and bag cutting at one time. It adopts pneumatic control and circuit control, with low noise and stable performance. Pillow-type packaging machines generally use double-belt servo-pulling die and double-servo control, with less resistance, better packaging bags, more beautiful appearance, high positioning accuracy, and accurate dimensions.
Flow packing machine applicable products:
Food: bakery, candy biscuits, moon cakes, ice cream, dumplings, dumplings, frozen food, etc.
Hardware: hinges, guide rails, hinges, buckles, bearings, magnetic suction, door handles, braided tubes, furniture hardware, etc.
Toys: dolls, dolls, pressure relief toys, etc.
Agriculture: vegetables, fruits, etc.
Daily necessities: wet wipes, tape, scouring pads, double-sided tape, disposable products, etc.
