Double Head Milk Bottling Machine AC 380V 50 60Hz Food Packing
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | ZCHONE PACK |
| Certification | ISO，CE |
| Model Number | ZC-G33 |
| Minimum Order Quantity | 1set |
| Price | $14,800~$38,800 |
| Packaging Details | Standard export wooden case packaging |
| Delivery Time | 15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Filling Machine | Product Name | Liquid Filling Machine |
|---|---|---|---|
| Material | Stainless Steel | Function | Food,beverage,medical,chemical |
| Metering Method | Twin Screw Filling Heads Metering | Filling Weight | 100-2000g |
| Highlight | 380V Milk Bottling Machine,60Hz Milk Bottling Machine,380V milk packing machine |
||
You can tick the products you need and communicate with us in the message board.
| Machine type | |
|---|---|
| Can sealing machine | |
| Vacuum Sealer | |
| Capping machine | |
| Dust cover capping machine | |
| Granule filling machine | |
| Powder canning machine | |
| Liquid filling machine | |
| Premade Bag Packaging Machine | |
| Vertical bag making and packaging machine | |
| Pre-made bag vacuum packaging machine | |
| Pillow packing machine |
Product Description

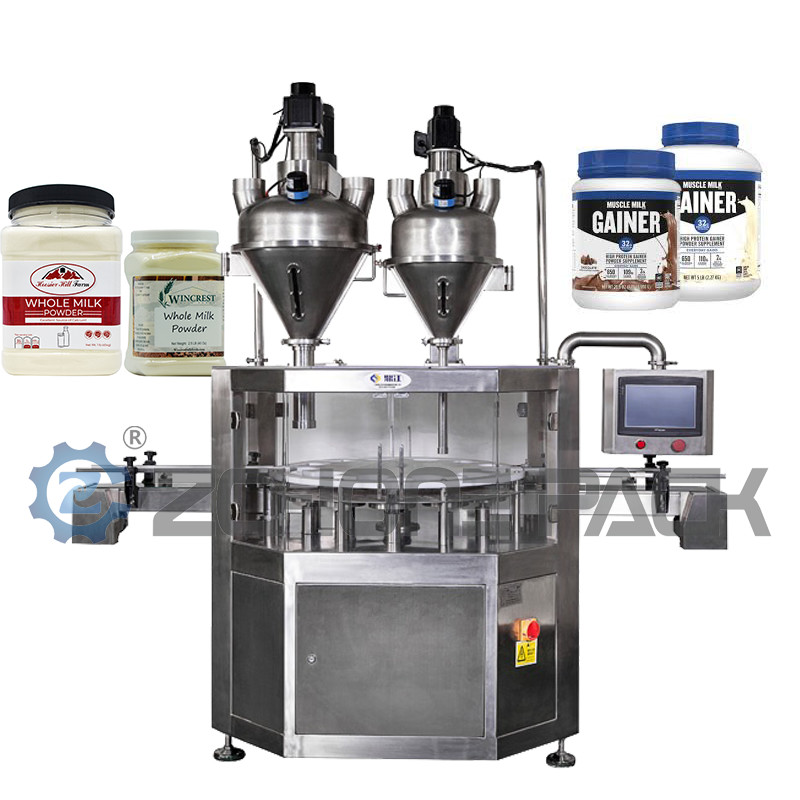

Automatic Double Head Powder Filling Machine Milk Powder Protein Powder Glucose Rice Powder
Main Parameters
| Metering Method: | Twin screw filling heads metering |
| Filling Weight: | 100-2000g |
| Container Size: | Φ60-135mm；H60-260mm |
| Accuracy: | 100-500g,≤±1g；≥500g,≤±2g |
| Speed: |
＞50cans/min(#502cans)u, ＞55cans/min(#300~#401)up |
| Working Voltage: | AC380V,50Hz/60Hz |
| Power: | 3.4kw |
| Weight: | 450kg |
| Compressed air: | 6kg/cm 0.2cbm/min |
| Dimension: | 2650*1040*2300mm |
| Material Box volume: | 50L(main)30L(supplementary) |
The automatic double-head powder filling machine is a double-station filling machine with a single-row main and auxiliary double-head filling system, which mainly completes high-precision filling and metering work. Suitable for filling milk powder, protein powder, chicken powder, glucose, rice flour, cocoa powder, solid drinks, etc.
Main features:
1. single row double head filling, main filling and auxiliary filling to ensure high filling accuracy.
2. servo and pneumatic systems control tank support and horizontal tank movement, accurate positioning and fast speed.
3. PLC control, touch screen HMI display, easy operation.
4. servo motor and servo drive control screw, stable performance and high precision.
5. Equipped with dust removal device, connected with negative pressure pipeline, no dust pollution to the environment.
6. All stainless steel structure; horizontal open box (polished inside and outside), very easy to clean.
7. Weighing system with high response speed to ensure that high filling speed and high precision can be achieved.
Q1: Do you have manuals or operating videos to let us know more about the machines?
Yes, not only manual or operating videos and 3D drawings can be made from your design, but also videos where we can test materials from our packaging machines if your packaged goods are more readily available from our local market.
Q2: Do you offer a home delivery service?
Yes please provide us with your final destination and we will check with our agents for availability, most areas can be cleared and dispatched in your country.
Q3: Is it possible for an engineer to service overseas?
Yes, but the travel costs are paid by you. So, in effect, to save you money, we will send you a video of the full details of the machine installation and assist you with the installation.
Q4: How do we ensure the quality of the machine once we have placed the order?
Prior to delivery we will send you pictures and videos so that you can check the quality, or you can arrange a quality check yourself or through your contact person in China.
