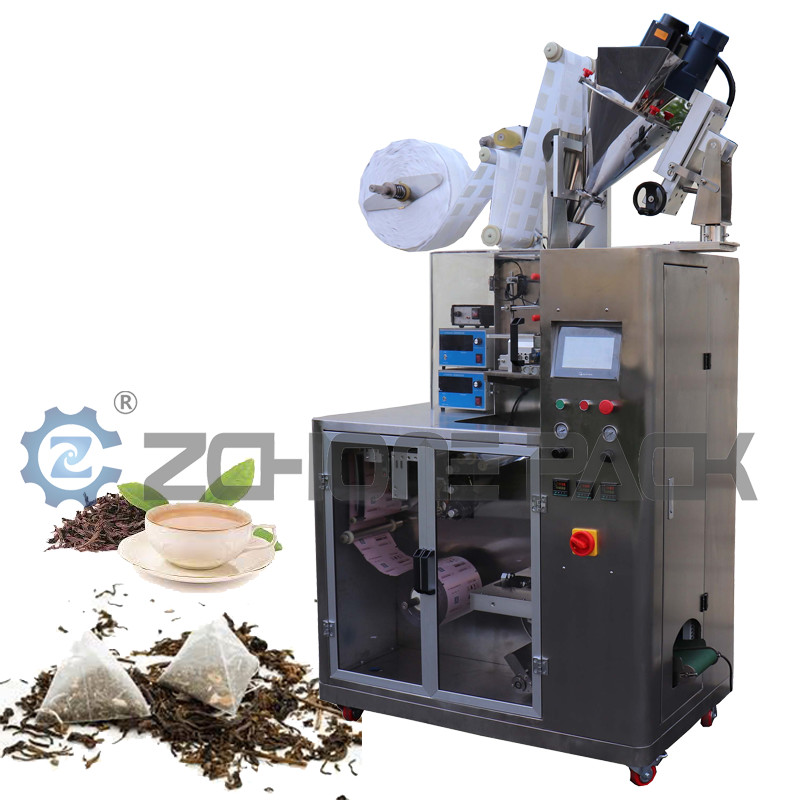

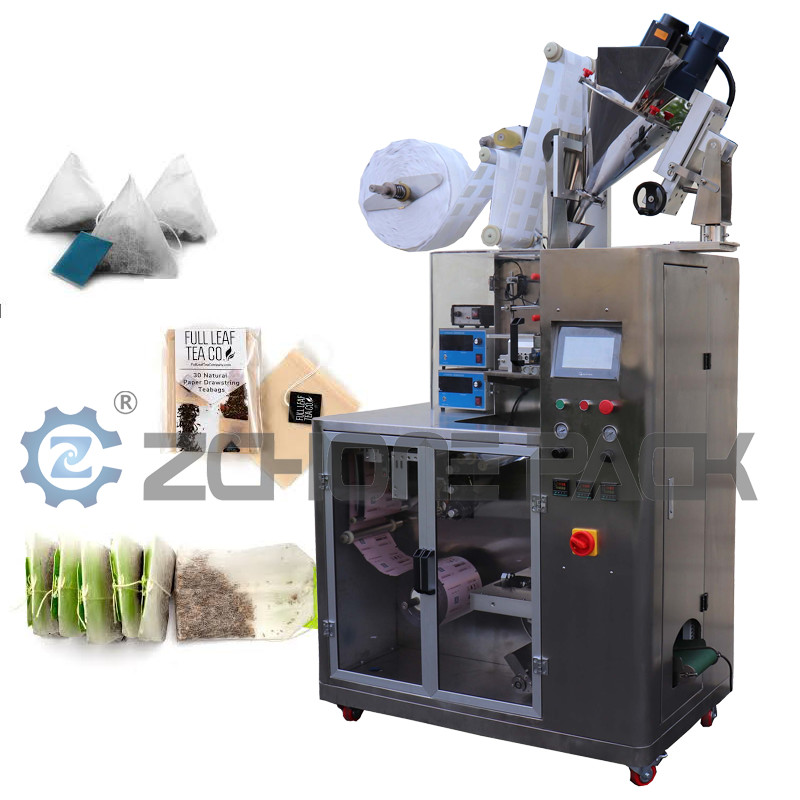

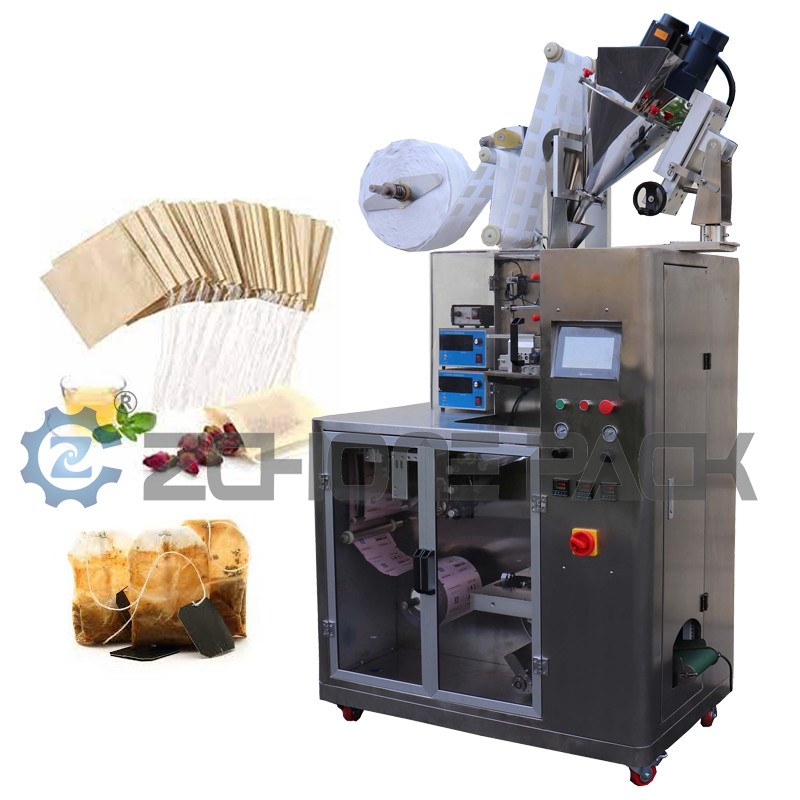

Pyramid Tea Bag Packing Machine Full Ultrasonic Sealing 3.7 Kw
Place of Origin | Guangdong,China |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | ZC-8200 |
Minimum Order Quantity | 1set |
Price | $7,000.00 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15day |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Tea Bagpacking Machine | Weight (KG) | 650 |
---|---|---|---|
Dimension(L*W*H) | 1270 * 860* 1840mm | Packaging Type | Bags |
Certification | CE & ISO-9001 | Condition | New |
Highlight | Pyramid Tea Bag Packing Machine,Ultrasonic Sealing Tea Bag Packing Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |
Do You Want to Know How the Tea Bag Machine Works? Pyramid Tea Bag Packing Machine Tea Bag Machine
Technical Specifications:
Item | Descriptions |
Driven | Pneumatic |
Capacity | About 40 bags/min (determined by coffee materials and film) |
Inner Film Width | 180 mm (75*90mm) |
Outer Film Width | 200 mm (100*125mm) |
Customized Bag Size | Available (pls tell us your size in advance) |
Sealing Method | Full ultrasonic sealing for inner bag; Heat sealing for envelope |
Sealing Type | 3-side sealing |
Filling Range | 8~15 g |
Feeding System | Slant auger + mixer |
Feeding Capacity | 5 Kg |
Air Consumption | 0.8MPa, 0.3M3/minute |
Power | 3.7 Kw |
Voltage | 220V, single phase; 50HZ; |
Dimension | L 1350* W 850* H 2200 mm |
Reference Weight | 560 kg |
A tea bag packing machine is a device that is used to automatically pack tea bags into individual sealed packages for retail sale or distribution. The machine typically consists of several components including a tea bag forming unit, a filling station, a sealing station, and a packaging station.
Here is a brief overview of the process:
1. Tea bag forming unit: This component forms the tea bags by cutting a roll of filter paper into individual tea bag shapes.
2. Filling station: The tea bags are then filled with the desired amount of tea leaves or other ingredients, such as herbs or spices.
3. Sealing station: The tea bags are sealed using heat or ultrasonic waves to ensure they are airtight and prevent moisture or air from entering.
4. Packaging station: The sealed tea bags are then packaged into individual pouches or boxes, ready for retail sale or distribution.
Depending on the model, tea bag packing machines may be able to produce a variety of tea bag shapes and sizes and may include additional features such as automatic feeding, cutting, and labeling.
