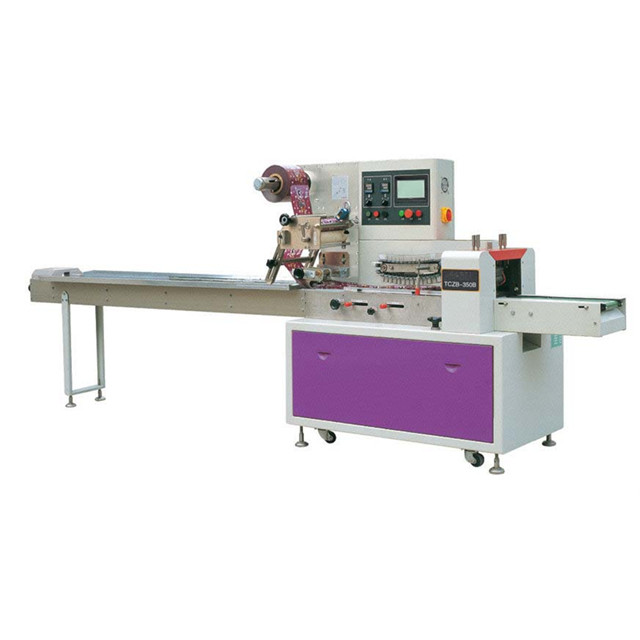

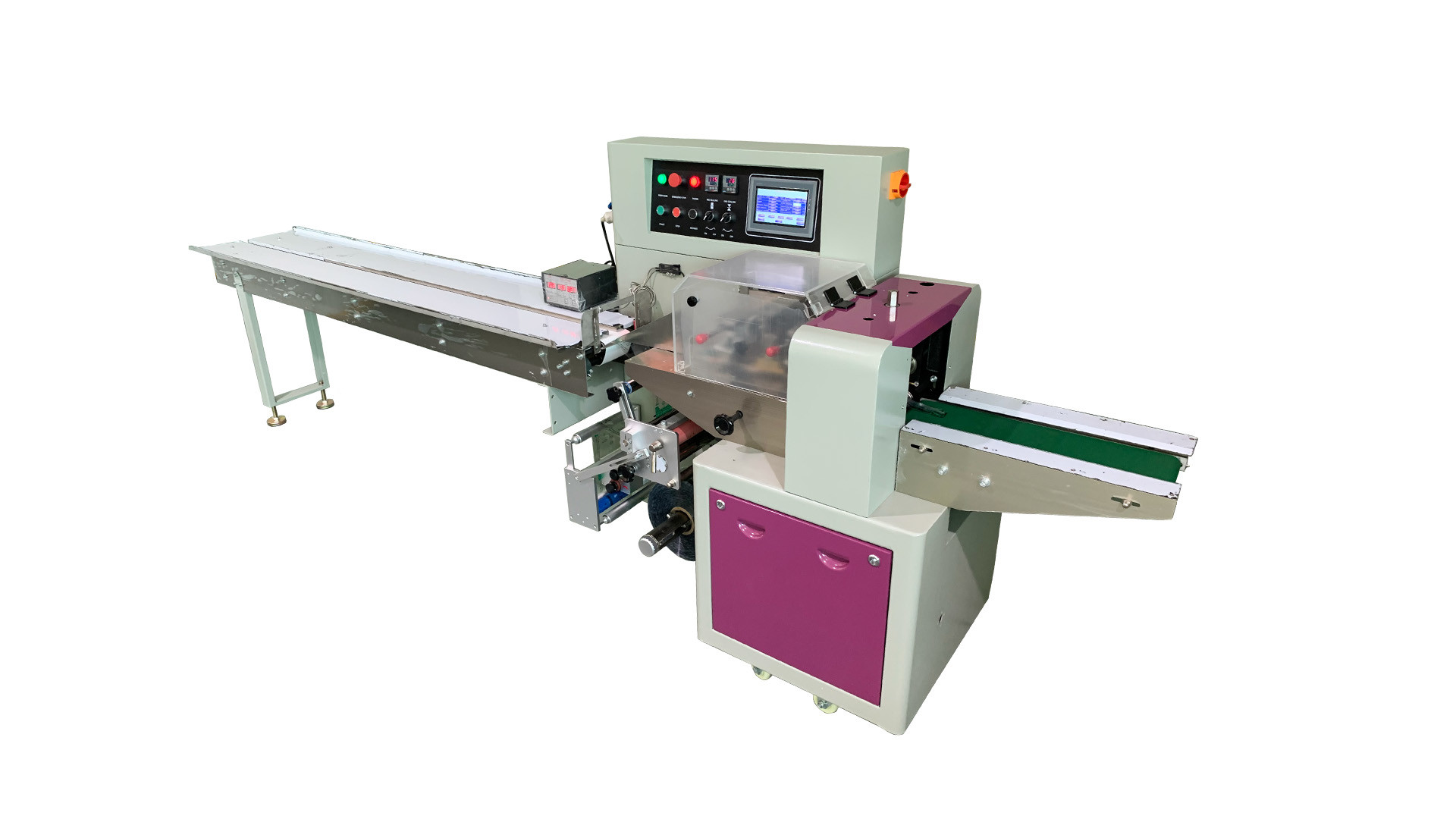

Automatic Multifunctional Flow Packaging Machine Assembly Line Packing

  • Automatic Multifunctional Flow Packaging Machine Assembly Line Packing
  • Automatic Multifunctional Flow Packaging Machine Assembly Line Packing
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-450
Minimum Order Quantity 1set
Price $4890.00~$5500.00
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Pillow Packing Machine  Packing Speed 40 - 230 Bags / Minute
Dimension(L*W*H) （L)4020(W)770X(H)1450mm Place Of Origin Guangdong, China
Application Suitable For Packaging Various Kinds Of Regular Objects Like Biscuits, Pies , Chocolates,bread, Instant, Noodles, Moon-cakes, Drugs, Daily Applications, Industrial Parts, Paper Boxes, Tray Etc. Warranty Of Core Components 1 Year
Highlight

Multifunctional Flow Packaging Machine

,

1450mm Flow Packaging Machine

,

Automatic Flow Wrap Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Automatic multifunctional Flow packaging machine assembly line packing





Machine Specification:



Type 250 250(3Cutters) 250(4Cutters) 320 350 450 600
Film width Max.250mm Max.180mm Max.320mm Max.350mm Max.450mm Max.600mm
Bag length 65-190 or 120-280mm 50-115mm 45-90mm 65-190 or 120-280mm 90-220 or 150-330mm 130-450mm 120-450mm
Bag width 30-110mm 30-80mm Max.40mm 50-160mm

60-200

mm

50-200

mm
Product height Max.40mm Max.35mm

Max.320

mm

 Max.60mm

Max.80

mm

 10-80mm
Film roll diameter Max.320mm Max.320 mm Max.450mm Max.320 mm
Packaging rate 40-230bag/min 60-330bag/min 40-230bag/min 40-230bag/min 30-180bag/min 20-80bag/min
Power 220V 50/60Hz 2.4kw 220V 50/60/Hz 2.8kw 220V 50/60Hz 2.6kw 220V 50/60Hz 2.4kw 220V 50/60Hz 2.6kw 220V 50/60Hz 3.6kw
Machine size (L)3370*(W)670*(H)1450mm (L)3370*(W)720*(H)1450mm (L)4020*(W)770*(H)1450mm (L)4020*(W)820*(H)1450mm (L)4380*(W)970*(H)1500mm
Machine weight 800kg 900kg 960kg 1160kg
Remarks Optional air filling devlce

(We can provide you with exclusive customized services according to your needs!)



The pillow packaging machine is called a Flow packing machine because the shape of the packaging pouch is pillow-like. Flow packaging machine are widely used in food, daily chemical and other packaging industries. Such as moon cakes, biscuits, chocolate, bread, instant noodles, trays, etc.



Automatic Multifunctional Flow Packaging Machine Assembly Line Packing 0



The Flow packing machine adopts an intelligent color touch screen, which can clearly display various parameters. The man-machine interface is convenient for parameter modification, and it is also more convenient for employees to operate and maintain machinery. The length of the wrapping paper of the horizontal packaging machine can be adjusted arbitrarily, and it has the characteristics of multi-purpose and very wide applicability.



work process:



Turntable material arrangement - feeding - arrangement - film feeding - filling - forming - sealing - horizontal sealing - cutting - finished product



Automatic Multifunctional Flow Packaging Machine Assembly Line Packing 1



Applicable Products:



1. Granular and block items: all kinds of candy, hard candy, soft candy, chocolate, dried fruit, preserved fruit, and other small block items.

3. Biscuits and pastry snacks: biscuits, cakes, bread, instant noodles, egg yolk pie, moon cakes and other foods.

4. Daily necessities: soap, soap, cosmetics, daily necessities, toothbrushes, disposable chopsticks, etc.

5. Paper products: napkins, rolls, wet wipes, hygiene products, etc.

6. It is suitable for packing all kinds of fresh vegetables, fruits and flowers.

7. Liquid pastes: beverages, toothpaste, facial cleanser, detergent, hand sanitizer, etc.

8. Packaging of various regular objects such as toys, industrial parts, cartons or trays.
