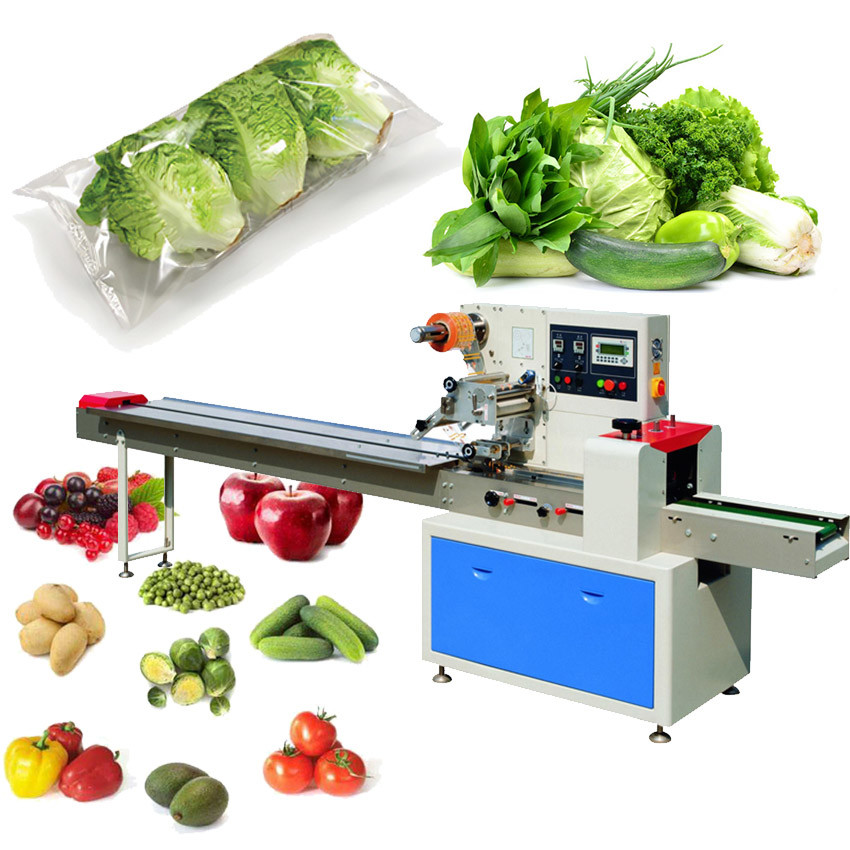

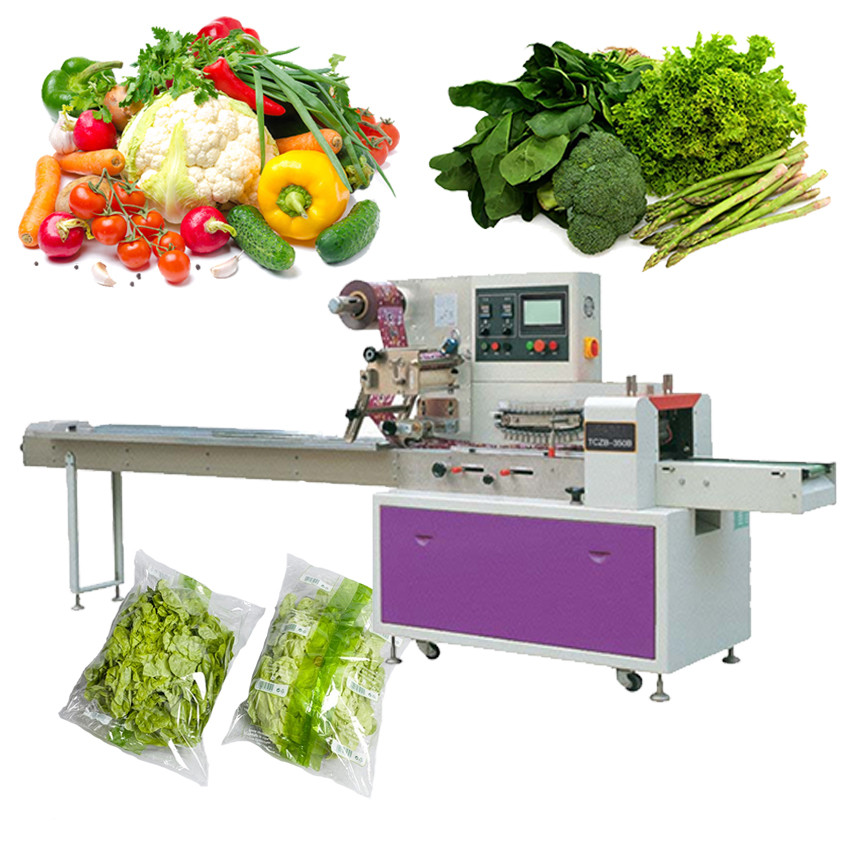

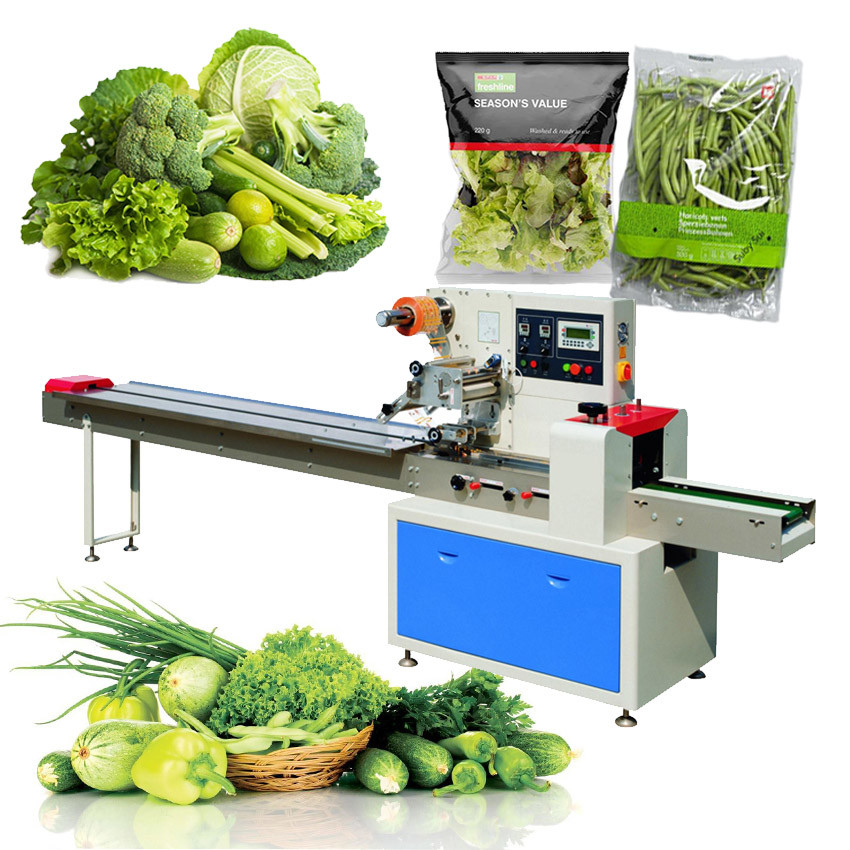

Horizontal Flow Packing Machine Assembly Line Packaging Vegetables Fruit Bread
Place of Origin | Guangdong,China |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | ZC-250 |
Minimum Order Quantity | 1set |
Price | $4,890~$5,990 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Multi-Function Packaging Machine | Product Name | Plow Packing Machine |
---|---|---|---|
Warranty Of Core Components | 1 Year | Warranty | 1 Year |
Voltage | 220V 380V 50/60HZ | Automatic Grade | Automatic |
High Light | 380V Flow Packing Machine,Vegetable Flow Packing Machine,Bread Horizontal Flow Pack Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |
Plow Packing Machine Horizontal Assembly Line Packaging Vegetables Fruit Bread
Machine Specification:
Type | 250 | 250(3Cutters) | 250(4Cutters) | 320 | 350 | 450 | 600 |
Film width | Max.250mm | Max.180mm | Max.320mm | Max.350mm | Max.450mm | Max.600mm | |
Bag length | 65-190 or 120-280mm | 50-115mm | 45-90mm | 65-190 or 120-280mm | 90-220 or 150-330mm | 130-450mm | 120-450mm |
Bag width | 30-110mm | 30-80mm | Max.40mm | 50-160mm |
60-200 mm |
50-200 mm |
|
Product height | Max.40mm | Max.35mm |
Max.320 mm |
Max.60mm |
Max.80 mm |
10-80mm | |
Film roll diameter | Max.320mm | Max.320 mm | Max.450mm | Max.320 mm | |||
Packaging rate | 40-230bag/min | 60-330bag/min | 40-230bag/min | 40-230bag/min | 30-180bag/min | 20-80bag/min | |
Power | 220V 50/60Hz 2.4kw | 220V 50/60/Hz 2.8kw | 220V 50/60Hz 2.6kw | 220V 50/60Hz 2.4kw | 220V 50/60Hz 2.6kw | 220V 50/60Hz 3.6kw | |
Machine size | (L)3370*(W)670*(H)1450mm | (L)3370*(W)720*(H)1450mm | (L)4020*(W)770*(H)1450mm | (L)4020*(W)820*(H)1450mm | (L)4380*(W)970*(H)1500mm | ||
Machine weight | 800kg | 900kg | 960kg | 1160kg | |||
Remarks | Optional air filling devlce |
(We can provide you with exclusive customized services according to your needs!)
The basic functions of the plow packing machine: the pillow packaging machine is suitable for the overall production and packaging of the assembly line, such as: packaging bags in the fields of food, daily chemicals, hardware, medical treatment, vegetables and so on.
The plow type packaging machine adopts color touch screen and stable and reliable dual-axis high-precision output plc control, bag making, measuring, filling, sealing, coding, and bag cutting at one time. It adopts pneumatic control and circuit control, with low noise and stable performance. Pillow-type packaging machines generally use double-belt servo-pulling die and double-servo control, with less resistance, better packaging bags, more beautiful appearance, high positioning accuracy, and accurate dimensions.
The plow packaging machine has the characteristics of energy saving, power saving and high efficiency, and can be adjusted in function and technically improved according to different market demands. The pillow packaging machine has a wide range of applications, flexible adjustment systems, and a wide range of packaging. Items of various specifications, shapes and properties can be packaged by the pillow packaging machine, such as: biscuits, potato chips, paper towels, soap, hardware products, carton etc.
