Premade Pouch To Bag Liquid Packing Machine With Liquid Pump Paste Pump

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-XF8
Minimum Order Quantity 1set
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability $18,000~$25,900

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Product Name Multi-station Liquid Packaging Machine
Voltage 220V/380V Automatic Grade Automatic
Application Food,Chemical,Medical,Commodity,Beverage Condition New
Highlight

Premade Liquid Packing Machine

,

Paste Pump Liquid Packing Machine

,

Liquid Pump Premade Bag Packing Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Liquid Packaging Machine Premade Pouch to Bag Machine with Liquid Pump/Paste Pump





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive customized services according to your needs!)



When we buy a product, a large part of it is for the packaging. A beautiful packaging will make the product more attractive. Liquid is the source of life, and the packaging of liquid needs to pay more attention to quality. In order to improve the quality and efficiency of liquid packaging, the use of automatic liquid packaging machines is the first choice for many businesses.

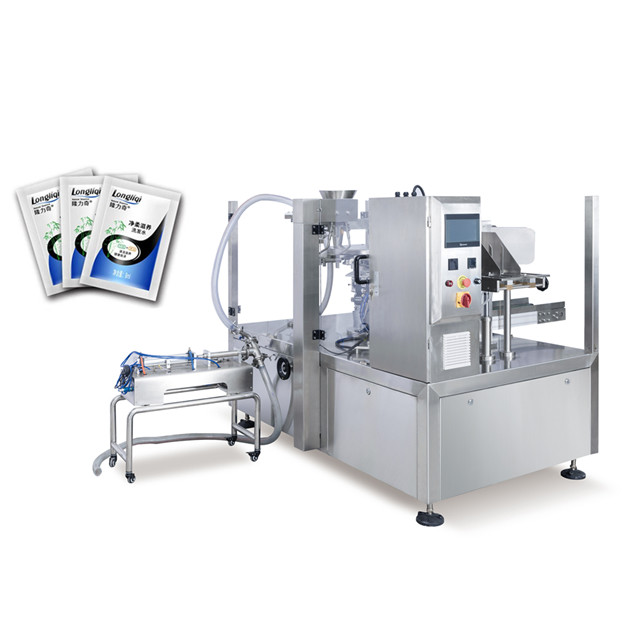

Premade Pouch To Bag Liquid Packing Machine With Liquid Pump Paste Pump 0



The liquid feeding pouch packing machine can integrate the processes of bag taking - coding - opening bag - metering and blanking - dust removal - cleaning - heat sealing - cold sealing - output, etc., which can efficiently and quickly adapt to the needs of the consumer market for many production enterprises. Quickly occupy the consumer market.

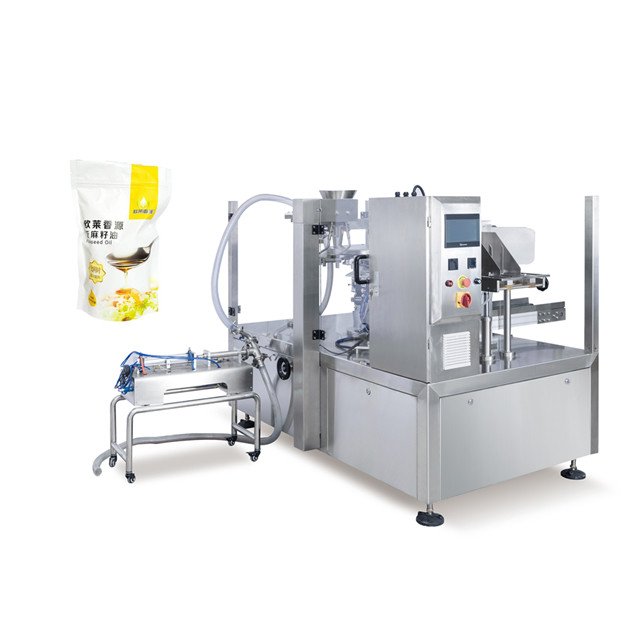

Premade Pouch To Bag Liquid Packing Machine With Liquid Pump Paste Pump 1



Liquid to pouch packing machine can pack:



Food: hot pot base, hot pot dip, syrup, chili oil, tomato sauce, salad dressing, soy sauce vinegar, hot pot seasoning, sweet noodle sauce, loquat paste, barbecue sauce, bean paste, liquid brown sugar, milk, yogurt, butter, rice wine, egg white , jam, chili sauce, etc.;

Chemical industry: pet wet food, detergent, shampoo, water emulsion sample, hand sanitizer, laundry detergent, disinfectant, softener, care agent, foliar fertilizer, etc.

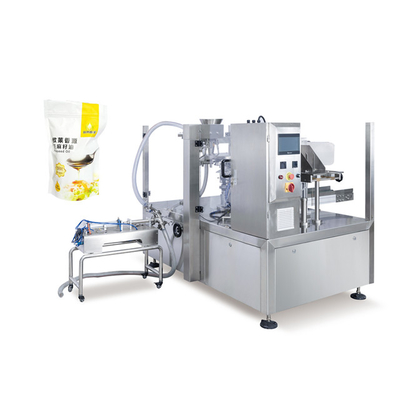

Premade Pouch To Bag Liquid Packing Machine With Liquid Pump Paste Pump 2



Our liquid feeding pouch packing machine can automatically adjust the width of the bag, and uses 304 stainless steel food material in the contact part with the material, which meets the hygienic requirements.



Premade Pouch To Bag Liquid Packing Machine With Liquid Pump Paste Pump 3
