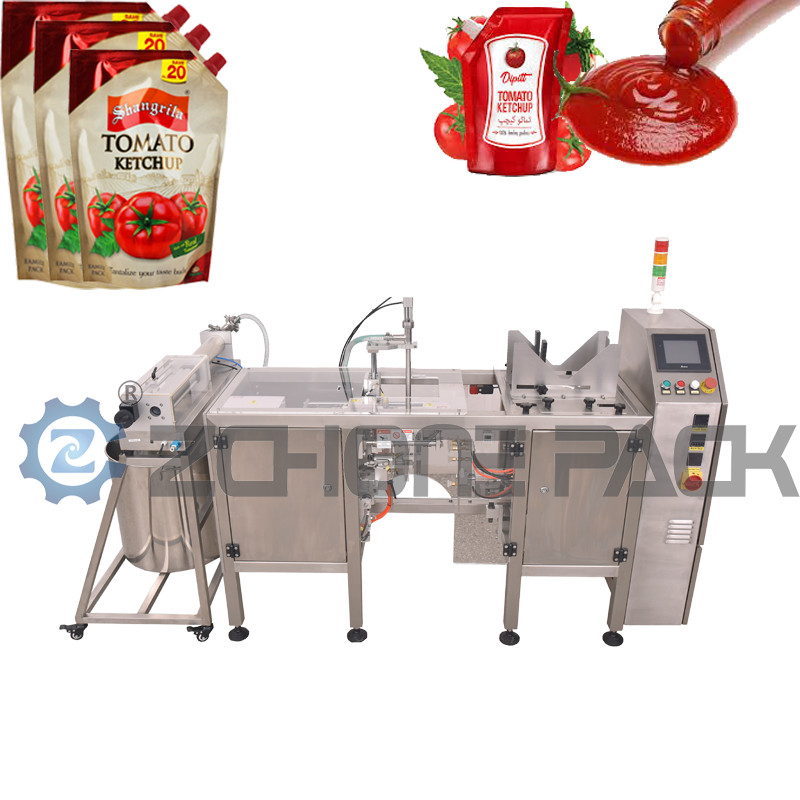

Ketchup Liquid Packing Machine Doypack Packing Machine Tomato Sauce Pouch

  • Ketchup Liquid Packing Machine Doypack Packing Machine Tomato Sauce Pouch
  • Ketchup Liquid Packing Machine Doypack Packing Machine Tomato Sauce Pouch
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-200
Minimum Order Quantity 1set
Price $13,900~$18,900
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Product Name Ketchup Packing Machine
Warranty 1 Year After Warranty Service1 Video Technical Support
After Warranty Service2 Online Support After Warranty Service3 Spare Parts
Highlight

Multifunctional Liquid Packing Machine

,

Doypack Liquid Packing Machine

,

220V Ketchup Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Ketchup Packing Machine Liquid Doypack Packing Machine Tomato Sauce Pouch





Machine Specification:



Item 200 300 430
Bag Material Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag size 100mm≤L≤200mm 100mm≤L≤300mm 100mm≤L≤430mm
70mm≤W≤150mm 80mm≤W≤300mm 80mm≤W≤300mm
Bag Type 3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type N/A

Gusset Bag, Zipper Bag, Flat Bottom Pouch

(Need additional purchase of functional device)
Speed 0~26bags/min 0~15bags/min
Sealing Type Plain weave Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width 8mm 10mm(5--20mm can be customized)
Voltage 220V, Single-phase, 50/60HZ, 1KW 220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure 0.65Mpa
Air Consumption 0.2m³/min 0.3m³/min
Standard machine, no additional function
Body Dimension 1080*535*1010mm 1770*600*1230mm 1770*600*1360mm
Packing Dimension 1240*670*1320mm 1860*710*1550mm 1860*710*1650mm
Export non-fumigation wooden case

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)



Salad tomato sauce This kind of sauce can be packaged into bags by packaging machine for easy transportation and sales. Usually this packaging machine can be called salad tomato sauce packaging machine or automatic sauce liquid packaging machine. Compared with bottled sauce, bag The salad tomato sauce can be carried with you, the sealing is good and it is more hygienic, and the small bag packaging is more convenient.



Ketchup Liquid Packing Machine Doypack Packing Machine Tomato Sauce Pouch 0

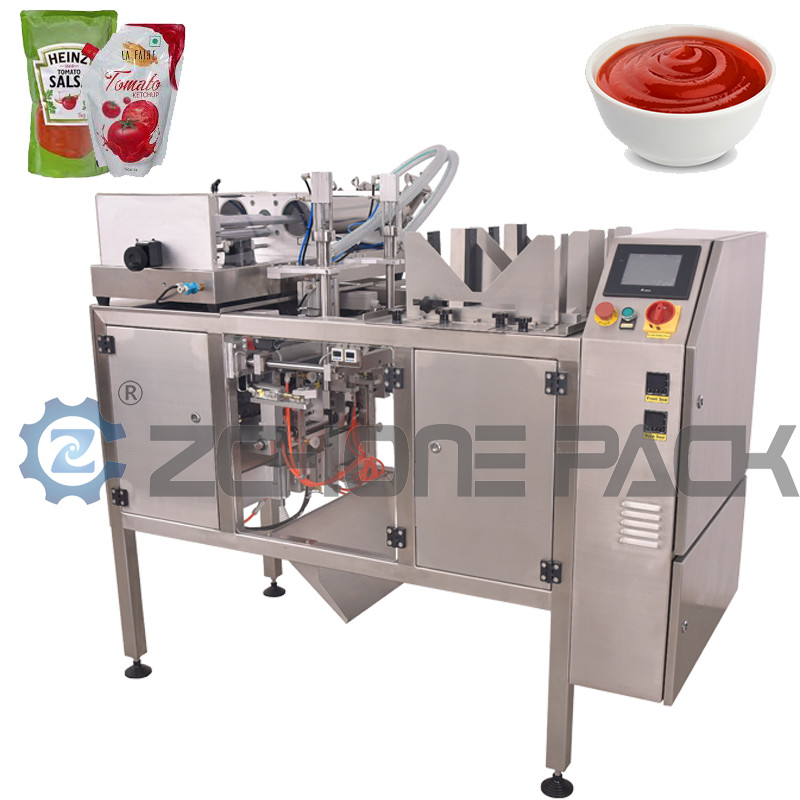

The ketchup packaging machine is composed of a single-station host and a liquid pump. It is suitable for packaging liquid, sauce and paste-like materials; it is suitable for use when the workshop space is small and the product volume is medium; the rotor pump can be configured according to the material properties;



Ketchup Liquid Packing Machine Doypack Packing Machine Tomato Sauce Pouch 1



Paste Pump

The filling machine is used for quantitative dispensing of pharmaceutical liquids, refreshing drinks, cosmetics, etc. The whole machine is made of high quality stainless steel, and the shape is novel and beautiful.



Ketchup Liquid Packing Machine Doypack Packing Machine Tomato Sauce Pouch 2

Liquid Pump

Pneumatic liquid filling machine is driven by electricity and air compressor, is suitable for filling good liquidity products,
such as water, oil, beverage, juice, drink, oil, shampoo, perfume,sauce, honey etc, widely applied to food, commodity,cosmetic,medicine, agriculture etc.



Ketchup Liquid Packing Machine Doypack Packing Machine Tomato Sauce Pouch 3



Features



1.The machine stops running when the safety key interlock switch is pulled out

2.No bag prompting function

3.Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag

4.Positioning (anti-dropping) function of hopper

5.Warning function of cartridge heater fault

6.Warning function of cylinder fault

7.Warning function which air pressure is not up to standard
