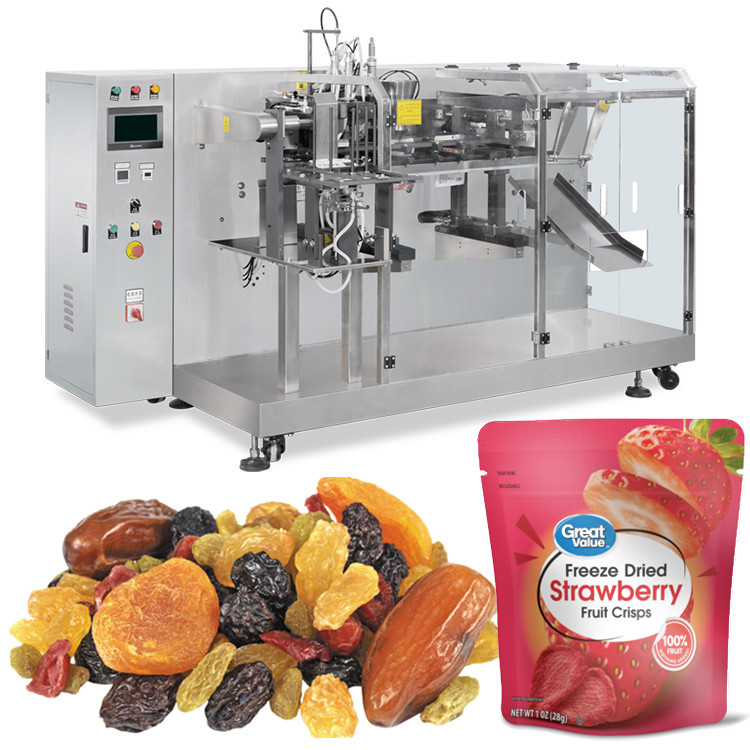

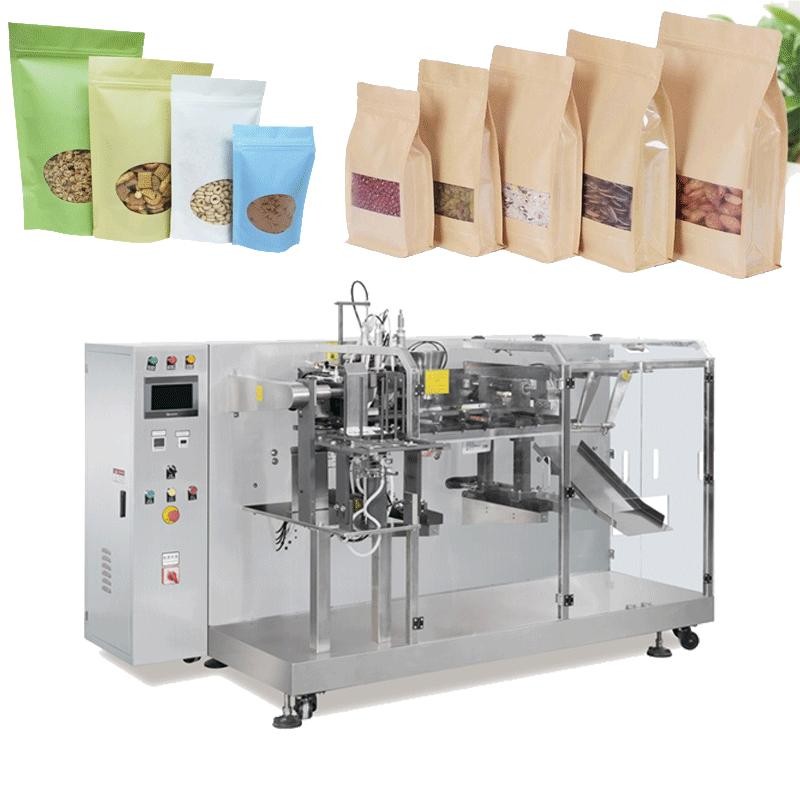

Stand Up Pouch Horizontal Doypack Packing Machine Automatic Multifunctional

  • Stand Up Pouch Horizontal Doypack Packing Machine Automatic Multifunctional
  • Stand Up Pouch Horizontal Doypack Packing Machine Automatic Multifunctional
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-S210
Minimum Order Quantity 1set
Price $12,900~$16,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Packaging Machine Product Name Horizontal Packaging Machine
Warranty 1 Year Key Selling Points Automatic
Machinery Test Report Provided Packaging Type Stand-up Pouch, Bags, Pouch
High Light

Pouch Horizontal Doypack Packing Machine

,

Automatic Horizontal Doypack Packing Machine

,

Multifunctional Stand Up Pouch Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Horizontal packaging machine Stand-up pouch Special-shaped pouch Suction pouch Premade pouch



Model: ZC-S210 ZC-S110S ZC-S140S ZC-S160D ZC-S160S ZC-S160 ZC-S210X ZC-S260 ZC-S320
Packing speed: 15-35bags/min 20-80bags/min 30-90bags/min 20-350bags/min 40-70bags/min 10-50bags/min 10-45bags/min (depending on product weight) 20-40bags/min 20-35bags/min
Total power: 2.5KW 5KW (single host) 5KW (single host) 3.5KW (single host power, additional system power) 5KW(single host) 2.0KW(single host) 2.5KW(single host) 4.5KW(Single host power, supporting system power plus) 4.5KW(Single host power, supporting system power plus)
Package dimensions: 80-160mm/130-320mm (W*L) (the adjustable range of M bag is 50mm) (the width of the packaging bag is slightly different according to the prefabricated bag) 100-230mm/70-110mm(L*W) 100-250mm/90-140mm(L*W) Bag width: 65-85mm
Bag length: 110-230mm
(Special-shaped bag width specifications are customized according to customer specifications and cannot be adjusted)		 80-160*110-230 (bag width*bag length) 100-210mm/110-300mm(W*L) 140-260mm*160-380mm(W*L) 160-320mm*160-380mm(W*L)
Power supply: 380V 380V 380V 380V 380V 380V 380V 380V 380V
Total Weight: 600KG 1800KG 2000KG 800KG 2000KG 800KG 900KG 1200KG 1500KG
Packaging capacity: 20g-1000g (depending on the specific material) 10g-200g 10g-400g 10g-100g 10g-100g 10g-500g (depending on the material) 300g-2kg (depending on the material) 200g-2kg(depending on the product) 200g-3kg(depending on the product)
Air consumption: 0.7m3/min :0.7m3/min 0.7m3/min 0.7m3/min 0.7m3/min 0.7m3/min 0.7m3/min 0.7m3/min 0.7m3/min
Bag Type: M-type bag, M-type stand-up bag and other prefabricated bags Various premade bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. Various premade bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. Various prefabricated bags such as stand-up bags, four-side sealing bags, paper bags, etc. Various prefabricated bags such as stand-up bags, four-side sealing bags, tote bags, paper bags, etc. Four-side sealing bag, three-side sealing bag, special-shaped bag, paper bag and other prefabricated bags Various prefabricated bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc Various prefabricated bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. Various prefabricated bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc.



The horizontal feeding pouch packaging machine is specially designed for the packaging needs of straight nozzle stand-up pouches/slanted nozzle stand-up pouches/special-shaped stand-up pouches. It is used in packaging types such as salt, lubricating oil, beverages (health drinks, such as whortleberry puree, sea blackthorn puree, collagen peptide, etc.), fruit juice, yogurt, sauce, edible oil, and washing and care series. The bag-feeding machine can also be used for inside and outside bag packaging, or bag-type packaging for small bags into large bags. The packaging material can be selected from aluminum foil bags or composite films.







Stand Up Pouch Horizontal Doypack Packing Machine Automatic Multifunctional 0







Horizontal packaging machine features:





1. The metering and packaging system consists of a horizontal bag-feeding packaging machine and a blanking system;

2. It is convenient and simple to put the bag in the bag slot, and it is equipped with an automatic bag pressing device;

3. Equipped with imported pressure sensing device to achieve the effect of no cutting and no sealing, saving packaging bags;

4. Adopt color touch screen, simple operation and multi-functional design;

5. The machine adopts the appearance of stainless 304, and the carbon steel frame part and some accessories are processed with acid-resistant and salt-resistant anti-corrosion treatment layer.

6. Material selection requirements: Most of the accessories are produced by moulding, and the main materials are 304 stainless and alumina.

7. It can be matched with various coding, coding, exhausting and punching systems.



Stand Up Pouch Horizontal Doypack Packing Machine Automatic Multifunctional 1





Native Packaging Type:



01. Solids: packaging of solid materials such as candy, peanuts, green beans, pistachios, and puffed foods.

02. Granules: packaging of beans, crystalline monosodium glutamate, crystalline salt, granular medicines, capsules, seeds, chemical seasonings, chicken essence, melon seeds, pesticides, fertilizers, feed and other granular materials.

03. Powders: packaging of condiments, milk powder, vegetarian powder, grain powder, glucose, cornstarch, flour and other powder materials.

04. Liquids: packaging of liquid materials such as soy sauce, rice vinegar, fruit juice, and beverages.

05. Sauce: Packaging of ketchup, chili sauce, bean paste and other sauce materials.





Process flow of bag packing machine:



1. Stacking of prefabricated bags

2. Flip bag mechanism

3. Bag opening mechanism

4. Air blowing mechanism

5. Primary filling

6. Secondary filling

7. Show bag

8. Top seal

9. Finished product

10. Finished product output



Stand Up Pouch Horizontal Doypack Packing Machine Automatic Multifunctional 2
