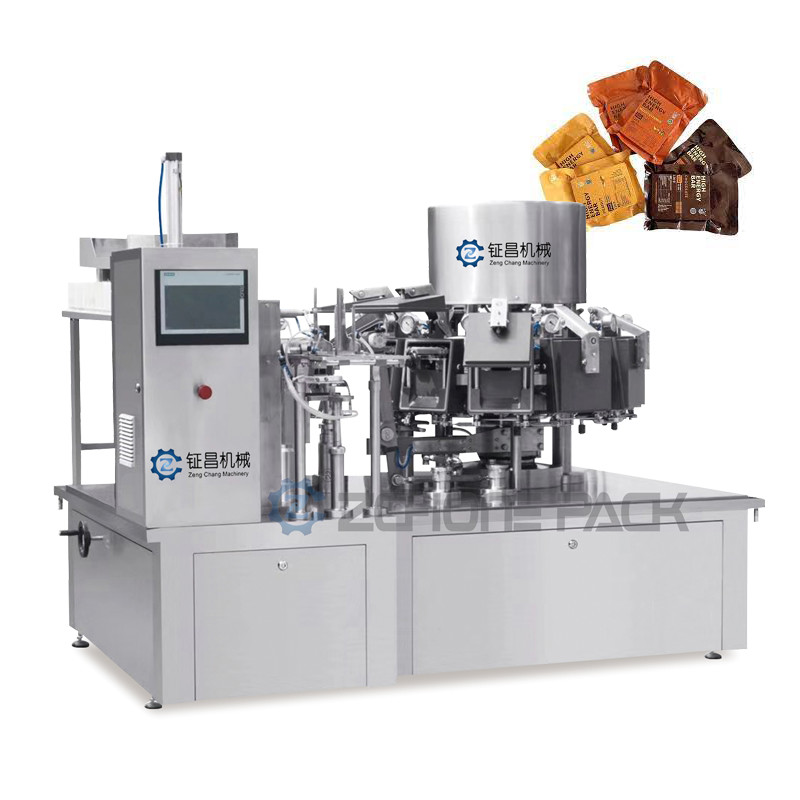

ISO Meat Rotary Vacuum Packaging Machine Meat Seafood Deli Vacuum
Place of Origin | Guangdong,China |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | ZC-ZK120 |
Minimum Order Quantity | 1set |
Price | $27,000.00 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15day |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Vacuum Packing Machine | Brand Name | ZCHONE PACK |
---|---|---|---|
Dimension(L*W*H) | L2100*W1400*H1700 | Voltage | 220V 380V 50/60HZ |
Production Capacity | 50bag/min, 60bag/min | Function | FILLING, Labeling, Sealing |
Highlight | ISO Rotary Vacuum Packaging Machine,Seafood Rotary Vacuum Packaging Machine,Deli Vacuum Wrap Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |

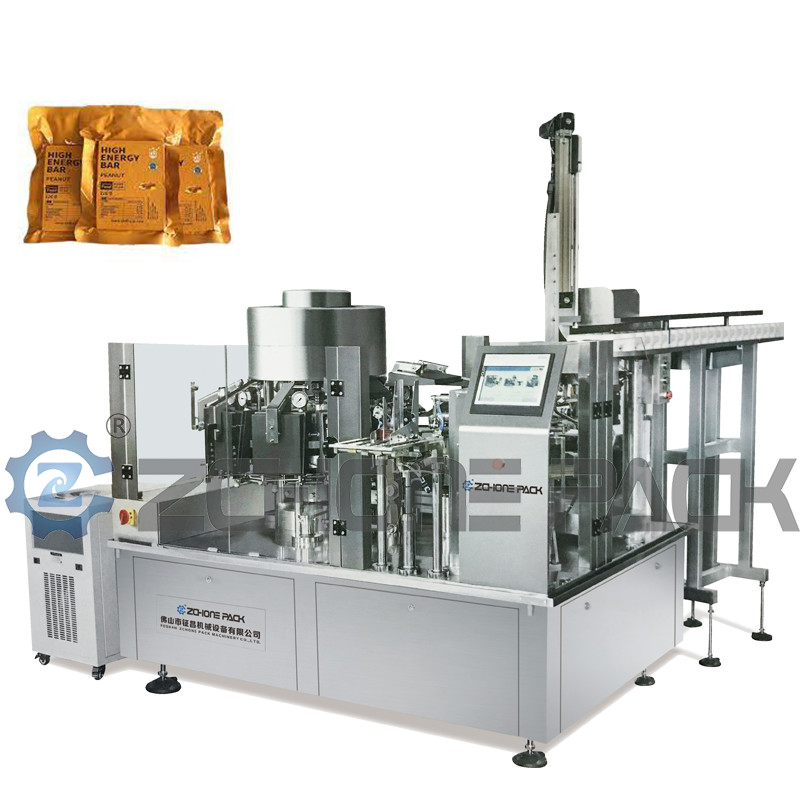

Vacuum Packager Meat Vacuum Rotary Packing Machine Meat Seafood Deli Vacuum
Machine Specification:
Item | ZK120 | ZK160 | ZK200 |
Packing Speed | Max 60 bags / min | ||
Bag size | L80-180mm | L80-240mm | L150-300mm |
W50-120mm | W80-160mm | W120-200mm | |
Bag Type | Alumiem foil bag, Four-side sealed bag, Paper bag, Laminated bag, etc. | ||
Weighing Range | 10g~200g | 15~500g | 20g~1kg |
Measurement Accuracy | ≤±0.5 ~ 1.0%,depend on the measurement equipment and materials | ||
Maximem bag width | 120mm | 160mm | 200mm |
Gas consumption | 0.8Mpa 0.3m³/min | ||
Total power/ voltage | 10kw 380v 50/60hz | 10kw 380v 50/60hz | 10kw 380v 50/60hz |
Air compressor | Not less than 1 CBM | ||
Dimension |
L2100*W1400 *H1700mm |
L2500*W1550 *H1700mm |
L2600*W1900* H1700mm |
Machine Weight | 2000kg | 2200kg | 3000kg |
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
Western-style ham is a scientific method, using equipment to marinate the meat, taste it, steam it, shape it, and package it; then it enters the supermarket and enters the dining table of thousands of households. Similarly, volcanic stone sausages, luncheon meat, and bacon are all made in the same way as Western-style ham.
Meat like Western-style ham must be packaged for sale. Vacuum packaging can prolong the shelf life of the meat and facilitate storage. The vacuum packaging machine for bags is fed by a manipulator, and the mechanized packaging should be more beautiful in terms of product appearance and packaging;
The automatic bag feeding vacuum packaging machine is composed of a bagging rotary system and a vacuum sealing rotary system. The vacuum container system is a constant speed time interval rotational movement. The manual operation is intuitive and convenient; the bag change is convenient and quick; after inputting the task suggestion, the measurement and packaging are fully automatic and unattended; the equipment is equipped with a detection system, without feeding or sealing; the sealing adopts the method of instant heating and rapid heating to make the packaging flat and durable.
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q4:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
