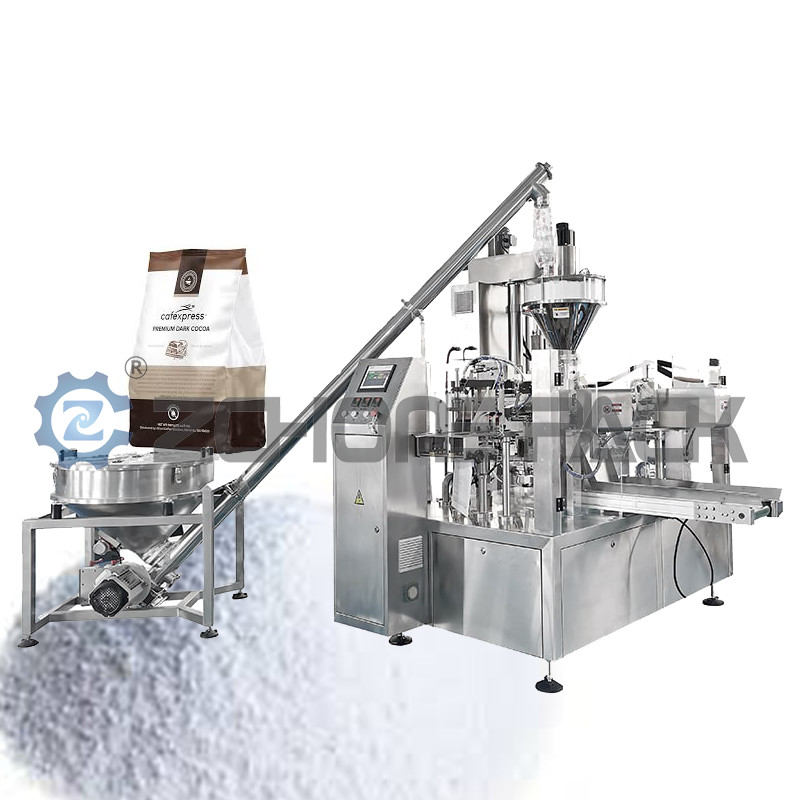

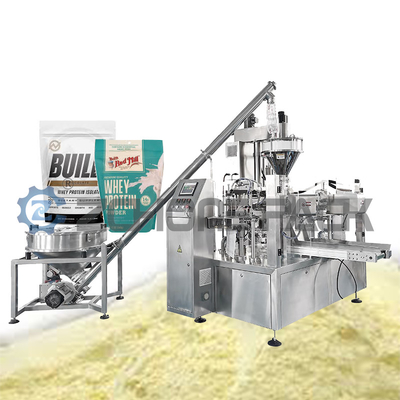

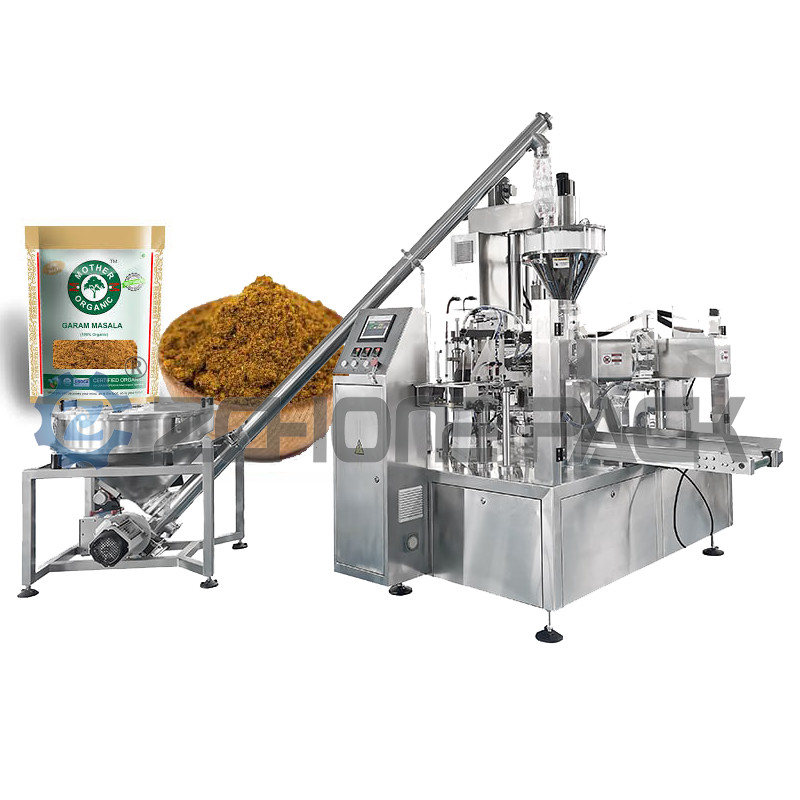

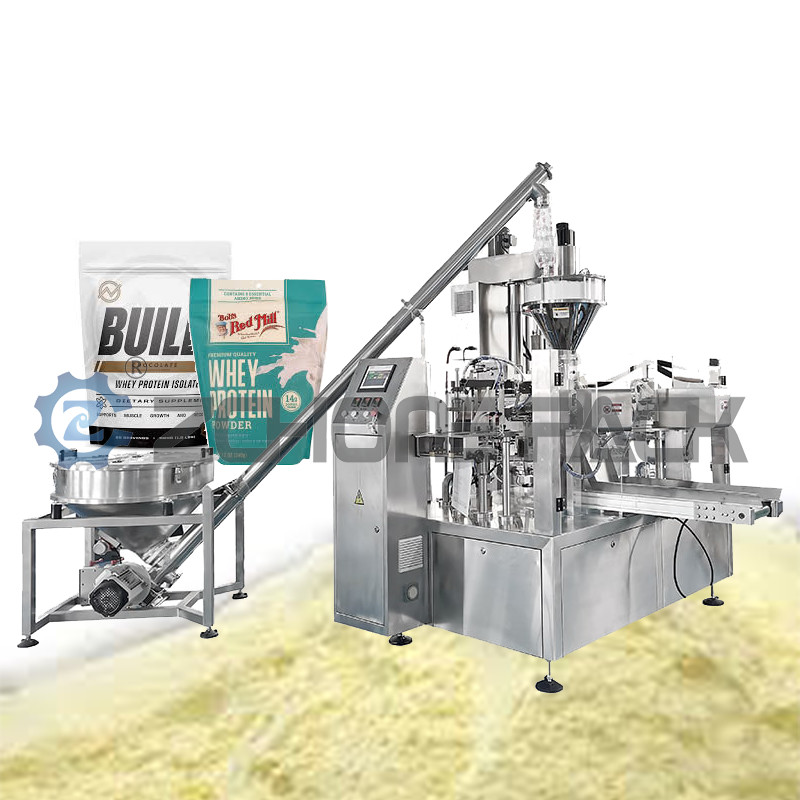

Automatic Powder Pre-made Bag Packaging Machine Multi-Station
An automatic powder pre-made bag packaging machine is a type of equipment used in the packaging industry to automatically fill and seal pre-made bags with powdered products. This machine is designed to streamline the packaging process by automating tasks such as bag feeding, filling, and sealing.
Here are the key components and functions typically found in an automatic powder pre-made bag packaging machine:
Bag Feeding System: This system consists of a bag magazine or feeder that holds a stack of pre-made bags. The bags are individually picked and fed into the packaging machine for filling.
Powder Filling System: The powder filling system measures and dispenses a specific amount of powdered product into each bag. It can use various methods such as auger filling, volumetric filling, or weigh filling, depending on the characteristics of the powder.
Sealing System: Once the bags are filled with the powder, the sealing system closes and seals the bags to ensure product containment. The sealing method can be heat sealing, ultrasonic sealing, or other suitable techniques.
Control Panel: The machine is equipped with a control panel that allows the operator to set parameters such as bag length, filling amount, and sealing time. It also provides an interface for monitoring and adjusting the machine's operation.
Conveyor System: A conveyor system is often incorporated to transport the bags through different stages of the packaging process, such as bag feeding, filling, and sealing. It ensures a smooth and continuous flow of bags.
Safety Features: Automatic packaging machines typically have safety features to protect operators and prevent accidents. These features can include emergency stop buttons, safety guards, and sensors to detect abnormalities or malfunctions.
Machine Specification:
Item | ZC-8200 | ZC-8250 | ZC-8300 |
Packing Speed | Max 60 bags / min | ||
Bag size | L100-300mm | L100-350mm | L150-450mm |
W70-200mm | W130-250mm | W200-300mm | |
Bag Type | Pre-made bags, Stand up bag, Three or Four-side sealed bag, Special-shaped bag | ||
Weighing Range | 10g~1kg | 10~2kg | 10g~3kg |
Measurement Accuracy | ≤±0.5 ~ 1.0%,depend on the measurement equipment and materials | ||
Maximem bag width | 200mm | 250mm | 300mm |
Gas consumption | 0.8Mpa 0.3m³/min | ||
Total power/ voltage | 1.5kw 380v 50/60hz | 1.8kw 380v 50/60hz | 2kw 380v 50/60hz |
Air compressor | Not less than 1 CBM | ||
Dimension | L1900*W1400*H1450mm | L2000*W1500*H1550 | |
Machine Weight | 1300kg | 1500kg |
(We can provide you with exclusive customized services according to your needs!)
