Pillow Bedroom Packaging Machine Pillow Bag Bread Fruit Mooncake Ice Cream

  • Pillow Bedroom Packaging Machine Pillow Bag Bread Fruit Mooncake Ice Cream
  • Pillow Bedroom Packaging Machine Pillow Bag Bread Fruit Mooncake Ice Cream
  • Pillow Bedroom Packaging Machine Pillow Bag Bread Fruit Mooncake Ice Cream
  • Pillow Bedroom Packaging Machine Pillow Bag Bread Fruit Mooncake Ice Cream
Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-350
Minimum Order Quantity 1set
Price $4,890.00
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Weight (KG) 900
Application APPAREL, Beverage, Chemical, Commodity, Machinery & Hardware, Textiles Dimension(L*W*H) (L)4020(W)770X(H)1450mm
Applicable Industries Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Food & Beverage Shops Function Sealing, Wrapping, FILLING, Labeling
Voltage 220V 50/60Hz Core Components Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Production Capacity 50bag/min Warranty Of Core Components 1 Year
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Pillow Bedroom Packaging Machine Pillow Bag Bread Fruit Mooncake Ice Cream



Pillow packaging machine is a commonly used packaging equipment used to package products in pillow-shaped packages. It is usually used for the packaging of small products in the food, pharmaceutical, cosmetics and other industries, such as candies, biscuits, tablets, etc.



The working principle of the pillow packaging machine is to feed the product into the working area of the packaging machine through a conveyor belt or vibrating plate. During this process, the packaging machine automatically unwinds the packaging film from the roll and, through a series of mechanical operations, places the product on top of the packaging film. The packaging machine then folds and seals the packaging film from both sides to form a pillow-shaped packaging bag. Finally, the packaging film is cut into independent packaging bags through a cutting device to complete the entire packaging process.



The pillow packaging machine is efficient and fast, and can realize automated packaging process and improve production efficiency. It can also be adjusted according to the size and shape of the product to suit different packaging needs. In addition, the pillow packaging machine can also be equipped with some additional functions, such as date printing, label attachment, etc., to meet the special requirements of the product.



In short, pillow packaging machine is a kind of packaging equipment widely used in food, medicine, cosmetics and other industries. It can complete product packaging efficiently and quickly, improving production efficiency and product packaging quality.



Machine Specification:

Type 250 250(3Cutters) 250(4Cutters) 320 350 450 600
Film width Max.250mm Max.180mm Max.320mm Max.350mm Max.450mm Max.600mm
Bag length 65-190或120-280mm 50-115mm 45-90mm 65-190或120-280mm 90-220或150-330mm 130-450mm 120-450mm
Bag width 30-110mm 30-80mm Max.40mm 50-160mm

60-200

mm

50-200

mm
Product height Max.40mm Max.35mm

Max.320

mm

 Max.60mm

Max.80

mm

 10-80mm
Film roll diameter Max.320mm Max.320 mm Max.450mm Max.320 mm
Packaging rate 40-230bag/min 60-330bag/min 40-230bag/min 40-230bag/min 30-180bag/min 20-80bag/min
Power 220V 50/60Hz 2.4kw 220V 50/60/Hz 2.8kw 220V 50/60Hz 2.6kw 220V 50/60Hz 2.4kw 220V 50/60Hz 2.6kw 220V 50/60Hz 3.6kw
Machine size (L)3370*(W)670*(H)1450mm (L)3370*(W)720*(H)1450mm (L)4020*(W)770*(H)1450mm (L)4020*(W)820*(H)1450mm (L)4380*(W)970*(H)1500mm
Machine weight 800kg 900kg 960kg 1160kg
Remarks Optional air filling devlce

(We can provide you with exclusive customized services according to your needs!)

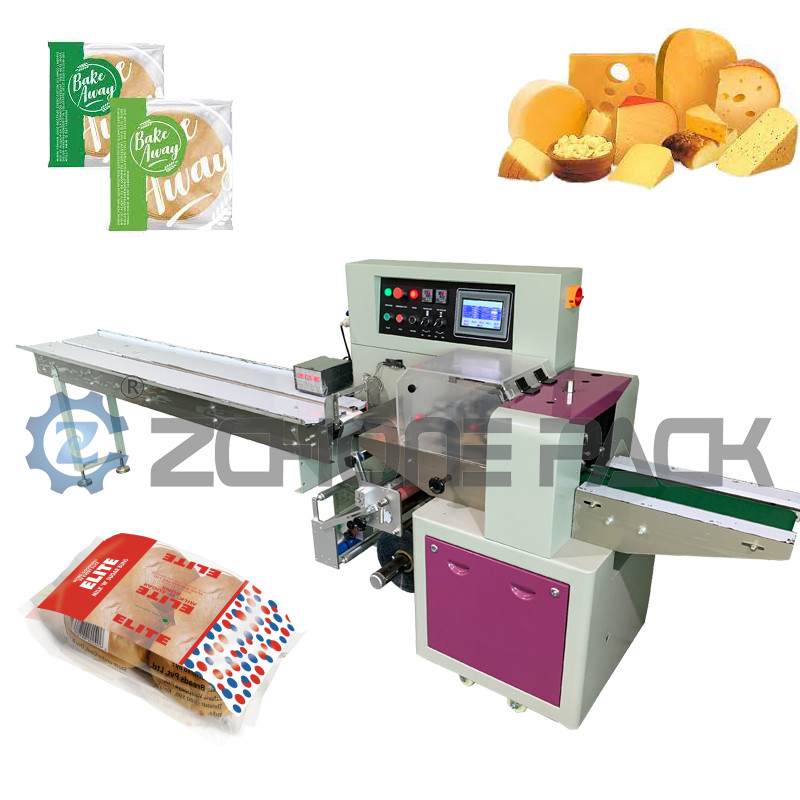

Pillow Bedroom Packaging Machine Pillow Bag Bread Fruit Mooncake Ice Cream 0

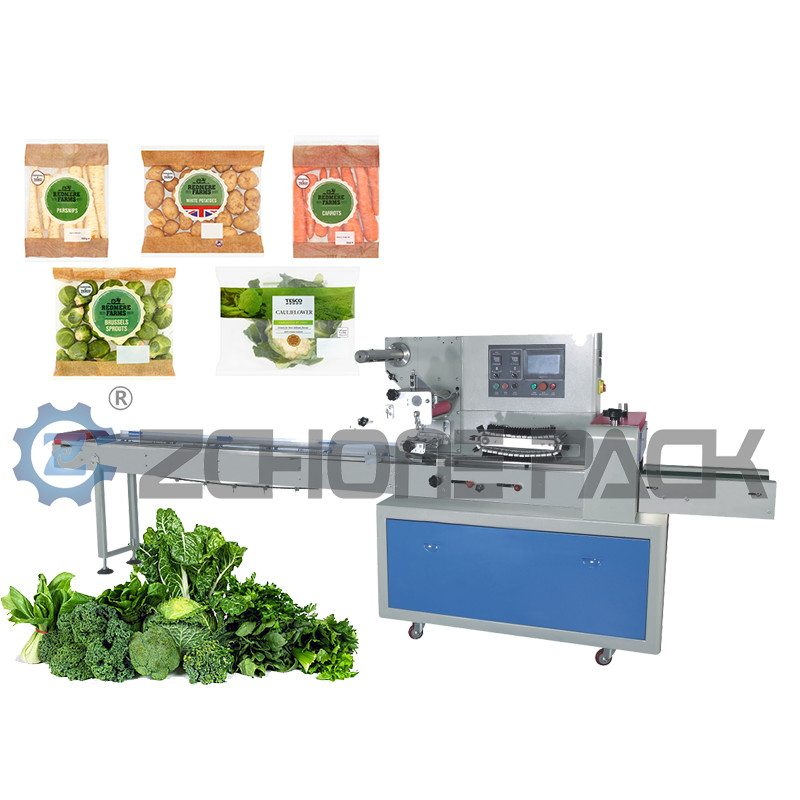

Pillow Bedroom Packaging Machine Pillow Bag Bread Fruit Mooncake Ice Cream 1

application:

It is suitable for the packaging of various conventional items such as masks, biscuits, pies, chocolate, bread, instant noodles, moon cakes, medicines, daily necessities, industrial parts, cartons, trays, etc.

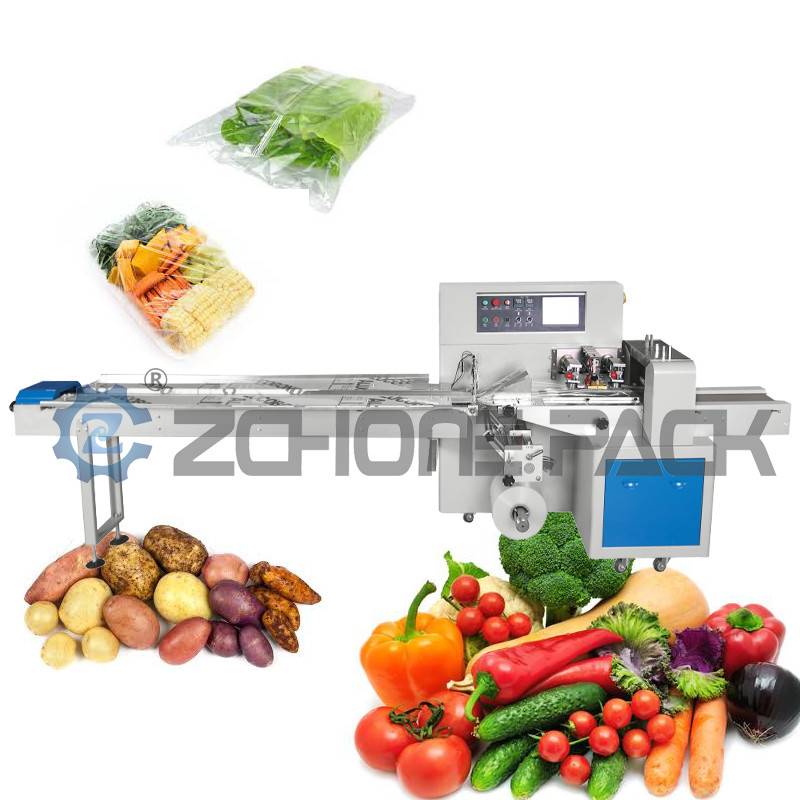

Pillow Bedroom Packaging Machine Pillow Bag Bread Fruit Mooncake Ice Cream 2

After-sale service:

1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.

2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.

3. SUNCHON engineers and technical engineers can provide machine service in your country.

4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.

5.We will provide technical support lifelong and provide accessories persistently.
