Vertical Ice Cube Roll Film Back Sealed Bag Four-Side Sealed Bag Packaging Machine

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-VS32
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Warranty 12 Months
Application Food,Chemical,Commodity,Medical,Machinery & Hardware Packaging Type Bags,Pouch
Highlight

Four-Side Sealed Bag Packaging Machine

,

Vertical Bag Packaging Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

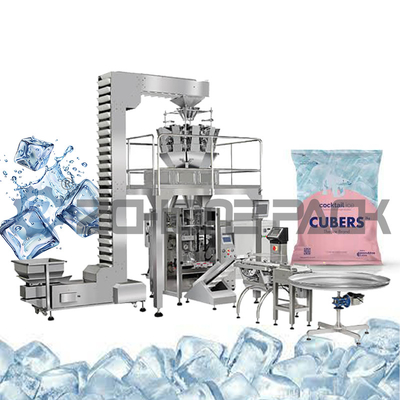

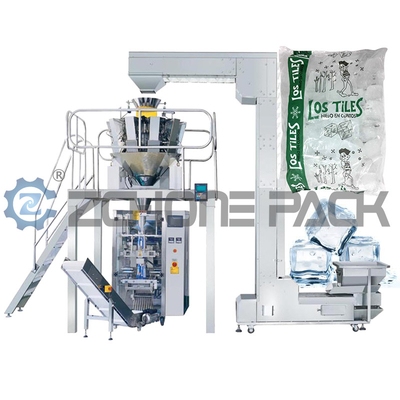

Vertical Ice Cube Roll Film Back Sealed Bag Four-Side Sealed Bag Packaging Machine



The vertical ice cube packaging machine roll film bag making and packaging machine is an efficient and automated packaging equipment designed for the packaging of ice cubes and other products. It adopts advanced roll film bag making technology, which can quickly and accurately pack ice cubes in plastic bags to ensure the cleanliness and long-term preservation of the products.



Main features:

Efficient automation: The vertical ice cube packaging machine adopts automated operation, which can efficiently complete the packaging process, save labor costs and improve production efficiency.



Precise packaging: Through roll film bag making technology, the packaging size and shape can be accurately controlled to ensure that the packaging effect of each ice cube is consistent.



Flexible and diverse: It is suitable for ice cube packaging of different specifications and shapes, and can be adjusted according to needs, with strong applicability.



Easy to operate: The equipment operation is simple and easy to understand, and the operator only needs simple training to operate proficiently, which reduces the threshold for use.



Energy saving and environmental protection: The use of advanced packaging technology reduces the generation of waste and meets the requirements of energy saving and environmental protection.



Application field:

Ice cube production enterprises: It is suitable for ice cube production enterprises of all sizes to improve packaging efficiency and ensure product quality.



Machine Specification:

 Packing Speed

 5 - 40 bags / min
 Pouch Size (mm)  L100 - 250, W30 - 160
 Max. Film Width (mm)  320
 Pouch Thickness (mm)  0.04 - 0.09
 Filling Range  10 - 100g
 Pouch Material  BOPP / CPP, PET / AL / PE etc
 Compress Air  0.8MPa, 0.5m3/min
 Power  4.5KW
 Voltage  220v 50/60Hz
 Unit Size (mm)  1350*1120*1250
 Unit Weight (KG)  500
 Pouch Type  4side-seal bag (Option:3 side-seal bag)

(We can provide you with exclusive customized services according to your needs!)



Vertical Ice Cube Roll Film Back Sealed Bag Four-Side Sealed Bag Packaging Machine 0Vertical Ice Cube Roll Film Back Sealed Bag Four-Side Sealed Bag Packaging Machine 1



After-sale service:

1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.

2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.

3. SUNCHON engineers and technical engineers can provide machine service in your country.

4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.

5.We will provide technical support lifelong and provide accessories persistently.
