Back-Sealed Bag Pillow Bag Roll Film Bag Vertical Powder Packaging Machine

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-VP42
Minimum Order Quantity 1set
Price $15,900~$25,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Vertical Packing Machine Packaging Type Bags,Pouch
Application Food,Chemical,Commodity,Medical,Machinery & Hardware Automatic Grade Automatic
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

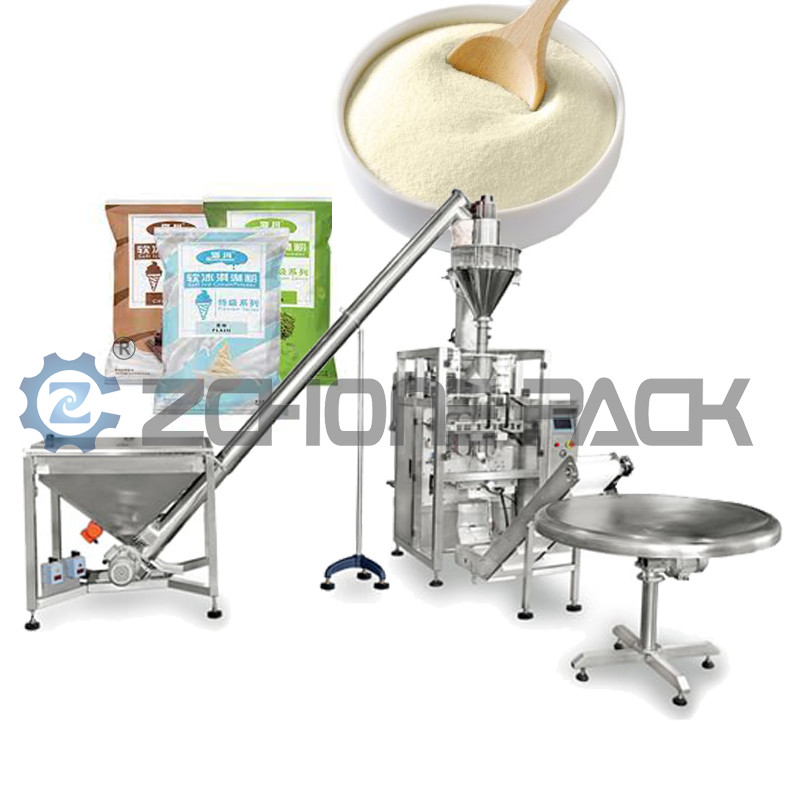

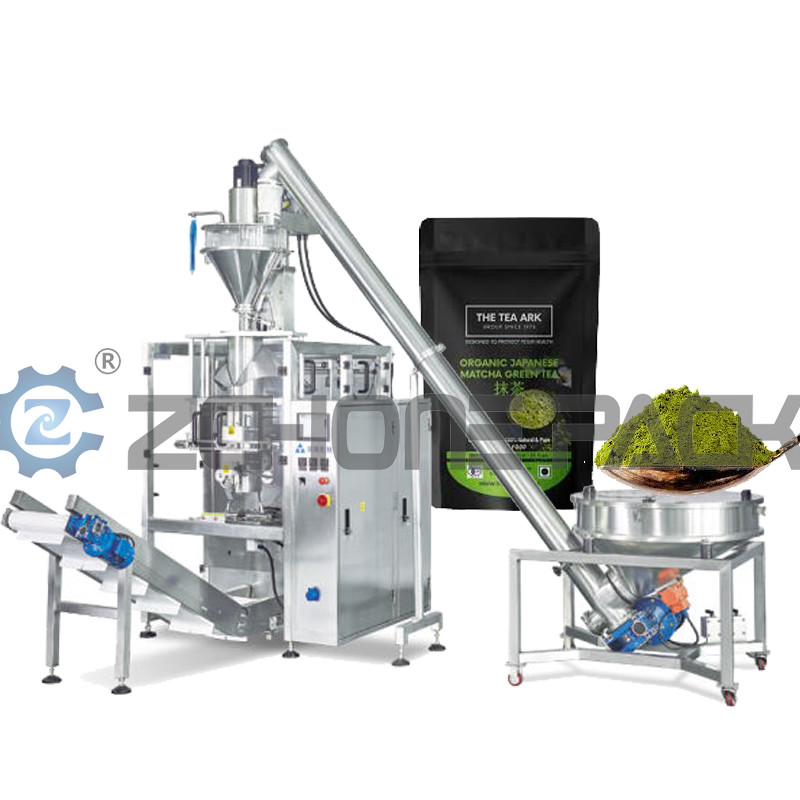

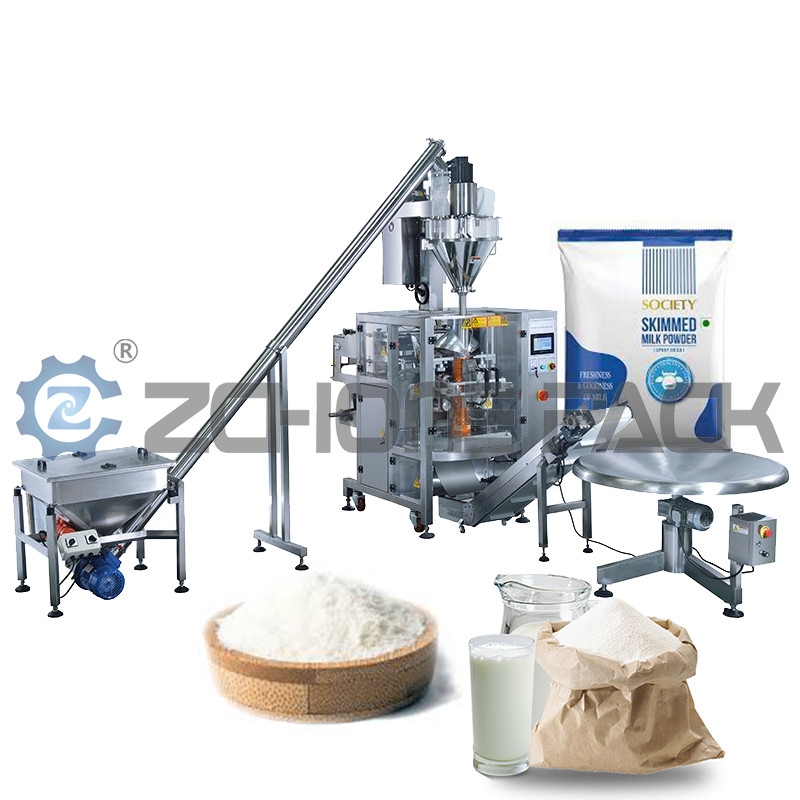

Back-Sealed Bag Pillow Bag Roll Film Bag Vertical Powder Packaging Machine

Powdered products such as milk powder and flour are common commodities in daily life and need to be packaged during the production process. In order to improve production efficiency and packaging quality, the milk powder and flour pillow bag back-sealed bag vertical packaging machine came into being.



Product features:

Versatility: This packaging machine is suitable for the packaging of powdered products such as milk powder and flour. It has a variety of packaging methods, such as pillow bags, back-sealed bags and vertical packaging to meet different needs.



High efficiency: It has a high degree of automation and can realize a series of operations such as automatic metering, counting, packaging, and sealing, greatly improving production efficiency.



Precise packaging: The precise metering system and intelligent control system ensure that the weight and size of each bag of products are consistent, ensuring product quality.



Easy to operate: The operation is simple. You only need to set the parameters, and the machine can automatically complete various operations, reducing labor costs.



Space saving: The vertical packaging design saves space, is suitable for various production sites, and has flexible layout.



Scope of application:
Food industry: It is suitable for the packaging of powdered foods such as milk powder, flour, and starch.



Cosmetics industry: It can be used for the packaging of powdered cosmetics such as foundation and honey powder.



Pharmaceutical industry: It is suitable for the packaging of medicinal powder, medical powder and other products.



Technical parameters:
Packaging speed: It can reach dozens to hundreds of bags per minute according to different models.


Packaging range: It is suitable for bagged products of different specifications.



Control system: PLC control system, easy to operate.



The vertical packaging machine for milk powder and flour pillow bag back seal bag has become an ideal choice for food, cosmetics, medicine and other industries through its high efficiency, precise packaging method and versatility, providing convenience and guarantee for the production of enterprises.



Machine Specification:



Model ZC--VP32 ZC-VP42 ZC-VP52 ZC-VP62 ZC-VP730
Packing Speed 10-50 bags/min 10-50 bag/min 10-50 bag/min 5~50 bag/min 5----40 bags/min
Bag Size (L) 50-190mm (W) 50-150mm (L) 80-320mm (W) 70-200 mm (L) 80-320mm (W) 70-200 mm (L)120-400mm (W)110-300mm (L)100-500mm(W) 80-350mm
Bag Making Form Pillow type back seal bag (roll film for packaging material, automatic bag making by machine is upper sealing, lower sealing and back sealing.) Pillow bag (optional: stand-up bag, prong bag, punch bag)) Roll film for packaging materials, back seal bag
Maximum Packaging Film Width 320mm 420mm 420mm Max 2500ml 730mm
Measurement Range 500ml 1000ml 1000ml 620mm Max2000ML
Membrane Thickness 0.04-0.12mm 0.04-0.10mm 0.04-0.10mm 0.04-0.14mm 0.04-0.15mm
Complete Set of Air Consumption 0.8Mpa 0.5m3/min 0.8Mpa 0.3m³/分 0.8Mpa 0.3m³/分 0.8Mpa 0.5m3/min 0.8Mpa 0.7m3/min
Total Power/Voltage 2.5KW/220V 50Hz 2.7KW/220V 50Hz 2.7KW/220V 50Hz 4.2KW/220V 50Hz 7.0KW 380V 50Hz
Dimensions (L)1350*(W)820*(H)1150mm L1480*W960*H1400mm L1480*W960*H1400mm L1964*W1240*H1960mm
Switchboard Weight 380kg 450kg 450kg 450kg 680KG

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
