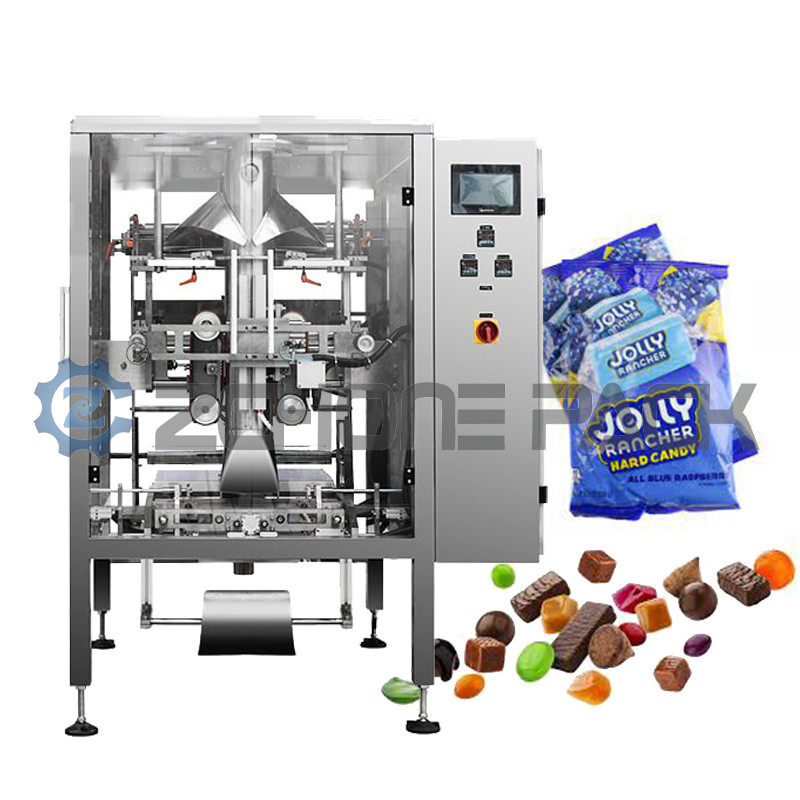

CE Vertical Film Packaging Machine for Granular Solid Food

CE Vertical Film Packaging Machine for Granular Solid Food

The bagged vertical biscuit packaging machine is an automated packaging equipment specially used for biscuit products. It adopts a vertical structure and can efficiently complete the processes of metering, bag making, filling, sealing, cutting, etc.

1. Equipment features

Vertical design: small footprint, suitable for occasions with limited production line space.

High degree of automation: full automation from metering to packaging, reducing manual intervention.

Multi-specification adaptation: the packaging size can be adjusted by replacing the mold (such as long, square, and round biscuits).

Accurate metering: volumetric or weighing metering is used to ensure the consistent weight of each bag.

Fresh-keeping performance: optional nitrogen filling or vacuum function can be used to extend the shelf life of biscuits.

High stability: servo motor/PLC control, stable operation, and low failure rate.

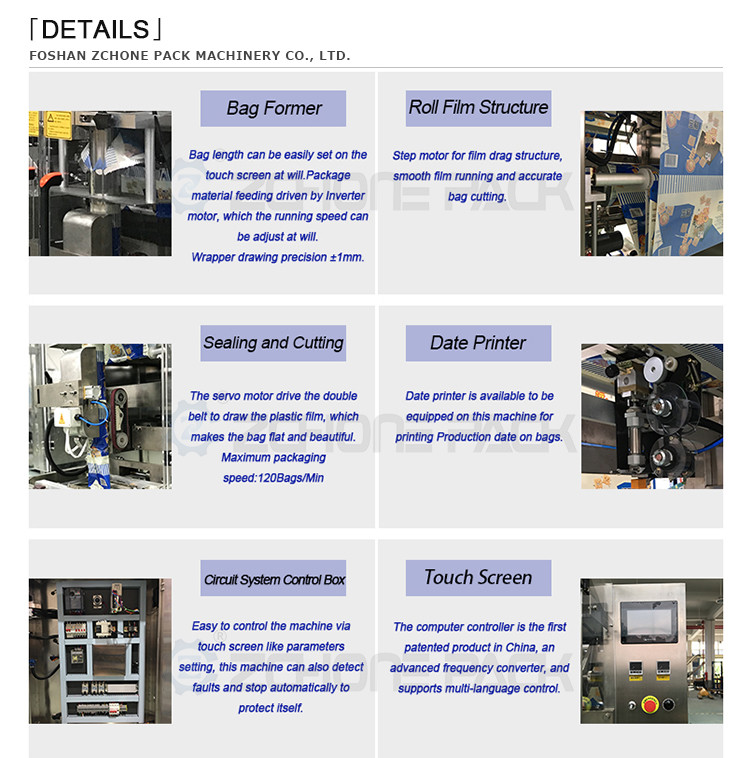

2. Main structural components

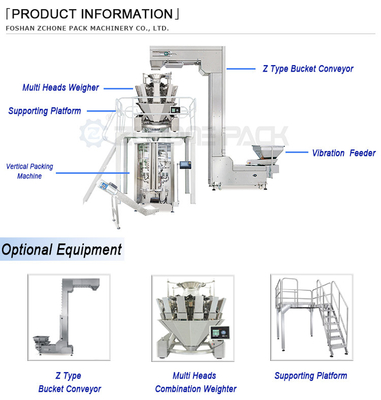

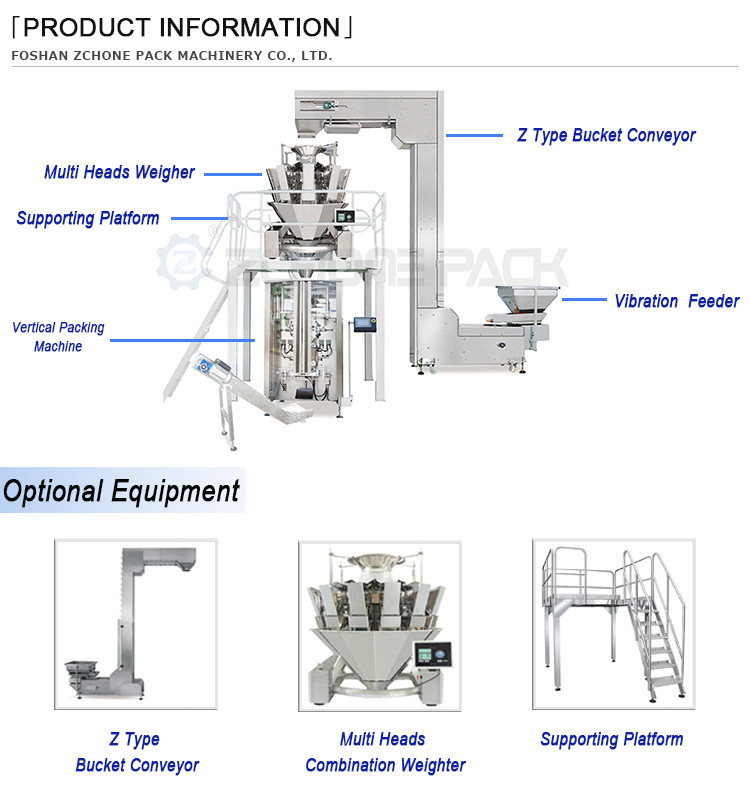

Feeding system: The vibrating plate or conveyor belt feeds the biscuits into the hopper in an orderly manner.

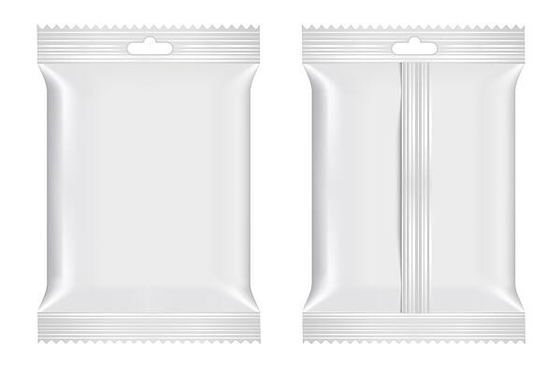

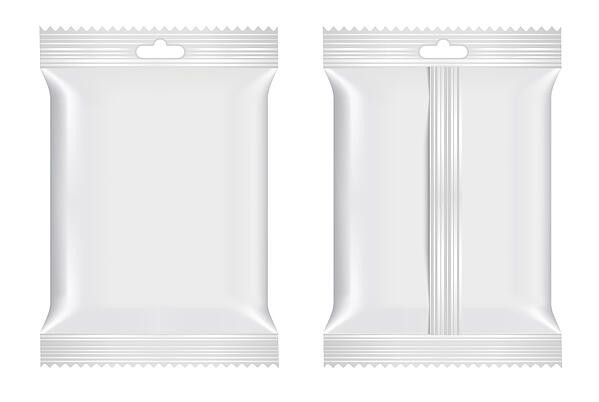

Bag making device: The roll film is automatically formed into a vertical bag (three-side seal or back seal).

Filling mechanism: fill the biscuits into the bag through screw metering or measuring cup.

Sealing system: heat sealing knife seals the bag mouth at high temperature, supports easy tear design.

Cutting unit: cut finished product packaging, optional continuous or intermittent operation.

Control system: touch screen operation, adjustable parameters (temperature, speed, bag length, etc.).

3. Applicable product range

Biscuit type: crisp biscuits, sandwich biscuits, wafers, cookies, etc.

Packaging form: single bag, multi-pack (need to match cartoning machine), gift packing.

4. Technical parameter reference

Packing speed: 30-120 bags/minute (depending on the size and complexity of the biscuits).

Packaging size: length 50-200mm, width 30-100mm (customizable).

Film roll width: 200-400mm (commonly used PET/AL/PE composite materials).

Power supply: 3-5kW (depending on the model).

5. Maintenance points

Daily cleaning: remove biscuit crumbs to prevent clogging of sensors.

Regular lubrication: add food-grade lubricant to transmission parts.

Heat seal inspection: replace the sealing strip regularly to avoid loose sealing.

Machine Specification:

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)

Features:

Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.

Use famous brand electric and pneumatic components, stable and long life circle.

Use superior mechanical components, reduce the wear out loss.

Easy to install film, auto correcting the excursion of the film.

Apply advanced operating system, easy to use and reprogrammable. To be used on Zchone High quality machine, it makes your packing work easily and efficiently.

Application:

Suitable for many kinds of measuring equipment, and package different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc. which shape is roll, slice and granule.
