Automatic Chili Powder Packaging Machine 60 Bags/Min
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Automatic Powder Packaging Machine | AfterWarranty Service1 | Video Technical Support |
|---|---|---|---|
| AfterWarranty Service2 | Online Support | AfterWarranty Service3 | Spare Parts |
| AfterWarranty Service4 | Field Maintenance And Repair Service | LocalService Location5 | None |
| Highlight | automatic chili powder packaging machine,high-speed powder packing machine,60 bags per minute packaging machine |
||
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

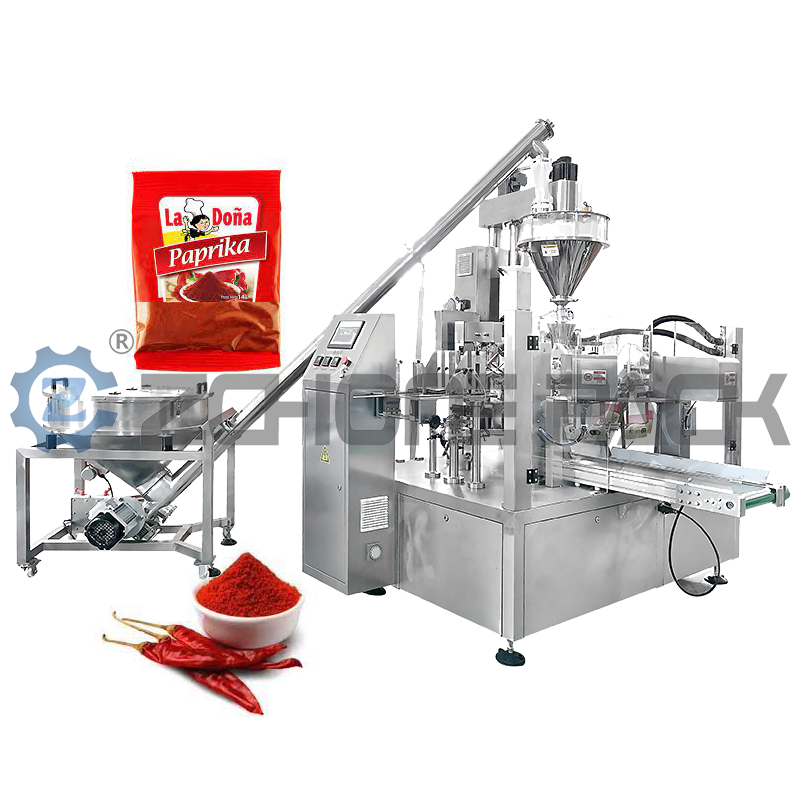

Chili powder seasoning powder bag-feeding automatic packaging machine
The eight-station bag-feeding chili powder packaging machine is an efficient and fully automatic packaging equipment designed for powdered materials such as chili powder and suitable for medium and large-scale production.
1. Equipment Overview

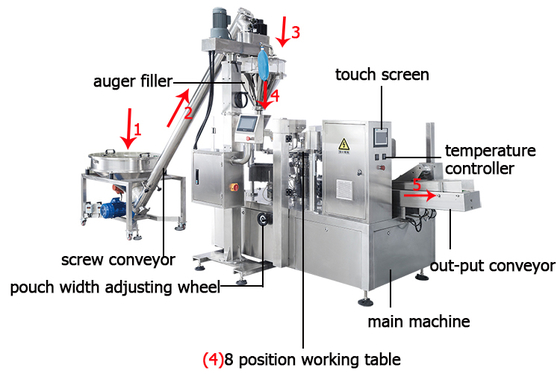

Working Principle: Through the rotating eight-station turntable, the processes of bag taking, bag opening, metering and filling, exhaust, sealing, coding, testing, and finished product output are completed in sequence.
Core advantages:
High efficiency: 8 stations work synchronously, and the speed can reach 40-60 bags/minute (depending on the packaging specifications).
High precision: servo motor control + screw metering, error ≤±1%.
Wide adaptability: Can handle a variety of bag types (such as back-sealed bags, self-supporting bags, four-side sealed bags).
2. Special design for chili powder
Dust prevention system:
Fully enclosed silo + negative pressure dust suction device.
A silicone dust curtain is installed at the screw feed port.
Anti-stick treatment:
Parts in contact with chili powder (such as metering screw) are made of mirror stainless steel or Teflon coating.
Anti-static measures:
Grounding design + ion wind rod (reduce powder adhesion to packaging film).
3. Selection considerations
Material property adaptation:
If the chili powder contains oil or lumps, a vibration arch breaking device needs to be added.
Packaging material:
It is recommended to use anti-static composite film (such as PET/AL/PE) or aluminum foil bag.
Extended function:
Optional nitrogen filling and preservation module (replace oxygen in the bag).
4. Maintenance and troubleshooting
Daily maintenance:
Clean the metering screw and suction cup every shift.
Check the wear of the heat seal strip every week.
Common faults:
Bag opening failure: Check the vacuum degree or compressed air pressure.
Weak seal: Adjust the temperature/pressure, or replace the packaging material.
5. Application scenarios
Applicable products: chili powder, pepper powder, five-spice powder and other seasonings, and can also be expanded to powders such as milk powder and protein powder.
Machine Specification:
| Item | ZC-8200 | ZC-8250 | ZC-8300 |
| Packing Speed | Max 60 bags / min | ||
| Bag size | L100-300mm | L100-350mm | L150-450mm |
| W70-200mm | W130-250mm | W200-300mm | |
| Bag Type | Pre-made bags, Stand up bag, Three or Four-side sealed bag, Special-shaped bag | ||
| Weighing Range | 10g~1kg | 10~2kg | 10g~3kg |
| Measurement Accuracy | ≤±0.5 ~ 1.0%,depend on the measurement equipment and materials | ||
| Maximem bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m³/min | ||
| Total power/ voltage | 1.5kw 380v 50/60hz | 1.8kw 380v 50/60hz | 2kw 380v 50/60hz |
| Air compressor | Not less than 1 CBM | ||
| Dimension | L1900*W1400*H1450mm | L2000*W1500*H1550 | |
| Machine Weight | 1300kg | 1500kg | |
(We can provide you with exclusive customized services according to your needs!)
