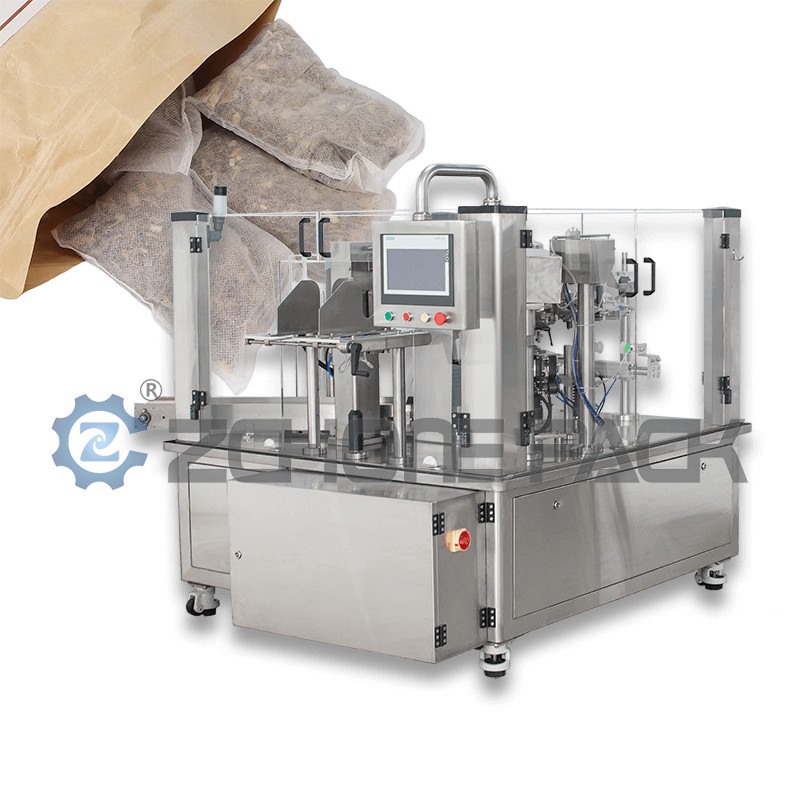

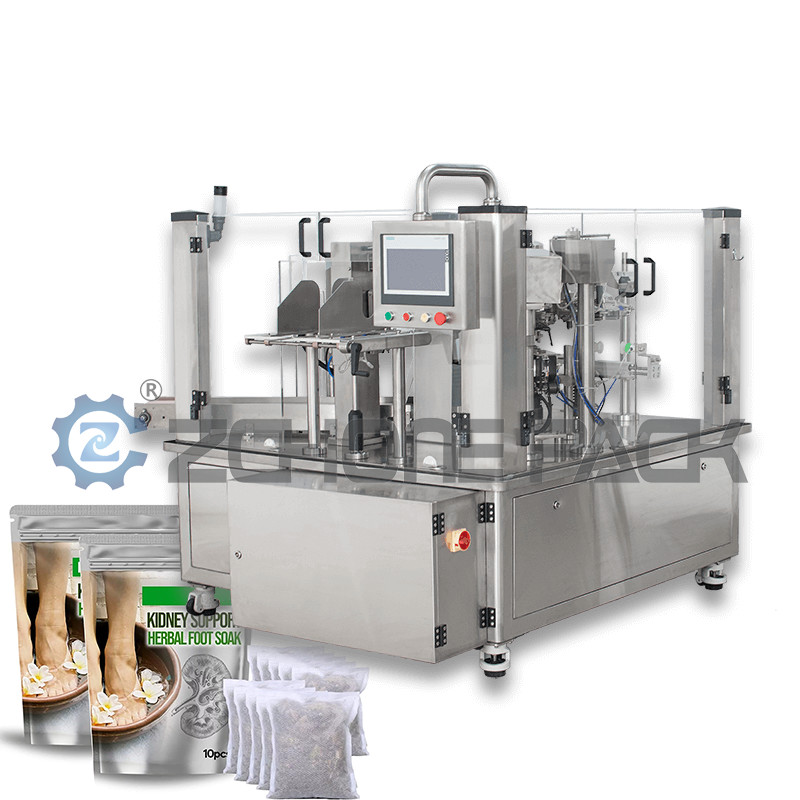

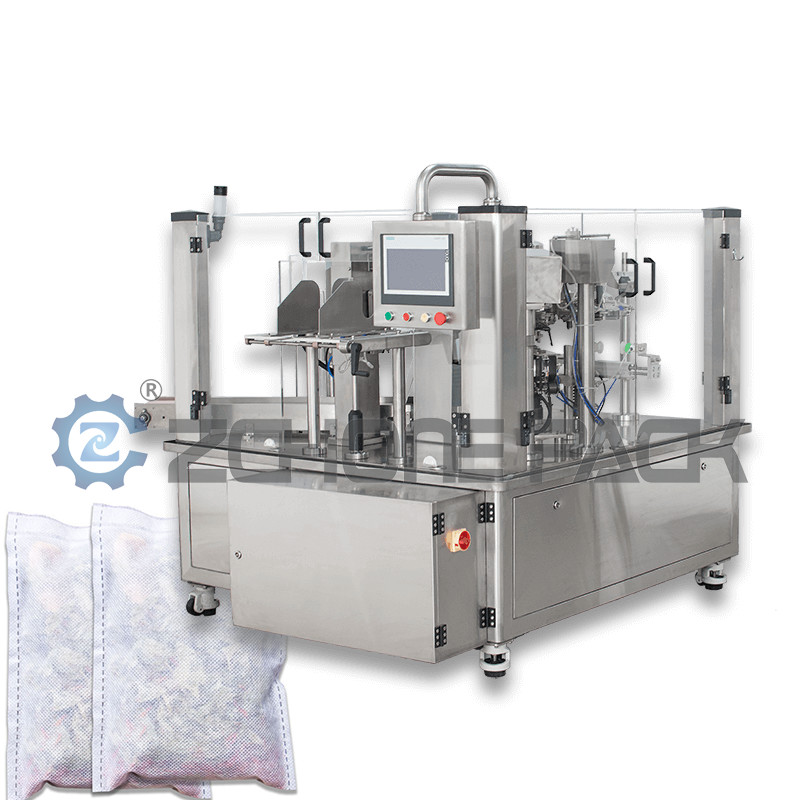

8 Station Zongzi Granule Packaging Machine With Automatic Vacuum Pumping System

  • 8 Station Zongzi Granule Packaging Machine With Automatic Vacuum Pumping System
  • 8 Station Zongzi Granule Packaging Machine With Automatic Vacuum Pumping System
  • 8 Station Zongzi Granule Packaging Machine With Automatic Vacuum Pumping System
  • 8 Station Zongzi Granule Packaging Machine With Automatic Vacuum Pumping System
  • 8 Station Zongzi Granule Packaging Machine With Automatic Vacuum Pumping System
Place of Origin guangdong
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number Multi-Function Packaging Machine
Minimum Order Quantity 1sets
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Driven Type Pneumatic
Place Of Origin Guangdong, China Warranty Of Core Components 1 Year
Main Function Weighing Filling Sealing Applicable Industries Manufacturing Plant, Food & Beverage Factory, Other
Function FILLING, Labeling, Sealing Packaging Type Stand-up Pouch, Bags, Pouch
Voltage 110V 220V 380V 50hz/60hz Core Components Motor, Pressure Vessel, PLC, Gear, Bearing, Engine, Gearbox
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Herbal Package Foot Soak Package Spice Package Solid Material Automatic Packaging Machine



Multi-station packaging machine specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Premede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)



Automatic bagging and packaging equipment is an efficient, accurate and intelligent packaging equipment, which can be widely used in the packaging of various powders, granules, and solid materials such as herbal medicine bags, foot bath bags, and spice bags. Compared with manual packaging, automatic bagging and packaging equipment has the following advantages:



1. Improve production efficiency: Automatic bagging and packaging equipment can quickly and accurately complete the packaging process, greatly improving production efficiency and reducing labor costs.



2. Guaranteed packaging quality: Automatic bagging and packaging equipment has a high-precision metering system and weighing detector to ensure that the content of each bag is accurate, thereby ensuring the packaging quality.



3. Reduce packaging errors: Automatic bagging and packaging equipment measures and fills materials such as herbs, foot soaking materials or spices, avoiding errors and unevenness in manual packaging.



4. Improve product quality: automatic bagging and packaging equipment can ensure that the weight and content of each bag are uniform, thereby improving the quality and taste of the product.



5. Realize intelligent control: automatic bagging and packaging equipment adopts an advanced control system, which can realize automatic production and data recording, and improve the efficiency and precision of production management.

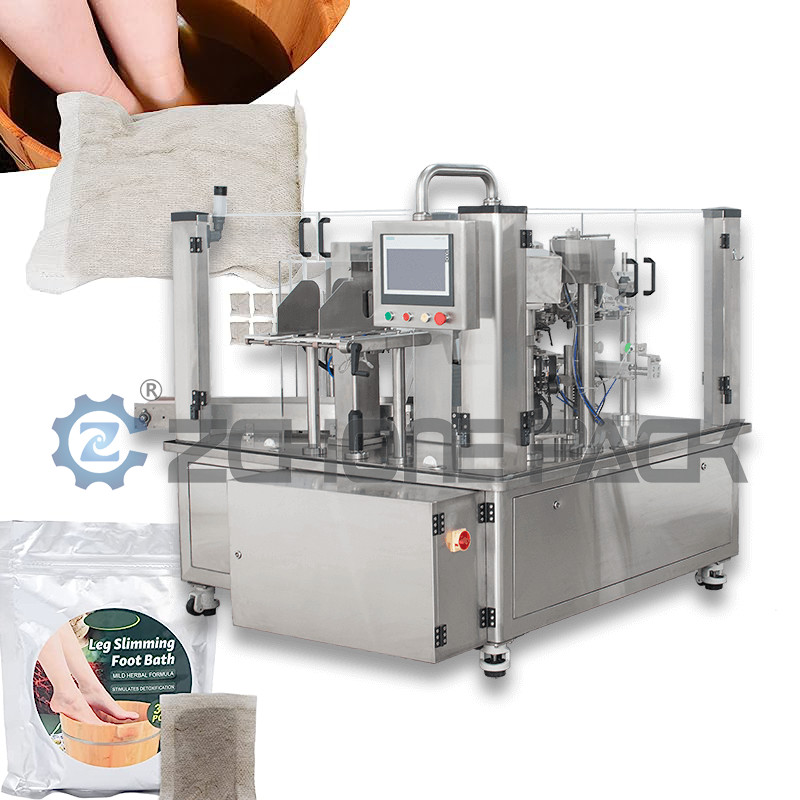

8 Station Zongzi Granule Packaging Machine With Automatic Vacuum Pumping System 0



Automatic bagging and packaging equipment for herbal medicine packs, foot bath packs, spice packs, etc. usually includes the following parts:



1. Automatic bag feeding machine: automatically feed empty bags into the bag-filling port of the packaging machine.



2. Metering device: It measures materials such as herbs, foot-soaking materials, or spices to ensure that the content of each bag is accurate.



3. Vibrator or conveyor: convey the material to the bag filling port, and ensure that the filling amount of each bag is even.



4. Sealing machine: seal the bag filled with materials.



5. Weighing detector: Carry out a weighing inspection on the sealed bags to ensure that the weight of each bag meets the standard.



6. Automatic discharge device: the qualified bags are automatically discharged, and the unqualified bags are rejected.



7. Control system: Automatically control the entire packaging process and record packaging data.



When using automatic bagging and packaging equipment, it is necessary to adjust the equipment and set parameters according to different products to ensure the packaging effect and production efficiency.

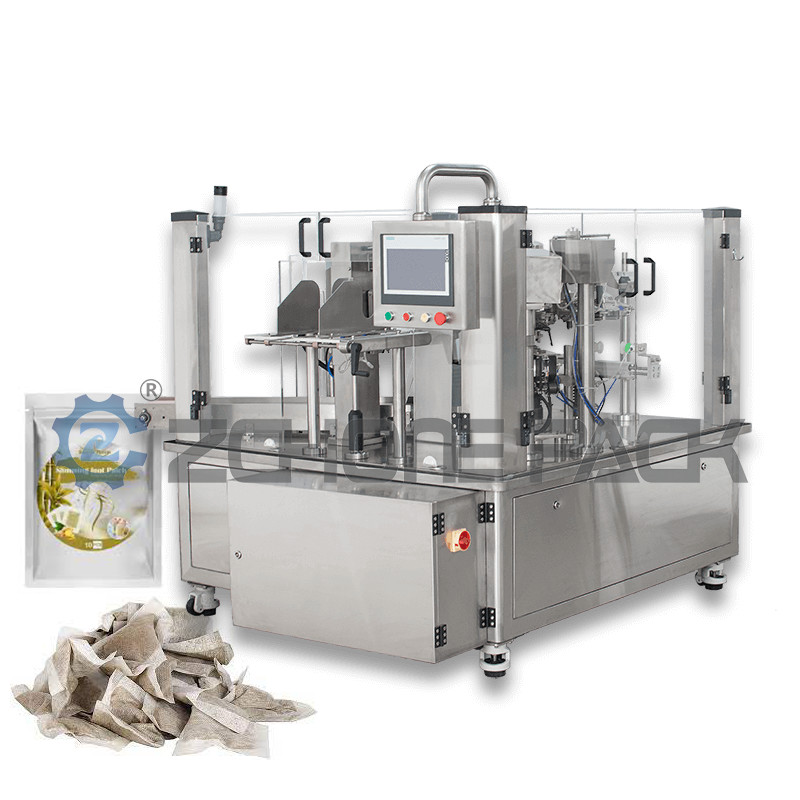

8 Station Zongzi Granule Packaging Machine With Automatic Vacuum Pumping System 1
