Single Station Granule Packing Machine Pouches Type Prefabricated Pouch

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-300
Minimum Order Quantity 1set
Price $6,999.00
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220V,50/60HZ,1KW Automatic Grade Automatic
Condition New Weight (KG) 880
Production Capacity 30bag/min Warranty 1 Year
Highlight

Single Station Granule Packing Machine

,

Pouches Type Granule Packing Machine

,

Prefabricated Granule Packaging Machinery

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Particle packing machine single-station pouches type prefabricated pouch packaging equipment





Machine Specification:



Item 200 300 430
Bag Material Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag size 100mm≤L≤200mm 100mm≤L≤300mm 100mm≤L≤430mm
70mm≤W≤150mm 80mm≤W≤300mm 80mm≤W≤300mm
Bag Type 3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type N/A Gusset Bag, Zipper Bag, Flat Bottom Pouch
(Need additional purchase of functional device)
Speed 0~26bags/min 0~15bags/min
Sealing Type Plain weave Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width 8mm 10mm(5--20mm can be customized)
Voltage 220V, Single-phase, 50/60HZ, 1KW 220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure 0.65Mpa
Air Consumption 0.2m³/min 0.3m³/min
Standard machine, no additional function
Body Dimension 1080*535*1010mm 1770*600*1230mm 1770*600*1360mm
Packing Dimension 1240*670*1320mm 1860*710*1550mm 1860*710*1650mm
Export non-fumigation wooden case

(We can provide you with exclusive customized services according to your needs!)

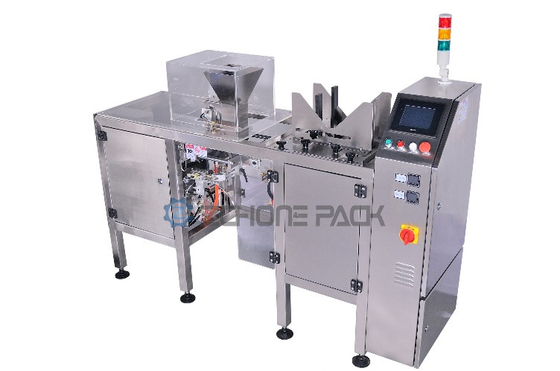

Single Station Granule Packing Machine Pouches Type Prefabricated Pouch 0



The fully automatic single-station pouch-feeding granule packing machine is the most popular single-station prefabricated pouches packaging machine in our company. It can be configured with different hoppers to adapt to different material requirements. The single-station granule packaging machine can automatically complete the functions of taking out the bag - opening the bag - filling - sealing - printing the date and conveying the finished product. The automatic single-station bag-feeding packaging machine is an automatic equipment specially used for packaging prefabricated bags with high appearance requirements.

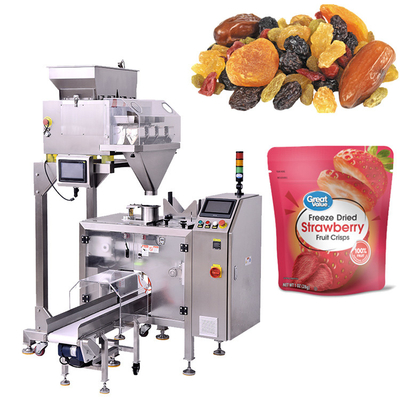

Single Station Granule Packing Machine Pouches Type Prefabricated Pouch 1



The automatic single-station granule packing machine is suitable for packaging various granules, flakes, strips, rounds, blocks and irregular shapes. Such as: peanuts, sunflower seeds, pumpkin seeds, watermelon seeds, red dates, almonds, cashews, walnuts, hazelnuts, pine nuts, lotus seeds, chestnuts, ginkgo, pistachios, raisins, soybeans, mung beans, red beans, black beans, corn, wheat, rice, barley , glutinous rice, steamed buns, steamed buns, dumplings, meatballs, glutinous rice balls, sesame balls, flower rolls, spring rolls, chaos, simmered wheat, rice dumplings, shrimps, frozen fish, shrimp meat, fish dumplings, fish balls, tribute balls, chicken nuggets, chicken legs, wings Roots, biscuits, bread, cookies, rice cakes, French fries, potato chips, jelly, candy, chocolate beans, peanut beans, shortbread, small twist, cat ear cake, wheat seed, rice seed, bean seed, corn seed , sorghum seeds, melon seeds, cotton seeds, plastic PVC, resin, rubber, plastic, silica gel, foam, paint wax, pigments, dyes, fertilizers, etc.



Single Station Granule Packing Machine Pouches Type Prefabricated Pouch 2



Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.



Q2:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.



Q4:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
