Multi Station Packaging Machine Snacks Candies Nuts Dried Fruits Dried Food

  • Multi Station Packaging Machine Snacks Candies Nuts Dried Fruits Dried Food
  • Multi Station Packaging Machine Snacks Candies Nuts Dried Fruits Dried Food
  • Multi Station Packaging Machine Snacks Candies Nuts Dried Fruits Dried Food
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8300
Minimum Order Quantity 1set
Price $18,000~$36,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Production Capacity 20bag/min, 50bag/min, 30bag/min
After Warranty Service1 Video Technical Support After Warranty Service2 Online Support
After Warranty Service3 Spare Parts After Warranty Service4 Field Maintenance And Repair Service
High Light

Multifunctional Dry Fruit Packing Machine

,

Multipurpose Dry Fruit Packing Machine

,

380V Dry Food Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Multi-Station Packaging Machine Snacks, Candies, Nuts, Dried Fruits, Dried Food





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)



The snack packaging machine is an automatic packaging line that can pack a variety of snacks and other foods. It has the function of automatically controlling parameters such as speed, pressure and temperature. The materials used in snack packaging machines are mainly plastic films, prefabricated bags, etc. Among them, the automatic bag feeding packaging machine is an automatic equipment specially used for packaging prefabricated bags with high appearance requirements. It is widely used in food, medicine, beverage, chemical industry, agriculture, hardware, toys and other industries for all kinds of granular, liquid, slurry, flake and powder materials.



Multi Station Packaging Machine Snacks Candies Nuts Dried Fruits Dried Food 0

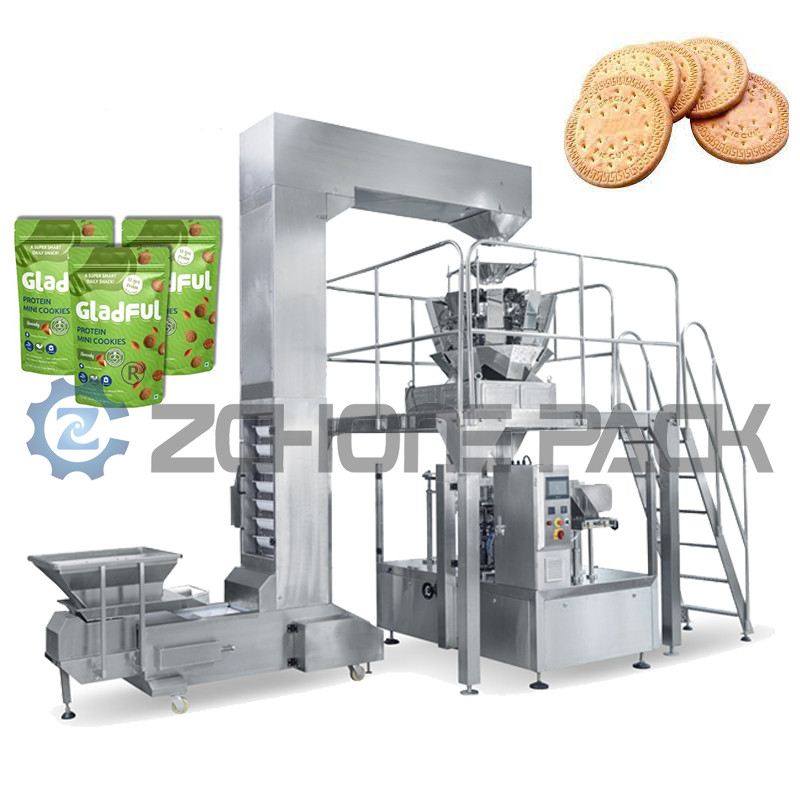

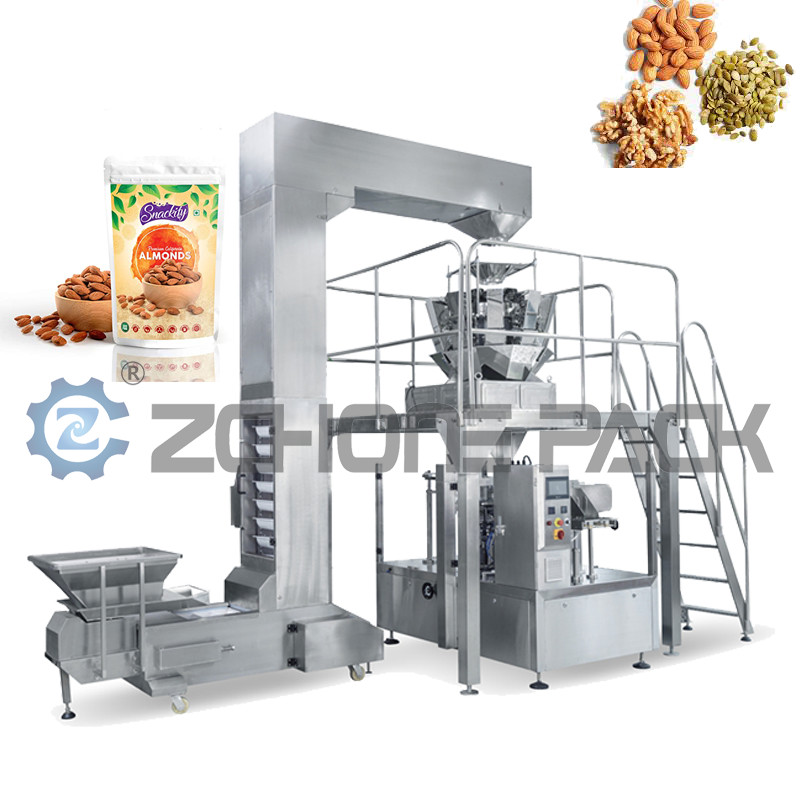

The multi-station snack packaging machine is composed of a multi-station host, a Z-type elevator, a multi-head combination scale and a supporting platform. It is suitable for all kinds of granular, flake, strip, round, block and irregular shapes. Quantitative packaging of food. In order to ensure the safety of materials and food, the contact parts of our packaging machine and materials are made of food-grade stainless steel, which meets the requirements of environmental protection, and the material loss during operation is small.



Multi Station Packaging Machine Snacks Candies Nuts Dried Fruits Dried Food 1



Packaging machine performance characteristics:



1. The packaging unit is controlled by PLC program, and the touch screen is displayed in both Chinese and English. The operation is intuitive and simple, and it can clearly display the working status, operation instructions, etc.

2. According to the specifications and weight of the production materials, the bag width can be adjusted automatically with one key, and the eight sets of machine clips can be adjusted synchronously. Various product adjustment parameter formulas can be stored for later use.

3. The equipment structure is made of stainless steel, which is compact and space-saving. The electrical components are all internationally renowned brands to ensure long-term stable operation of the machine and meet the production requirements of pharmaceutical grade and food grade.

4. Intelligent digital temperature control system, stable temperature difference control, good sealing quality, and improved product quality.

4. Fault automatic alarm display function, such as no bag, no material, no ribbon, insufficient air pressure, abnormal sealing temperature, automatic alarm or shutdown.

5. It is suitable for product packaging of various types of bags such as flat bags, three-dimensional bags, and tote bags.



Multi Station Packaging Machine Snacks Candies Nuts Dried Fruits Dried Food 2
