Chicken Popcorn Granule Packing Machine Premade Pouches Multi Function

  • Chicken Popcorn Granule Packing Machine Premade Pouches Multi Function
  • Chicken Popcorn Granule Packing Machine Premade Pouches Multi Function
  • Chicken Popcorn Granule Packing Machine Premade Pouches Multi Function
  • Chicken Popcorn Granule Packing Machine Premade Pouches Multi Function
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Production Capacity 20bag/min, 50bag/min, 30bag/min
After Warranty Service1 Video Technical Support After Warranty Service2 Online Support
After Warranty Service3 Spare Parts After Warranty Service4 Field Maintenance And Repair Service
High Light

Chicken Granule Packing Machine

,

0.8Mpa Granule Packing Machine

,

Multi Function Popcorn Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Chicken Chicken Popcorn Premade pouches Granule Packing Machine





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)



Chicken Popcorn Granule Packing Machine Premade Pouches Multi Function 0

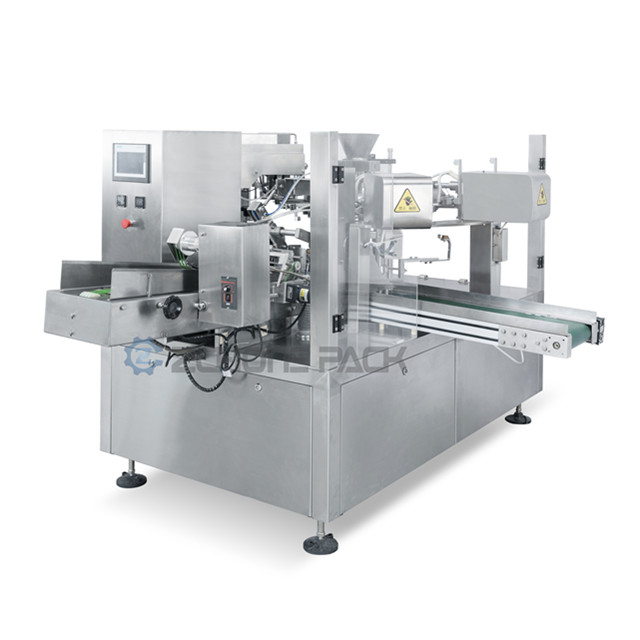

Premade pouch granule packing machine: The bag width can be adjusted with one key, suitable for products with many bag types, easy to clean and stable operation.



Chicken Popcorn Granule Packing Machine Premade Pouches Multi Function 1





Features of premade pouches granule packaging machine:



1. Packaging process: bag loading - coding - opening bag - cutting 1 (vibration) - cutting 2 (secondary cutting/dust removal) - cleaning - sealing 1 (exhaust) - sealing 2 - output.

2. Easy to operate: PLC control, man-machine interface.

3. The bag width is easy to adjust: controlled by the motor, only one button can be used to adjust the clamps of each group synchronously.

4. No bag or incomplete open bag, no feeding.

5. Open the bag without blanking.

6. No bags or no additives, no sealing.

7. Door open and stop alarm (optional).

8. No ribbon stop alarm.

9. Insufficient air pressure, alarm prompt.

10. Abnormal sealing temperature, alarm prompt.

11. The part in contact with the material is made of 304/316 stainless steel or food-grade plastic, which meets the hygienic requirements.



Chicken Popcorn Granule Packing Machine Premade Pouches Multi Function 2



Suitable for bag type:



Flat bags, stand-up bags, prong bags, box bags, zipper bags, nozzle bags, special-shaped bags, etc.



Chicken Popcorn Granule Packing Machine Premade Pouches Multi Function 3



Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.



Q2:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.



Q4:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
