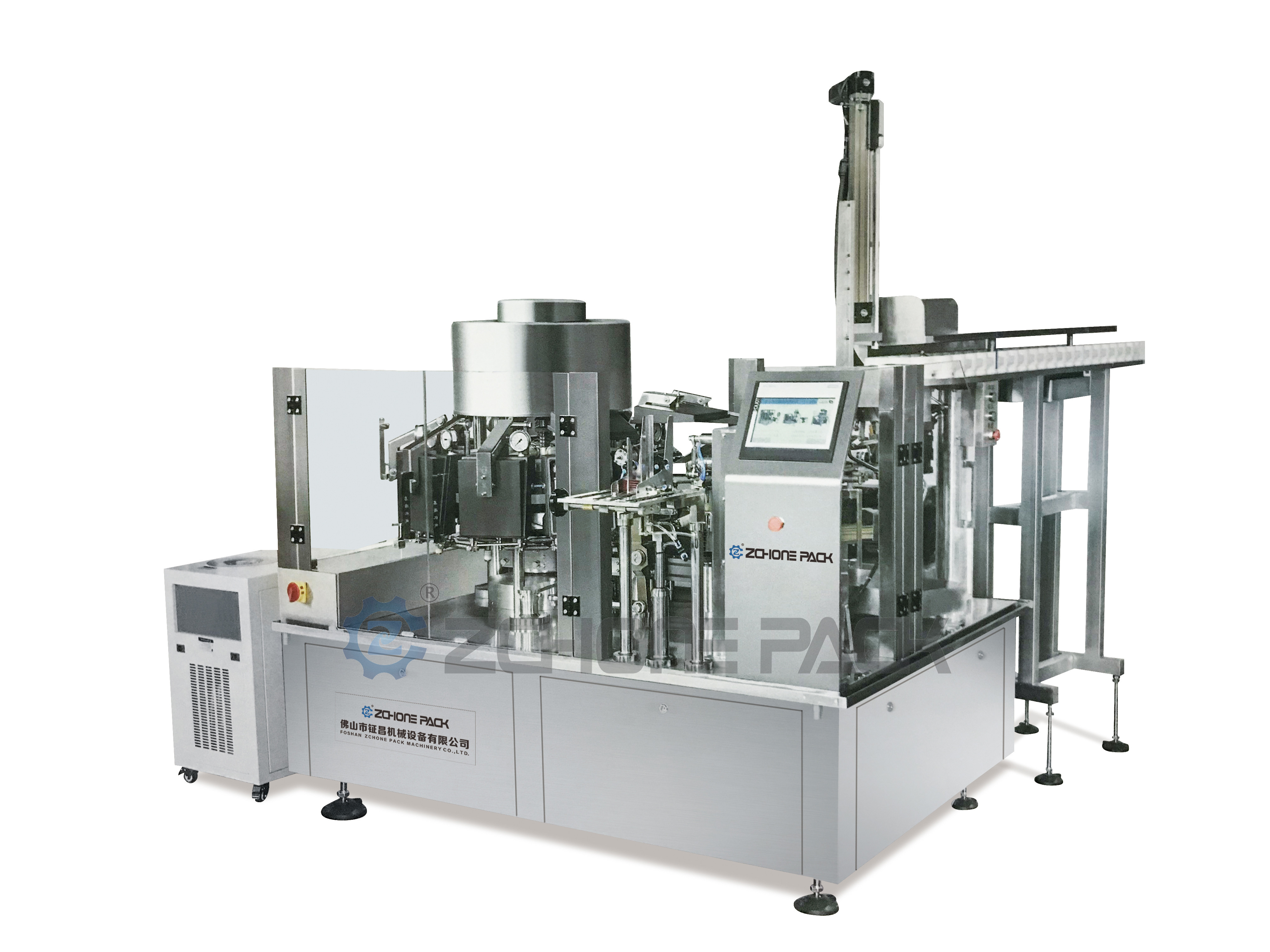

Food Beef Corn Automatic Vacuum Packaging Machine Multifunctional Rotary

  • Food Beef Corn Automatic Vacuum Packaging Machine Multifunctional Rotary
  • Food Beef Corn Automatic Vacuum Packaging Machine Multifunctional Rotary
  • Food Beef Corn Automatic Vacuum Packaging Machine Multifunctional Rotary
  • Food Beef Corn Automatic Vacuum Packaging Machine Multifunctional Rotary
  • Food Beef Corn Automatic Vacuum Packaging Machine Multifunctional Rotary
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-ZK120
Minimum Order Quantity 1set
Price $39,900.00
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Weight (KG) 1300
Dimension(L*W*H) 2100*1400*1700 Application Food, Commodity
Warranty Of Core Components 1 Year Packaging Type Bags, Pouch
Voltage 220V 380V 50/60HZ Applicable Industries Hotels, Manufacturing Plant, Food & Beverage Factory, Other
Core Components Motor, Pressure Vessel, Pump, PLC, Other, Gear, Bearing, Engine, Gearbox Production Capacity 20bag/min, 50bag/min, 30bag/min
High Light

Beef Automatic Vacuum Packaging Machine

,

Rotary Automatic Vacuum Packaging Machine

,

Multifunctional Vacuum Packaging Machine
Leave a Message
Product Description

Automatic Vacuum Packing Machine Food Beef Corn Automatic Multifunctional Rotary Packaging Machine

Machine Specification:

Item ZK120 ZK160 ZK200
Packing Speed Max 60 bags / min
Bag size L80-180mm L80-240mm L150-300mm
W50-120mm W80-160mm W120-200mm
Bag Type Alumiem foil bag, Four-side sealed bag, Paper bag, Laminated bag, etc.
Weighing Range 10g~200g 15~500g 20g~1kg
Measurement Accuracy ≤±0.5 ~ 1.0%,depend on the measurement equipment and materials
Maximem bag width 120mm 160mm 200mm
Gas consumption 0.8Mpa 0.3m³/min
Total power/ voltage 10kw 380v 50/60hz 10kw 380v 50/60hz 10kw 380v 50/60hz
Air compressor Not less than 1 CBM
Dimension

L2100*W1400

*H1700mm

L2500*W1550

*H1700mm

L2600*W1900*

H1700mm
Machine Weight 2000kg 2200kg 3000kg

(We can provide you with exclusive customized services according to your needs!)

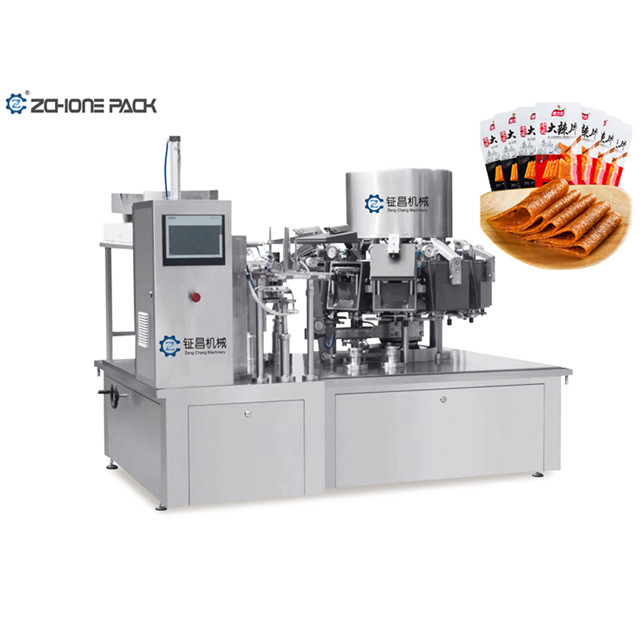

Food Beef Corn Automatic Vacuum Packaging Machine Multifunctional Rotary 0

The bag-type automatic vacuum packaging machine is specially used for continuous automatic vacuum packaging of various types of cooked food such as chicken feet, duck feet, duck necks, dried tofu, small fish, fish nuggets, etc. It can automatically take bags. , bagging, coding, bagging, drum bagging, feeding, measuring, filling, vacuuming, sealing, conveying, etc. until the fully automated production of finished products, which greatly improves production efficiency.

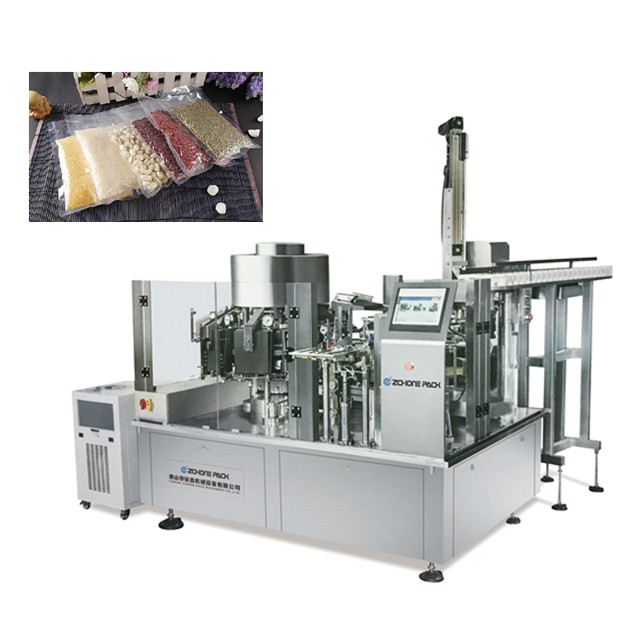

Food Beef Corn Automatic Vacuum Packaging Machine Multifunctional Rotary 1

Features

1.Adopt new type of integration to simplified single-axis matching inner wheel groove cam structure of main part. Adopting electronic numerical control to control the vacuum heating seal.

2.When the bag is opened, it will be not be filled without heat sealing, when the bag is filled without material, the heating sealing station will not work, to avoiding wasting the bag.

3.Used the cylinder to control the sealing knife to run.

4.Full automatic metering filling and sealing.

5.The bag compartment has no bag automatic alarm.

6.The whole machine adopting mechanical control.

7.More reasonable overall size.

8.Wear resistant gears

9.Most of the whole machine adopt improved parts from Germary

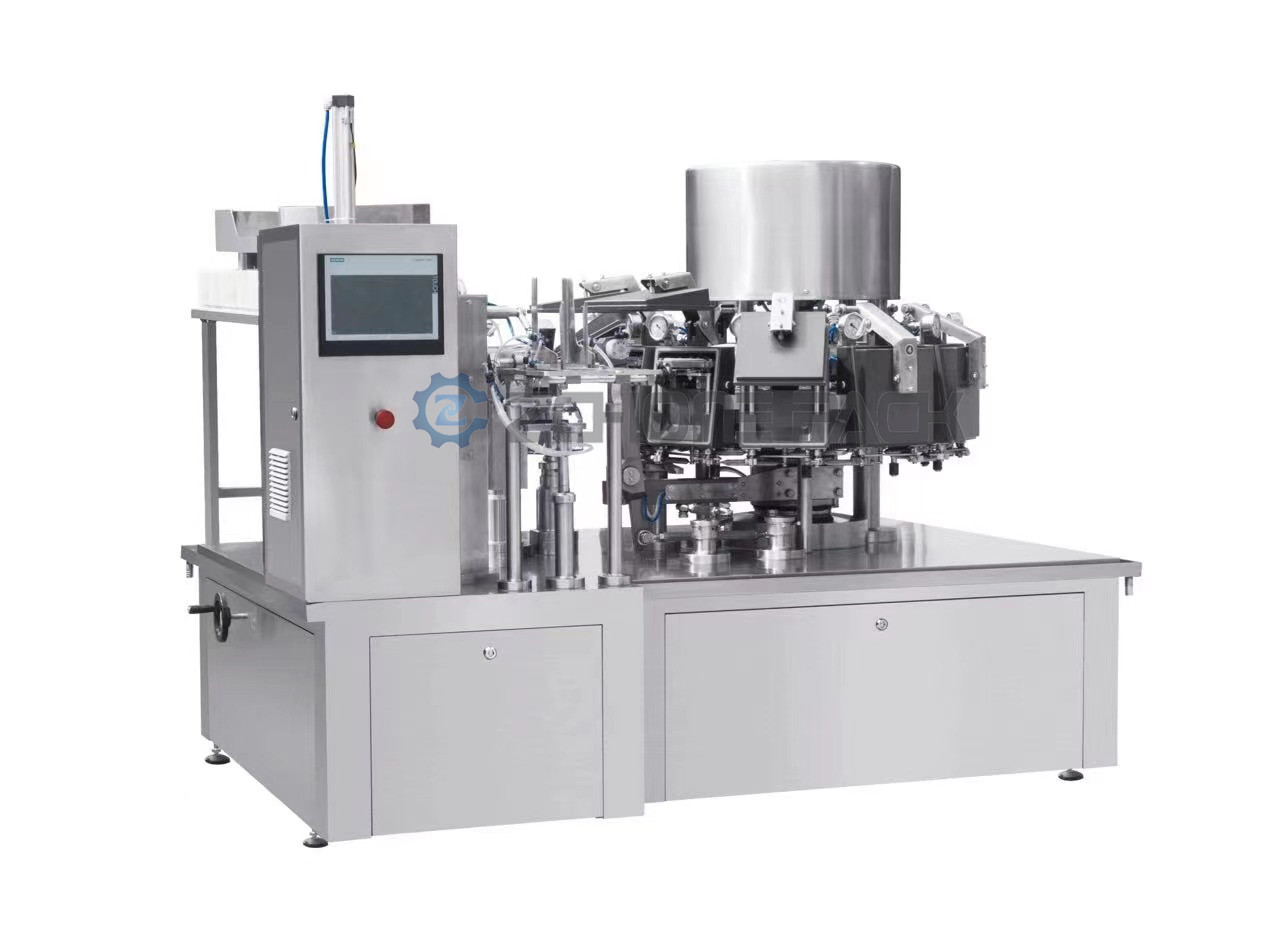

Food Beef Corn Automatic Vacuum Packaging Machine Multifunctional Rotary 2

Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.

02:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.

03:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

Q4:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
