Orange Juice Packing Machine Oil Bags Milk Fruit Juice Vertical Packaging Machine

  • Orange Juice Packing Machine Oil Bags Milk Fruit Juice Vertical Packaging Machine
  • Orange Juice Packing Machine Oil Bags Milk Fruit Juice Vertical Packaging Machine
  • Orange Juice Packing Machine Oil Bags Milk Fruit Juice Vertical Packaging Machine
  • Orange Juice Packing Machine Oil Bags Milk Fruit Juice Vertical Packaging Machine
  • Orange Juice Packing Machine Oil Bags Milk Fruit Juice Vertical Packaging Machine
Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-VS32
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Liquid Vertical Packing Machine Warranty 12 Month
Application Sauce, Seasoning Oil, Chili Oil, Sesame Oil, Peanut Oil, Salad Oil, Hot Pot Base, Seasoning Sauce, Tomato Sauce, Peanut Sauce, Sesame Sauce, Spicy Sauce, Chili Sauce, Bean Sauce, Hoisin Sauce, Sweet Noodle Sauce, Salad Sauce, Fruit Sauce, Etc. Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops
Core Components Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox Production Capacity 50bag/min, 30bag/min, 60bag/min
Highlight

Orange Juice Packing Machine

,

PLC Juice Packing Machine

,

4.5KW Vertical Packaging Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

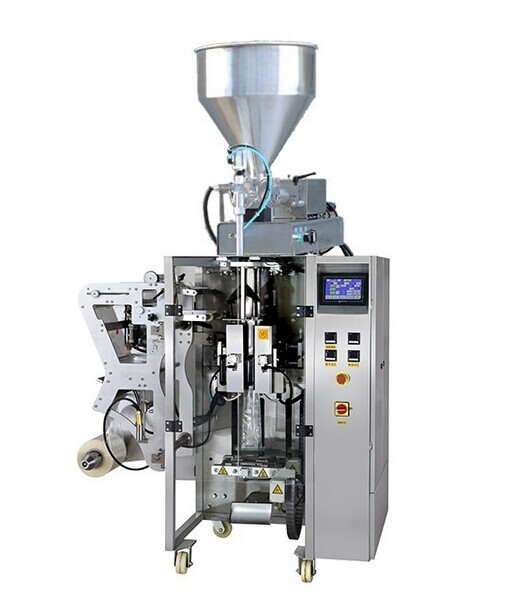

Liquid Packing machine Oil Bags Milk Fruit Juice Orange Juice Vertical Packaging Machine

Machine Specification:

Packing Speed 5 - 40 bags / min
Pouch Size (mm) L100 - 250, W30 - 160
Max. Film Width (mm) 320
Pouch Thickness (mm) 0.04 - 0.09
Filling Range 10 - 100g
Pouch Material BOPP / CPP, PET / AL / PE etc
Compress Air 0.8MPa, 0.5m3/min
Power 4.5KW
Voltage 220v 50/60Hz
Unit Size (mm) 1350*1120*1250
Unit Weight (KG) 500
Pouch Type 4side-seal bag (Option:3 side-seal bag)
application Sauce, seasoning oil, chili oil, sesame oil, peanut oil, salad oil, hot pot base, seasoning sauce, tomato sauce, peanut sauce, sesame sauce, spicy sauce, chili sauce, bean sauce, hoisin sauce, sweet noodle sauce, salad sauce, fruit sauce,
Pouches shape Pillow bags, prong bags, punching bags, tote bags, box bags, etc. Constant temperature heat sealing, bag width can be automatically adjusted, the incision has flat and toothed openings

(We can provide you with exclusive customized services according to your needs!)



Orange Juice Packing Machine Oil Bags Milk Fruit Juice Vertical Packaging Machine 0

The multifunctional liquid vertical packaging machine can pack liquid materials in the range of 30g-5000g. Manufacturers can customize the required packaging models according to their own needs.



Orange Juice Packing Machine Oil Bags Milk Fruit Juice Vertical Packaging Machine 1

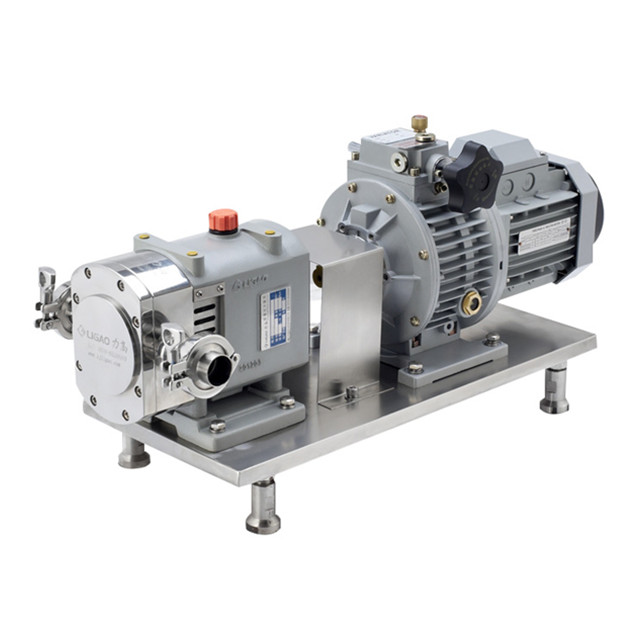

The automatic liquid vertical packaging machine can be equipped with liquid pump, paste pump and rotor pump for conveying according to the material, which can ensure that the material can be conveyed smoothly and without damage when conveying the material, avoiding unnecessary consumption. The equipped material conveying accessories can be linked with the material level sensor switch of the high-level mixing tank to realize automatic control of the start and stop of the conveying pump.



Orange Juice Packing Machine Oil Bags Milk Fruit Juice Vertical Packaging Machine 2



Packing Material

It can be applied to transparent single film, composite film, aluminum plastic film, aluminum foil film, and printing film made of PET/AL/NY/PE. The material and size of the roll film can be freely exchanged according to the packaging requirements.



Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.



Q2:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.



Q4:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
