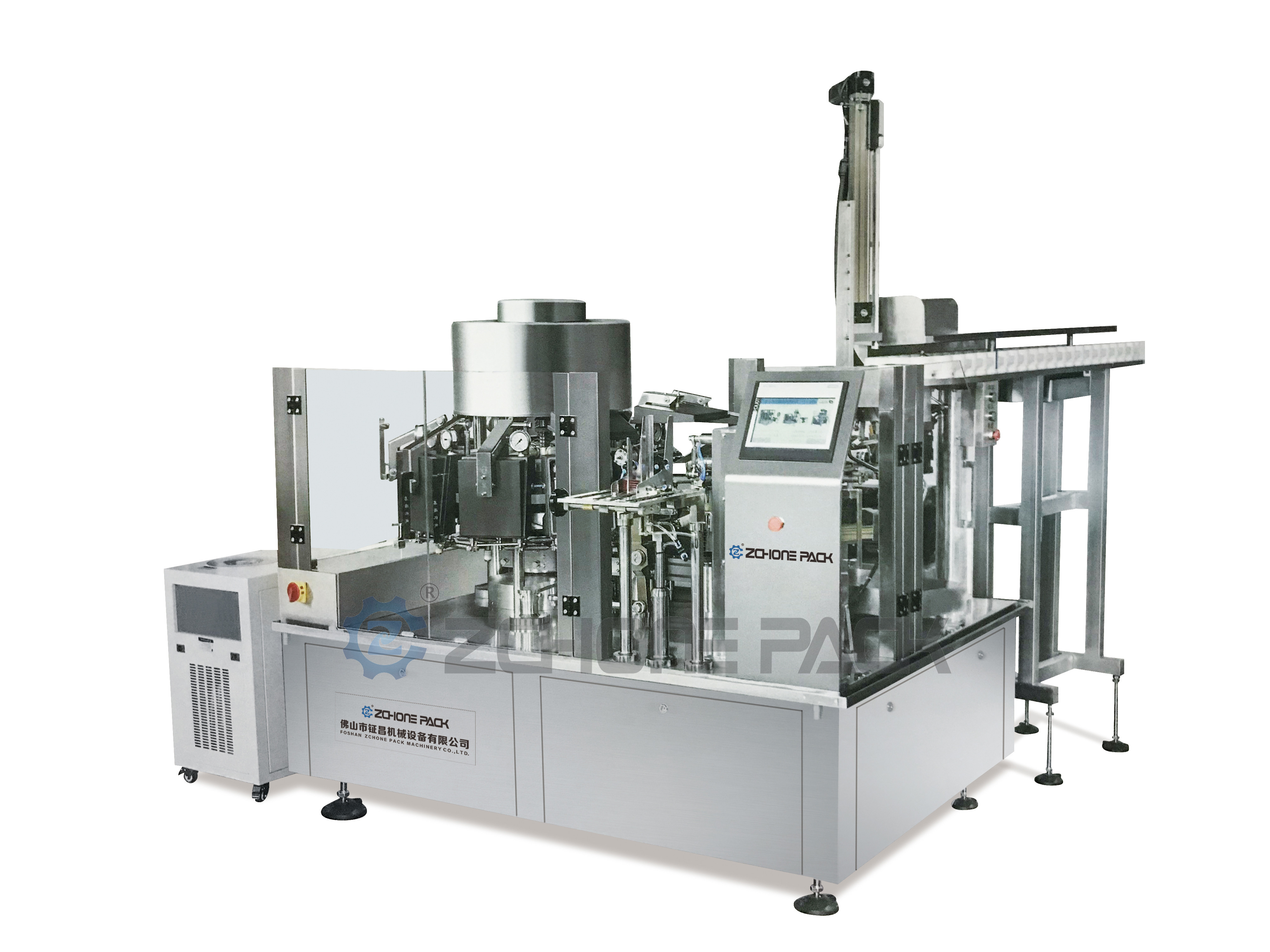

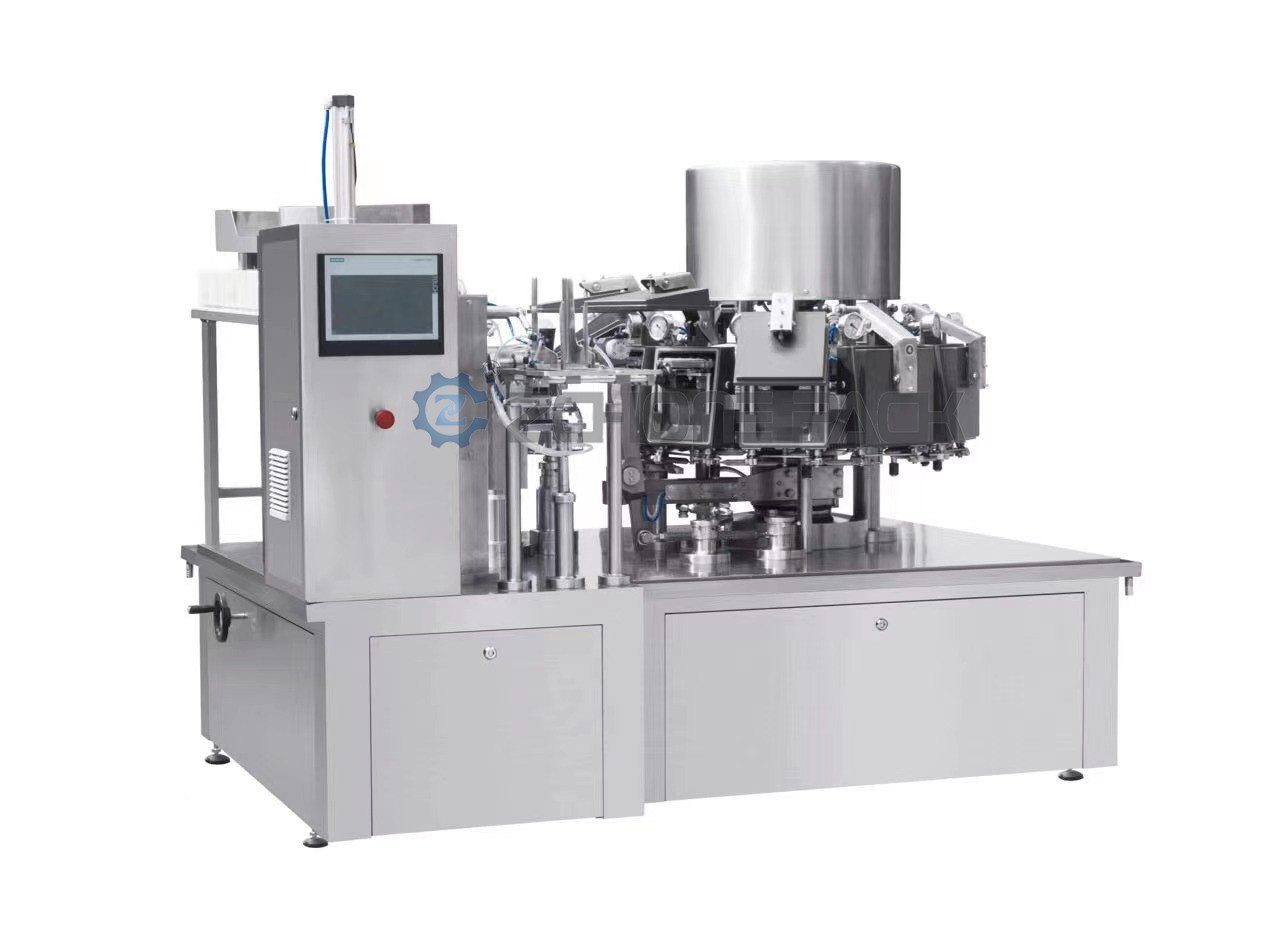

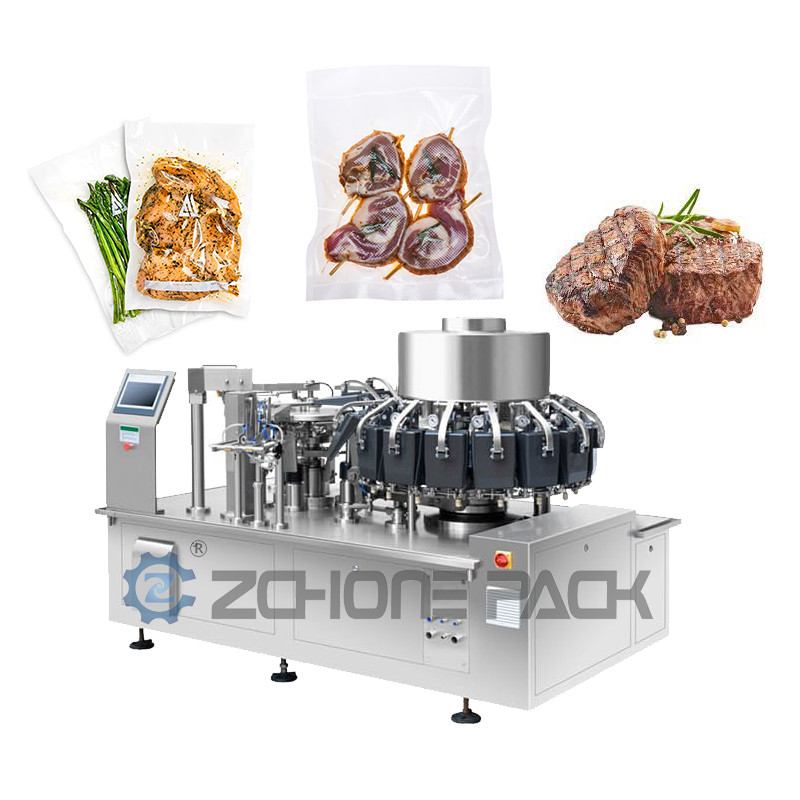

Automatic Rotary Vacuum Packaging Machine For Food Fish Aberdeen Packaging

  • Automatic Rotary Vacuum Packaging Machine For Food Fish Aberdeen Packaging
  • Automatic Rotary Vacuum Packaging Machine For Food Fish Aberdeen Packaging
  • Automatic Rotary Vacuum Packaging Machine For Food Fish Aberdeen Packaging
  • Automatic Rotary Vacuum Packaging Machine For Food Fish Aberdeen Packaging
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-ZK120
Minimum Order Quantity 1set
Price $28,000.00
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Vacuum Packing Machine Dimension(L*W*H) L2100*W1400*H1700
Voltage 220V 380V 50/60HZ Core Components Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Production Capacity 50bag/min, 30bag/min Weight (KG) 1300
Highlight

220V Rotary Vacuum Packaging Machine

,

380V Rotary Vacuum Packaging Machine

,

Automatic Vacuum Packing Machine For Food
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Automatic Vacuum Packing Machine for Food Fish Aberdeen Packaging





Machine Specification:



Item ZK120 ZK160 ZK200
Packing Speed Max 60 bags / min
Bag size L80-180mm L80-240mm L150-300mm
W50-120mm W80-160mm W120-200mm
Bag Type Alumiem foil bag, Four-side sealed bag, Paper bag, Laminated bag, etc.
Weighing Range 10g~200g 15~500g 20g~1kg
Measurement Accuracy ≤±0.5 ~ 1.0%,depend on the measurement equipment and materials
Maximem bag width 120mm 160mm 200mm
Gas consumption 0.8Mpa 0.3m³/min
Total power/ voltage 10kw 380v 50/60hz 10kw 380v 50/60hz 10kw 380v 50/60hz
Air compressor Not less than 1 CBM
Dimension L2100*W1400 L2500*W1550 L2600*W1900*
*H1700mm *H1700mm H1700mm
Machine Weight 2000kg 2200kg 3000kg

(We can provide you with exclusive customized services according to your needs!)



Automatic Rotary Vacuum Packaging Machine For Food Fish Aberdeen Packaging 0



Baby squid is a kind of small squid as raw material, the head of the squid is cut off, and only the body is kept. Generally speaking, the body of the baby squid is round and long, because the head of the squid is cut off, chopped and seasoned. It will be filled to the abdomen, a kind of marine leisure food made by smoking; of course, some squid are small squid with seeds



Automatic Rotary Vacuum Packaging Machine For Food Fish Aberdeen Packaging 1



Although baby squid is delicious, the packaging of baby squid is also a labor-intensive task. Packing, placing bags, vacuuming, and sealing requires a lot of labor. In order to meet the needs of the market, food machinery manufacturers have undergone continuous After research and development, it was decided to use a fully automatic vacuum packing machine to package squid larvae.



Automatic Rotary Vacuum Packaging Machine For Food Fish Aberdeen Packaging 2



The automatic vacuum packing machine for baby squid uses the elevator to lift the product to the storage tray of the feeder for raw materials, and then the worker puts the packaging pouches into the storage bag box. The automatic vacuum packing machine is generally composed of 6 stations and 10 vacuum chambers. The 6 stations are bag loading, bag opening, material feeding, oil filling/water station, vacuum transfer station and empty bag recycling station.



Automatic Rotary Vacuum Packaging Machine For Food Fish Aberdeen Packaging 3



The use of automatic vacuum packing machine for squid packaging basically realizes unmanned operation, which can save more than a dozen workers, facilitate enterprise management, and increase profits for the enterprise.





After-sale service:



1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.

2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.

3. SUNCHON engineers and technical engineers can provide machine service in your country.

4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.

5.We will provide technical support lifelong and provide accessories persistently.
