Stand Up Pouch Packaging Machine Spout Pouches Ketchup Juice Beverage

  • Stand Up Pouch Packaging Machine Spout Pouches Ketchup Juice Beverage
  • Stand Up Pouch Packaging Machine Spout Pouches Ketchup Juice Beverage
  • Stand Up Pouch Packaging Machine Spout Pouches Ketchup Juice Beverage
  • Stand Up Pouch Packaging Machine Spout Pouches Ketchup Juice Beverage
  • Stand Up Pouch Packaging Machine Spout Pouches Ketchup Juice Beverage
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Liquid Packing Machine Place Of Origin Foshan China
Application Food, Beverage, Liquid & Juice Packaging Material Plastic
Voltage 220V 380V 50/60HZ Key Selling Points Automatic
Highlight

Ketchup Stand Up Pouch Packaging Machine

,

Juice Stand Up Pouch Packaging Machine

,

Beverage Spout Pouch Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Stand-up pouch packing machine spout pouches packaging laundry detergent, ketchup, juice, beverage





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 1.5KW 380V 50/60Hz 1.8KW 380V 50/60Hz 2KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1300kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Liquid/paste type: Oil,milk,detergent liquid, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc

(We can provide you with exclusive customized services according to your needs!)



The spout stand-up pouches is more convenient to pour or absorb the contents, and can be re-closed and re-opened at the same time, which can be considered as the combination of the stand-up pouch and the ordinary bottle mouth. This kind of stand-up pouch is generally used for packaging daily necessities, such as beverages, shower gel, shampoo, ketchup, edible oil, jelly, liquid milk and other liquids.



Stand Up Pouch Packaging Machine Spout Pouches Ketchup Juice Beverage 0



spout stand-up pouches can be packaged by a bag-type liquid packing machine. The operation of fully automated packaging equipment enables many manufacturers to reduce manpower investment and provide efficient and high-quality services to manufacturers.

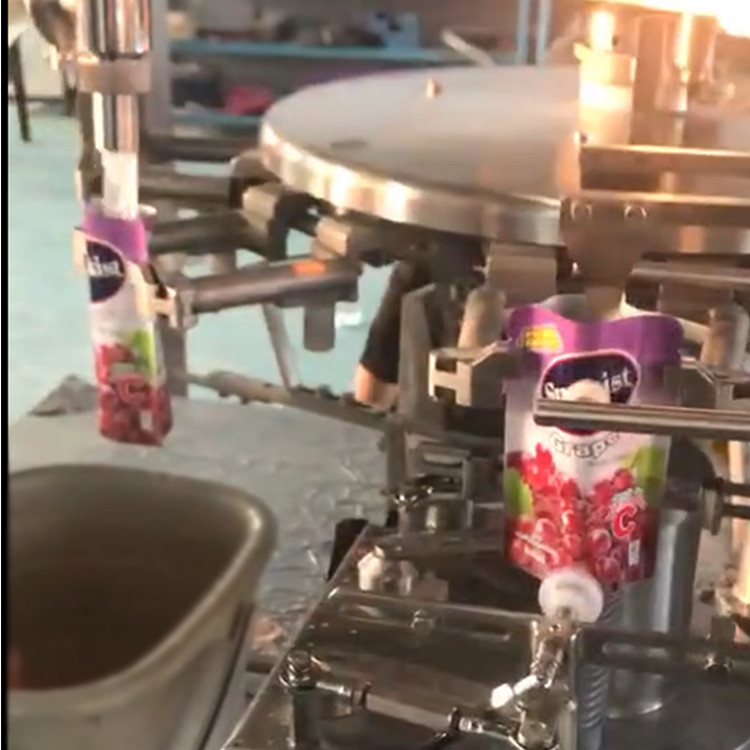

Stand Up Pouch Packaging Machine Spout Pouches Ketchup Juice Beverage 1



Liquid feeding pouch packaging machine, liquid is the source of life, more attention should be paid to packaging quality, especially in the food industry, liquid feeding bag packing machine can collect bags - coding - opening bags - metering and blanking - dust removal - cleaning - heat The process of sealing-cold sealing-output is integrated, which can efficiently and quickly adapt to the needs of the consumer market for many production enterprises, and quickly occupy the consumer market.

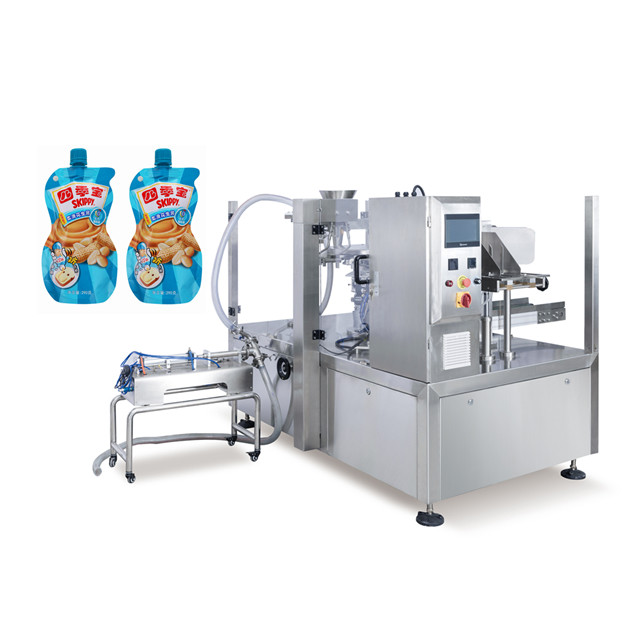

Stand Up Pouch Packaging Machine Spout Pouches Ketchup Juice Beverage 2
