Fully Automatic Liquid Packing Machine Rotary Dairy Sauce Viscous Liquid

  • Fully Automatic Liquid Packing Machine Rotary Dairy Sauce Viscous Liquid
  • Fully Automatic Liquid Packing Machine Rotary Dairy Sauce Viscous Liquid
  • Fully Automatic Liquid Packing Machine Rotary Dairy Sauce Viscous Liquid
  • Fully Automatic Liquid Packing Machine Rotary Dairy Sauce Viscous Liquid
  • Fully Automatic Liquid Packing Machine Rotary Dairy Sauce Viscous Liquid
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Liquid Packaging Machine Place Of Origin Foshan China
Application Beverages, Dairy Products, Viscous Liquids, Cleaning Liquids, Personal Care Liquids, Etc Machine Weight 1300
Voltage 220V 380V 50/60HZ Key Selling Points Automatic
Highlight

Fully Automatic Liquid Packing Machine

,

Rotary Liquid Packing Machine

,

Viscous Liquid Packaging Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Liquid Packaging Machine Fully Automatic Rotary Dairy Sauce Viscous Liquid





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 1.5KW 380V 50/60Hz 1.8KW 380V 50/60Hz 2KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1300kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Liquid/paste type: Oil,milk,detergent liquid, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc

(We can provide you with exclusive customized services according to your needs!)



Liquid packing machines are generally the machinery used by manufacturers for liquid packaging of products. Liquid packing machines can be used to package: beverages, dairy products, viscous liquids, cleaning liquids, personal care liquids, etc. Our fully automatic bag feeding liquid packaging machine is an automatic equipment specially used for packaging prefabricated pouches with high appearance requirements.

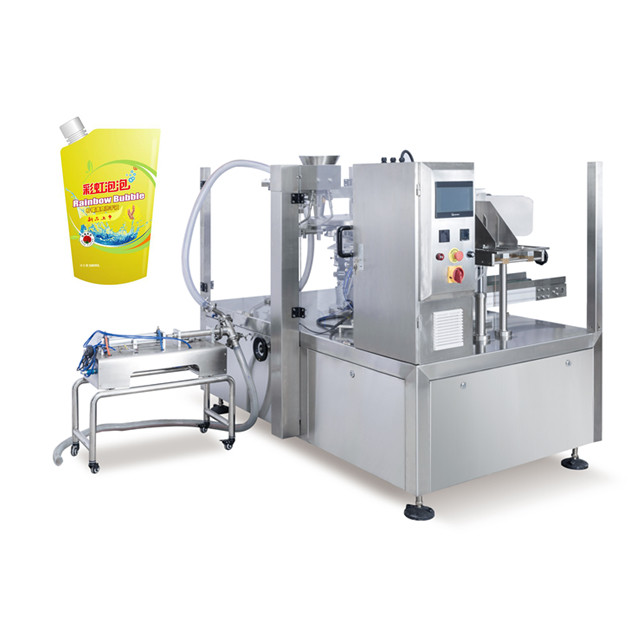

Fully Automatic Liquid Packing Machine Rotary Dairy Sauce Viscous Liquid 0



Nowadays, customers are more and more interested in the packaging of products. A good packaging pouch can not only improve the grade of the product, but also increase the customer's desire to buy. Our bag-feeding liquid packing machine can easily meet the packaging of various premade pouches. Common prefabricated bag types are: stand-up pouch, zipper pouch, flat bag, spout pouches, special-shaped bag, M bag, etc.

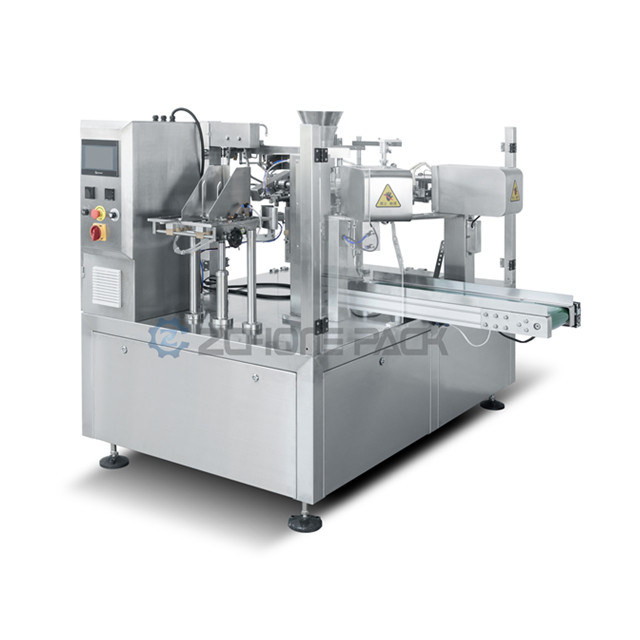

Fully Automatic Liquid Packing Machine Rotary Dairy Sauce Viscous Liquid 1



Our bag-feeding liquid packing machine is composed of eight-station host + paste pump/liquid pump. A series of actions such as opening, printing, filling and sealing of the packaging pouch are completed through multi-station. The multifunctional liquid packaging machine can be equipped with a one-key adjustment function. According to the specifications and weight of the production materials, the bag width can be adjusted automatically with one key, and eight sets of machine clamps can be adjusted synchronously. Various product adjustment parameter formulas can be stored for subsequent use.

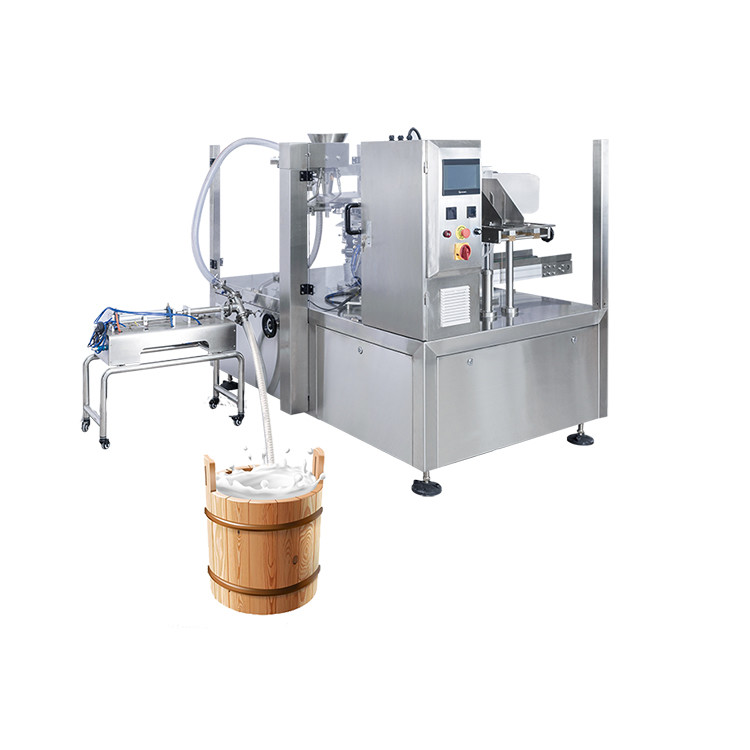

Fully Automatic Liquid Packing Machine Rotary Dairy Sauce Viscous Liquid 2
