Automatic Bag Feeding Liquid Packaging Machine Stand Up Pouch Spout Pouch Juice Sauce

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-300
Minimum Order Quantity 1set
Price $9,800~$28,900
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Product Name Liquid Packaging Machine
Voltage 220V/380V Automatic Grade Automatic
Application Food,Chemical,Medical,Commodity,Beverage Packaging Type Bags,Pouch,Film
Highlight

Automatic Sauce Packaging Machine

,

Beverage Sauce Packaging Machine

,

Commodity Liquid Packaging Equipment

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Automatic bag feeding liquid packaging machine stand-up pouch spout pouch juice sauce





Machine Specification:



Item 200 300 430
Bag Material Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag size 100mm≤L≤200mm 100mm≤L≤300mm 100mm≤L≤430mm
70mm≤W≤150mm 80mm≤W≤300mm 80mm≤W≤300mm
Bag Type 3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type N/A Gusset Bag, Zipper Bag, Flat Bottom Pouch
(Need additional purchase of functional device)
Speed 0~26bags/min 0~15bags/min
Sealing Type Plain weave Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width 8mm 10mm(5--20mm can be customized)
Voltage 220V, Single-phase, 50/60HZ, 1KW 220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure 0.65Mpa
Air Consumption 0.2m³/min 0.3m³/min
Standard machine, no additional function
Body Dimension 1080*535*1010mm 1770*600*1230mm 1770*600*1360mm
Packing Dimension 1240*670*1320mm 1860*710*1550mm 1860*710*1650mm
Export non-fumigation wooden case

(We can provide you with exclusive customized services according to your needs!)



The traditional manual packaging method can no longer meet people's requirements for high-efficiency production, so automatic packaging machinery emerges as the times require, which can automatically package products by using a variety of packaging pouches

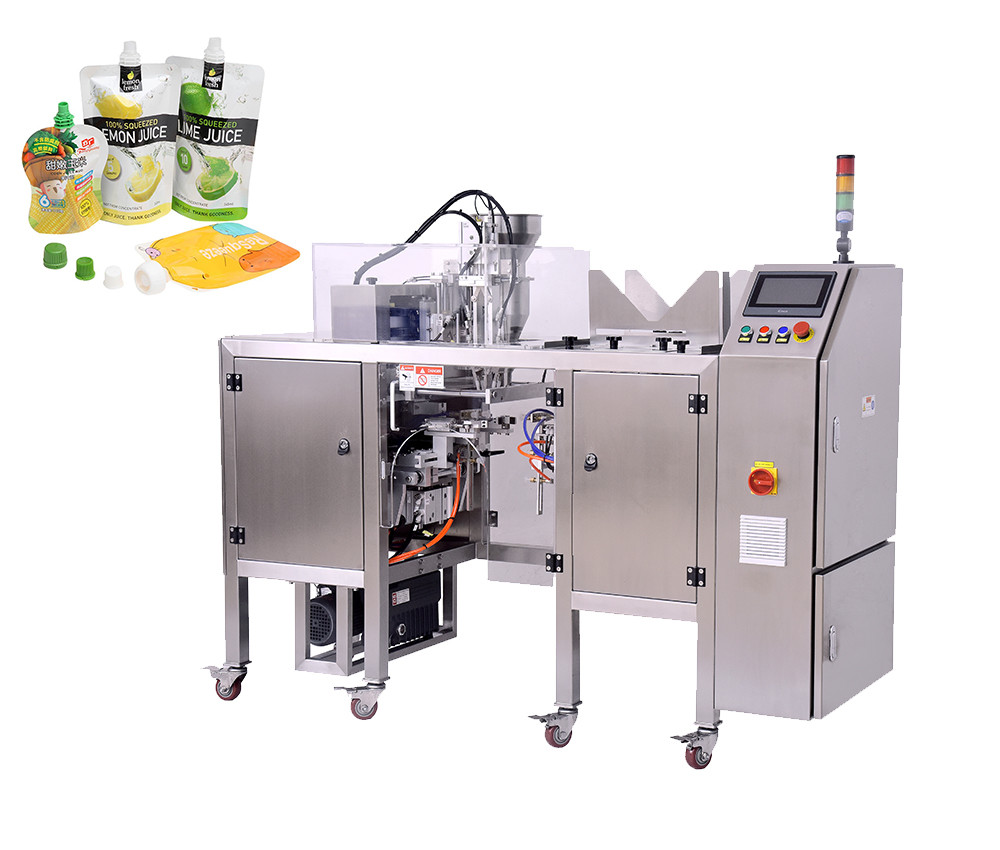

Automatic Bag Feeding Liquid Packaging Machine Stand Up Pouch Spout Pouch Juice Sauce 0



The working principle of the liquid packaging machine is to use one or more sensors to monitor the position and size of the product, quantitatively sort the product and put it into the appropriate packaging, after simply cleaning the bag mouth and adjusting the contents of the bag, Heat seal the bag to complete the package.

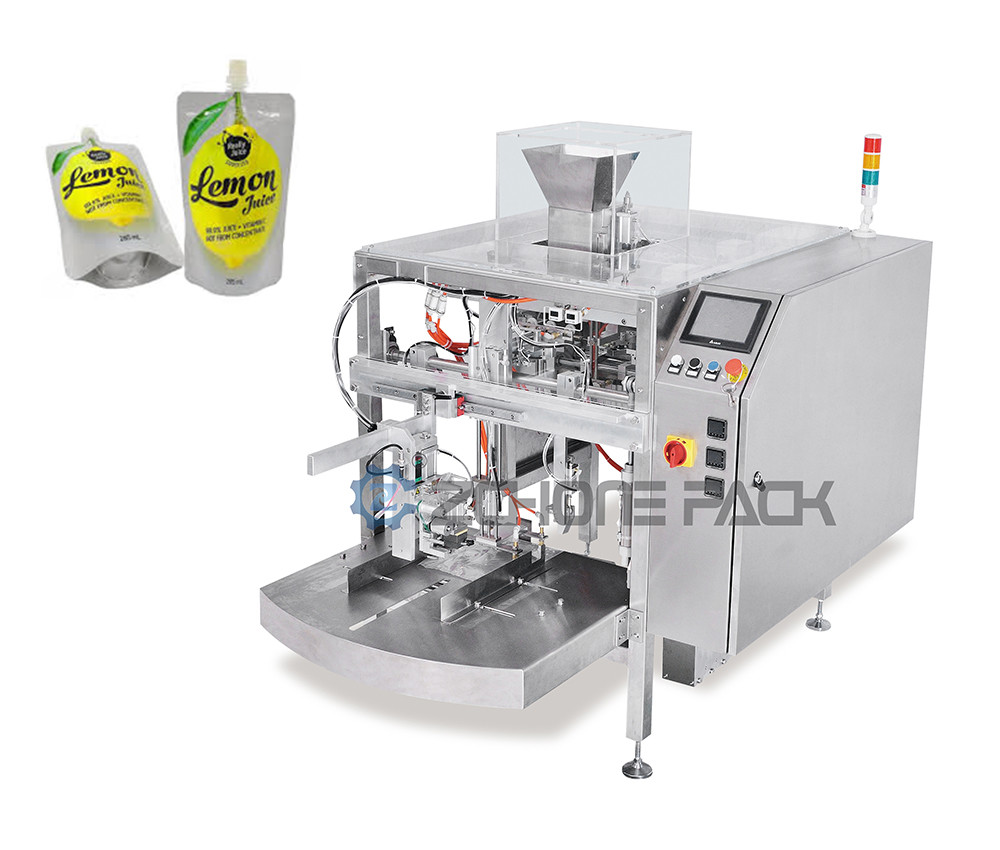

Automatic Bag Feeding Liquid Packaging Machine Stand Up Pouch Spout Pouch Juice Sauce 1



Mini Doypack packing machine has large touch screen control, high reliability and intelligence, and is equipped with safety protection. Mini Doypack packing machine is a multifunctional packing machine, which can be equipped with different filling devices according to the nature of the filling material.



Optional:



Vibrating feeder, Z-type elevator, finished product conveyor belt, weight sorting scale, metal detector, finished product turntable, nitrogen generator, air compressor, gas storage tank, etc.

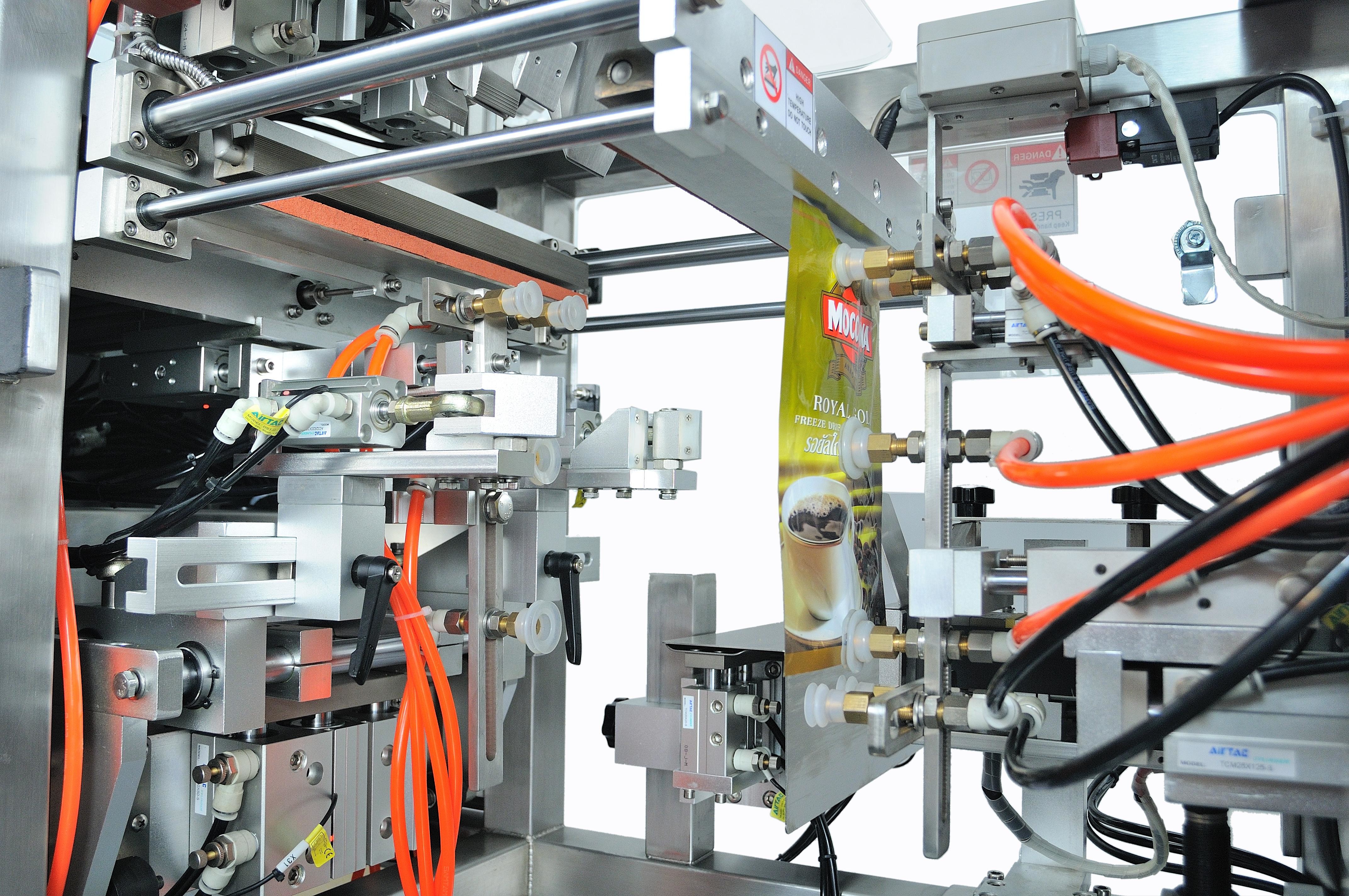

Automatic Bag Feeding Liquid Packaging Machine Stand Up Pouch Spout Pouch Juice Sauce 2
