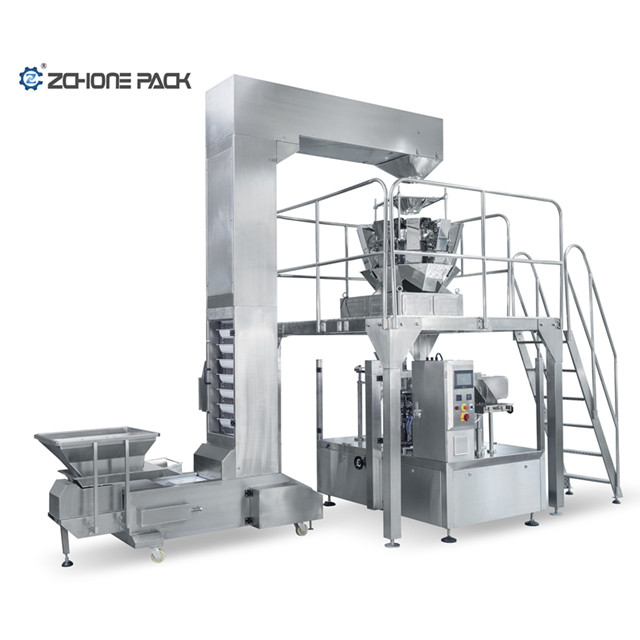

Coffee Bean Packaging Machine Fully Automatic Premade Pouch Granule Feeder

  • Coffee Bean Packaging Machine Fully Automatic Premade Pouch Granule Feeder
  • Coffee Bean Packaging Machine Fully Automatic Premade Pouch Granule Feeder
  • Coffee Bean Packaging Machine Fully Automatic Premade Pouch Granule Feeder
  • Coffee Bean Packaging Machine Fully Automatic Premade Pouch Granule Feeder
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-X8300
Minimum Order Quantity 1set
Price $18,000~$36,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1set/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Packaging Machine Product Name Multi-station Packaging Machine With Multi-head Scale
Material Stainless Steel Warranty Period 1 Year
After Warranty Service1 Video Technical SupportOnline Support After Warranty Service2 Field Maintenance And Repair Service
Highlight

Stainless steel Coffee Bean Packaging Machine

,

250mm Coffee Bean Packaging Machine

,

2.5KW Bean Packaging Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Coffee Bean Packing Machine Fully Automatic Premade pouch Granule Feeder





Eight-station packing machine Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive customized services according to your needs!)



Coffee beans refer to the fruit of plants used to make coffee. Broadly speaking, there are two kinds of coffee beans in the world, Arabica beans and Robusta beans. The fruit of coffee consists of two oval seeds facing each other. The side that connects with each other is a flat junction, which is called flat beans. But there are also ones that consist of a single round seed, called a round bean, which tastes no different.



Coffee Bean Packaging Machine Fully Automatic Premade Pouch Granule Feeder 0



With the increasing demand for coffee beans, the packaging of coffee beans has gradually entered full automation. Using a fully automatic packaging machine to package coffee beans can improve the packaging efficiency and quality of coffee beans.

The automatic bag-feeding packaging machine is an automatic equipment specially used for packaging prefabricated bags with high appearance requirements. Various granules, liquids, pastes, flakes and powders are widely used in food, medicine, beverages, chemicals, agriculture, hardware, toys and other industries. Very suitable for packaging of coffee beans.



Coffee Bean Packaging Machine Fully Automatic Premade Pouch Granule Feeder 1



Packing Machine Features



1. Made of 304 stainless steel, which conforms to the health standards of food QS and GMP;

2. Advanced German Siemens PLC control

3. Working speed of the machine can be adjusted by the variable frequency speed regulating device.

4. Overload protection, safety device, automatic alarm.

5. Can intelligently detect whether the bag is opened and whether the bag is complete. If the bag is not properly filled, it will not be heat sealed or wasted.

6. Can automatically adjust the width of the bag at the same time by mechanical swinging 8 stations, which is suitable for bags of different width.

7. Can be used to pack prefabricated bags and paper bags made of multi-layer composite film, single-layer PE, PP and other materials.

8. Adopt vacuum filter, clean and pollution-free.

9. Safety performance: when the door of the machine is opened, it will stop automatically to prevent being injured by the machine.



Coffee Bean Packaging Machine Fully Automatic Premade Pouch Granule Feeder 2
