Automatic Coffee Packing Machine Vertical Roll Film Bag Making
Place of Origin | Guangdong,China |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | ZC-VP42 |
Minimum Order Quantity | 1set |
Price | $7,500~$25,900 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15day |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Vertical Powder Packaging Machine | Automatic Grade | Automatic |
---|---|---|---|
Core Components | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox | Application | Food,Chemical,Commodity,Medical,Machinery & Hardware |
Production Capacity | 30bag/min | Weight (KG) | 560 |
Highlight | PLC Coffee Packing Machine,Commodity Coffee Packing Machine,30bag/min Automatic Coffee Packing Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |
Coffee Powder Packing Machine Vertical Roll Film Bag Making Automatic Packaging Equipment
Machine Specification:
Model | ZC--VP32 | ZC-VP42 | ZC-VP52 | ZC-VP62 | ZC-VP730 | ZC--VP85 |
Packing Speed | 10-50 bags/min | 10-50 包/分钟 | 10-50 包/分钟 | 5~50 bag/min | 5----40 bags/min | 10~40 bags/min |
Bag Size | (长L) 50-190mm (宽W) 50-150mm | (L) 80-320mm (W) 70-200 mm | (L) 80-320mm (W) 70-200 mm | (L)120-400mm (W)110-300mm | (L)100-500mm(W) 80-350mm | (L)150-500mm (W)150-410mm |
Bag Making Form | Pillow type back seal bag (roll film for packaging material, automatic bag making by machine is upper sealing, lower sealing and back sealing.) | Pillow bag (optional: stand-up bag, prong bag, punch bag)) | Roll film for packaging materials, back seal bag | Pillow bag, stand-up bag, hole punching bag | ||
Maximum Packaging Film Width | 320mm | 420mm | 420mm | Max 2500ml | 730mm | 850mm |
Measurement Range | 500ml | 1000ml | 1000ml | 620mm | Max2000ML | Max 7500ML |
Membrane Thickness | 0.04-0.12mm | 0.04-0.10mm | 0.04-0.10mm | 0.04-0.14mm | 0.04-0.15mm | 0.04-0.14m |
Complete Set of Air Consumption | 0.8Mpa 0.5m3/min | 0.8Mpa 0.3m³/分 | 0.8Mpa 0.3m³/分 | 0.8Mpa 0.5m3/min | 0.8Mpa 0.7m3/min | 0.8ps 0.4m3/min |
Total Power/Voltage | 2.5KW/220V 50Hz | 2.7KW/220V 50Hz | 2.7KW/220V 50Hz | 4.2KW/220V 50Hz | 7.0KW 380V 50Hz | 6.5KW 220V 50Hz |
Dimensions | (L)1350*(W)820*(H)1150mm | L1480*W960*H1400mm | L1480*W960*H1400mm | L1964*W1240*H1960mm | L2100*W1640*H2040mm | |
Switchboard Weight | 380kg | 450kg | 450kg | 450kg | 680KG | 780KG |
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
The emergence of cold brewed freeze-dried coffee is not only a technological innovation in the coffee field, but also a new lifestyle that coffee lovers can choose. It has both the aroma of freshly ground coffee and the convenience of instant coffee, which is suitable for any The scene is perfect. Cold-extracted freeze-dried coffee powder is a sparkling coffee powder obtained by freezing and subliming the cold-extracted coffee liquid in a vacuum environment of minus 40°C through a freeze-drying equipment.
The price of cold-brewed freeze-dried coffee powder is generally higher than that of ordinary coffee powder, and it is often matched with exquisite packaging. Using a vertical packaging machine can automatically complete feeding, measuring, bag making, filling, sealing, bag cutting, printing, and counting. , conveying and a series of functions, can be fully automatic packaging of freeze-dried coffee powder.

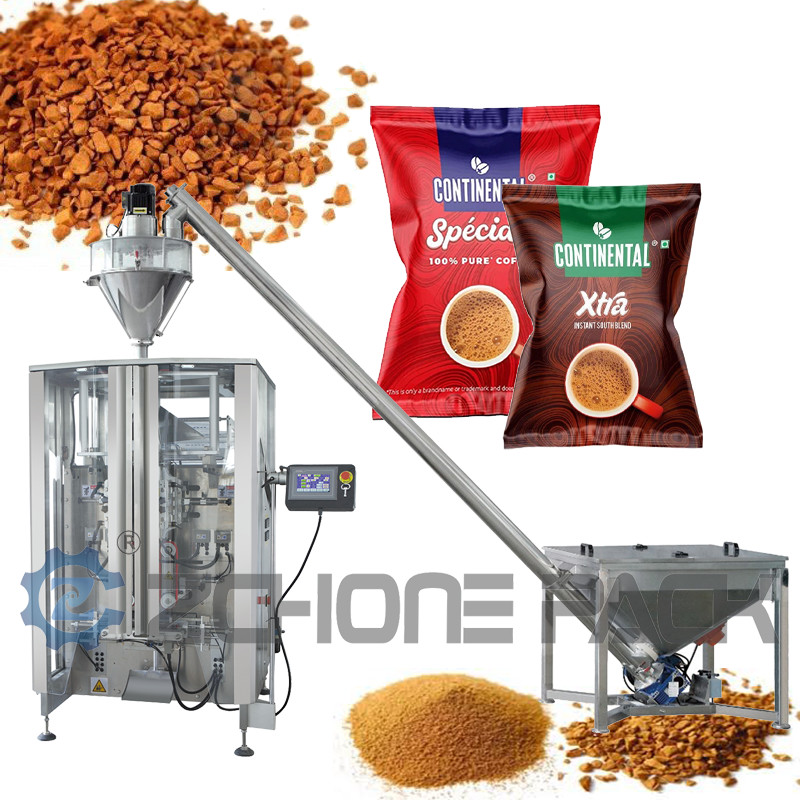

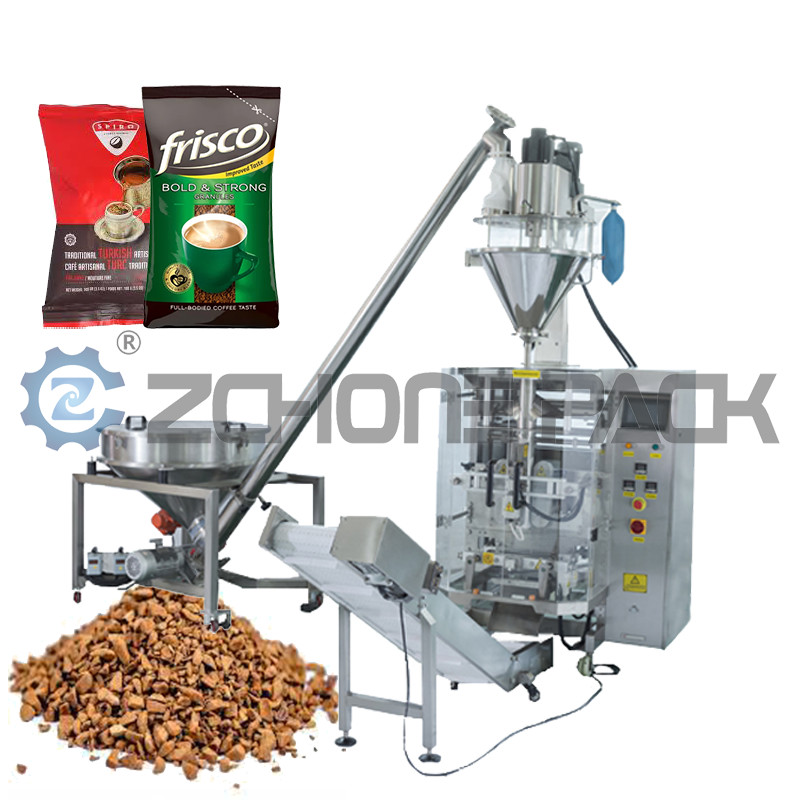

The automatic vertical bag making and packaging unit consists of a closed screw elevator, a screw metering machine, a vertical bag making and packaging machine and a finished product conveyor. Manufacturers can choose different packaging machine models according to their needs.
