Hanging Ear Coffee Capsule Packing Machine Coffee Drip Filter Bag Nylon Bag
Place of Origin | Guangdong,China |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | ZC-181 |
Minimum Order Quantity | 1set |
Price | $8,300~$16,800 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 work days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Coffee Packaging Machine | Driven | Pneumatic |
---|---|---|---|
Capacity | About 40 Bags/min | Inner Film Width | 180 Mm (75*90mm) |
Outer Film Width | 200 Mm (100*125mm) | Customized Bag Size | Available |
High Light | Pneumatic Coffee Capsule Packing Machine,Hanging Ear Coffee Capsule Packing Machine,Nylon Bag Coffee Stick Packing Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |
Coffee Packing Machine Hanging Ear Coffee Drip Filter Bag Nylon Bag Non-woven PLA Fiber Filter Bag
Technical Specifications:
Item | Descriptions |
Driven | Pneumatic |
Capacity | About 40 bags/min (determined by coffee materials and film) |
Inner Film Width | 180 mm (75*90mm) |
Outer Film Width | 200 mm (100*125mm) |
Customized Bag Size | Available (pls tell us your size in advance) |
Sealing Method | Full ultrasonic sealing for inner bag; Heat sealing for envelope |
Sealing Type | 3-sde sealing |
Filling Range | 8~15 g |
Feeding System | Slant auger + mixer |
Feeding Capacity | 5 Kg |
Air Consumption | 0.8MPa, 0.3M3/minute |
Power | 3.7 Kw |
Voltage | 220V, single phase; 50HZ; |
Dimension | L 1350* W 850* H 2200 mm |
Reference Weight | 560 kg |

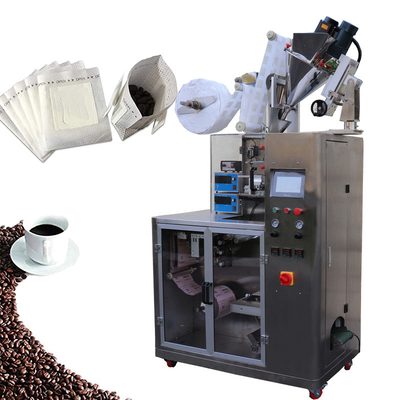

The hanging ear coffee packaging machine adopts PLC controller and PID adjustment temperature controller to make the mechanical operation more convenient, accurate and stable. The combination of ultrasonic technology sealing, volumetric quantitative measurement and various devices enables the equipment to automatically complete bag making, The whole process of metering, filling, sealing, slitting and counting greatly improves the packaging efficiency per minute.
Applications:

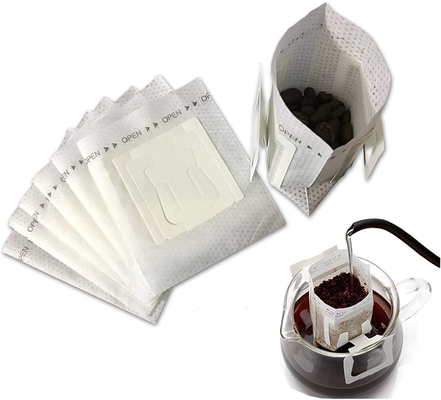

Hanging ear coffee packing machine adopts the FULLY ULTRASONIC SEALING, specially designed to pack DRIP COFFEE BAG with envelope.
Widely applications for drip coffee filter bag, rectangular nylon bag, non-woven fabrics, and PLA fiber coffee etc which can be sealed by ultrasonic method.
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q4:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
