Product Description

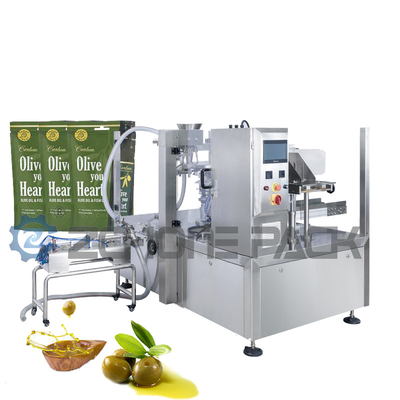

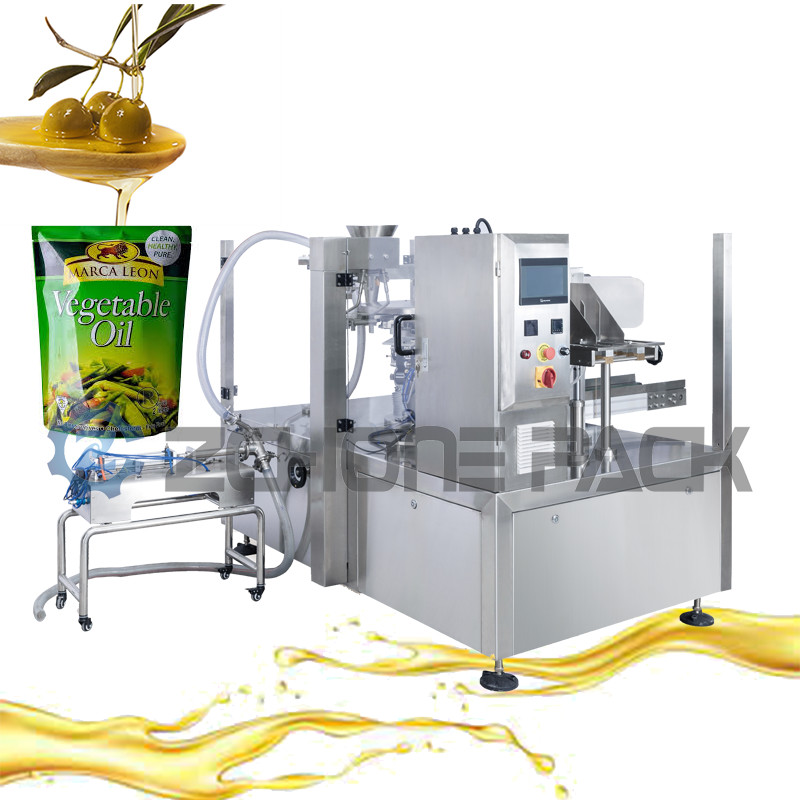

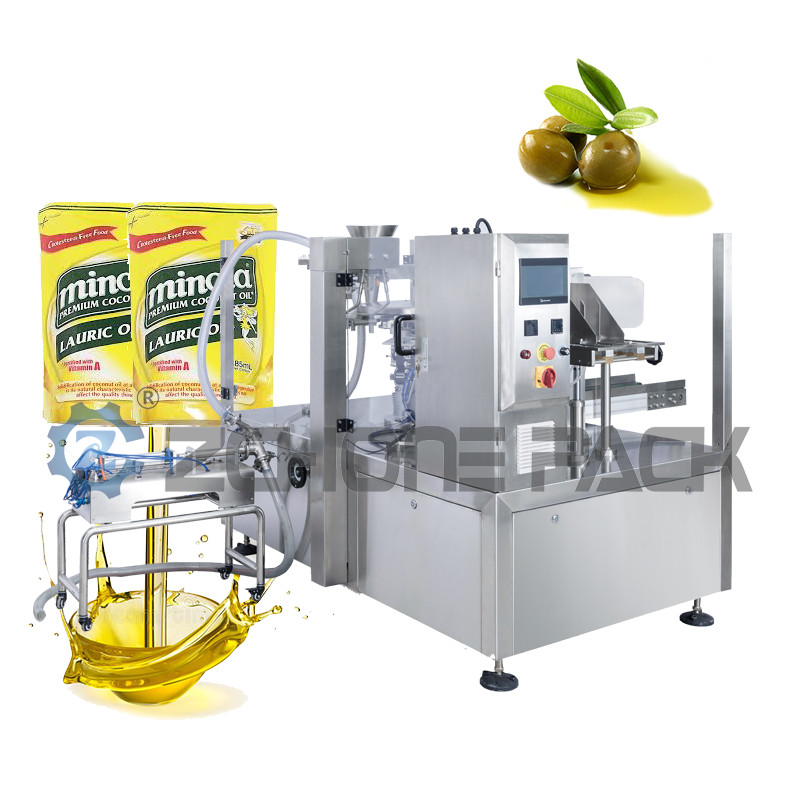

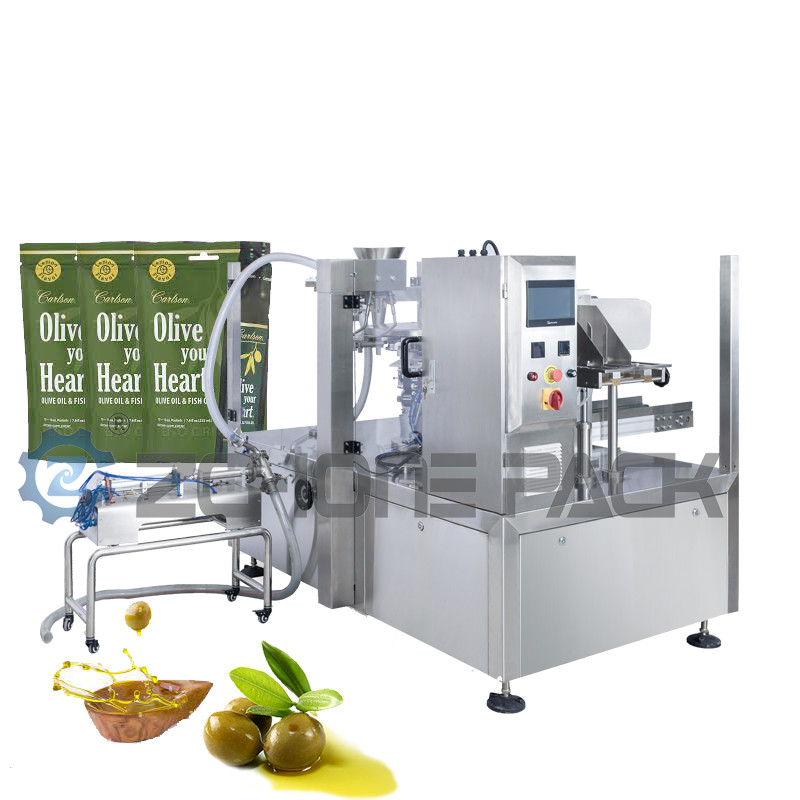

Oil Bag Packaging Machine Olive Oil Peanut Oil Vegetable Oil Prefabricated Bag Automatic Packaging
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. | ||
| Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag | ||
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
|
Measurement accuracy |
*≤±0.5~1%, depending on the measuring equipment & materials. | ||
| Maximum bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | ||
| Total Powder/Voltage | 1.5KW 380V 50/60Hz | 1.8KW 380V 50/60Hz | 2KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM | ||
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1300kg | 1500kg |
| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. | ||
| Applicable scope | Liquid/paste type: Oil,milk,detergent liquid, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc | ||
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
A bag oil packaging machine is an efficient, accurate, and stable automatic packaging equipment, which can be widely used in the packaging of liquid products in food, medicine, cosmetics, pesticides, and other industries. Our bag oil packaging machine adopts advanced technology and high-quality materials, which can realize accurate metering, sealing, cutting, and finished product delivery, ensuring the quality and hygiene of your product packaging.
Our bagged oil packing machine has the following features:
Efficiency: The machine can automatically complete a series of operations such as feeding, metering, sealing, cutting, and finished product delivery of oil products, which greatly improves packaging efficiency, reduces manual operations and waste, and greatly reduces labor costs.
Accuracy: The machine adopts an advanced metering system and control technology, which can precisely control the capacity and sealing quality of each bag to ensure that each package meets the requirements and avoid the influence of human factors on the quality of the package.
Stability: The machine adopts high-quality materials and advanced production technology. The structure design of the machine is reasonable, the performance is stable and reliable, and it can run stably for a long time, avoiding the downtime and loss caused by machine failure.
Ease of operation: The machine adopts a simple and easy-to-understand operation interface and control system, which can be operated and maintained by ordinary workers without skilled technicians, greatly reducing training and maintenance costs.
Our bagged oil packaging machine can not only meet your packaging needs, but we also provide first-class after-sales service, including installation, commissioning, maintenance, and upgrading, etc., to ensure the stable operation of your machine and reduce your investment risk.
If you have a demand for liquid product packaging, please contact us, we will provide you with the best quality products and services according to your actual needs, and make your packaging more efficient, accurate, stable, and hygienic.
