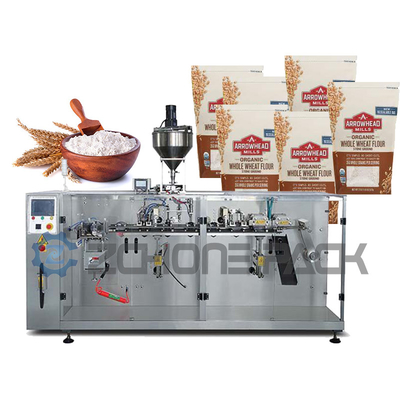

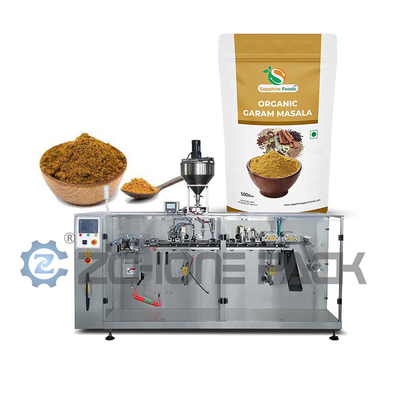

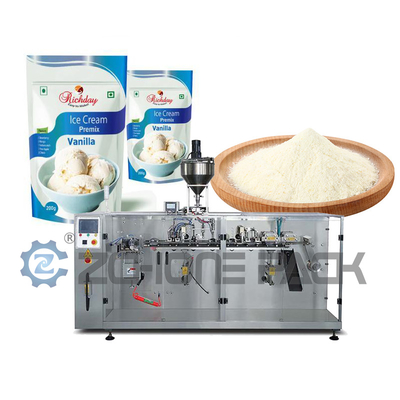

5KW Doypack Packing Machine Pre - Made Bag Hot Spice Nozzle Zipper Pouch Filling Packaging Machine
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | ZCHONE PACK |
| Certification | ISO，CE |
| Model Number | ZC-S110S |
| Minimum Order Quantity | 1set |
| Price | $15,980~$19,980 |
| Packaging Details | Standard export wooden case packaging |
| Delivery Time | 15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Multi-Function Packaging Machine | Product Name | Horizontal Packaging Machine |
|---|---|---|---|
| Core Components | Motor, Pressure Vessel, Pump, PLC, Other, Gear, Bearing, Engine, Gearbox | Packing Film Material | OPP.PE.PVC.OPP.CPP.PTPE.KOP.Aluminum Film |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops | Application | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware |
| Highlight | Multi Station Doypack Packing Machine,Zipper Pouch Doypack Packing Machine,5KW Doypack Packing Machine |
||
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description
Pre-made Bag Hot Spice Nozzle Zipper Pouch Bag Filling Packaging Machine
A multi-station horizontal preformed bag packaging machine is a mechanical equipment used to put products into preformed bags (such as plastic bags, aluminum foil bags, etc.), seal and package them. It has multiple workstations or workstations that can carry out multiple packaging steps at the same time, improving packaging efficiency and production capacity.
Multi-station horizontal premade bag packaging machines usually have the following functions and features:
Premade bag supply: The packaging machine is usually connected to a premade bag supply system, which can automatically supply premade bags to the work station. Preformed bags can be supplied to the working area of the packaging machine one by one via a conveyor belt, vibrator or other device.
Product filling: A multi-station horizontal pre-made bag packaging machine has multiple work stations, each of which is used to fill products into pre-made bags. Products can be materials in different forms such as solid, powder, granular or liquid. Each work station usually has metering and control functions to ensure the exact amount of product in each pre-made bag.
Sealing and sealing: After the product is filled, the multi-station horizontal prefabricated bag packaging machine performs sealing and sealing operations to ensure the sealing and freshness of the product. Sealing and sealing can use heat sealing, ultrasonic sealing or other sealing techniques, depending on the material of the premade bag and the characteristics of the product.
Label or date printing: The multi-station horizontal premade bag packaging machine also has label attachment or date printing functions. Labels or date information can be printed on the premade bags during the packaging process to facilitate product traceability and identification.
Detection and rejection: Horizontal packaging machines can be equipped with detection systems to detect abnormalities during the packaging process, such as missing seals, missing products, etc. If problems are found, the machine can automatically reject or alarm to ensure packaging quality.
The multi-station horizontal prefabricated bag packaging machine can be applied to a variety of industries, such as product packaging in food, chemical, pharmaceutical and other fields. They can improve packaging efficiency, ensure packaging quality, and adapt to premade bags of different specifications and requirements.
Machine Specification:
| Model: | ZC-S210 | ZC-S110S | ZC-S140S | ZC-S160D | ZC-S160S | ZC-S160 | ZC-S210X | ZC-S260 |
| Packing speed: | 15-35bags/min | 20-80bags/min | 30-90bags/min | 20-350bags/min | 40-70bags/min | 10-50bags/min | 10-45bags/min (depending on product weight) | 20-40bags/min |
| Total power: | 2.5KW | 5KW (single host) | 5KW (single host) | 3.5KW (single host power, additional system power) | 5KW(single host) | 2.0KW(single host) | 2.5KW(single host) | 4.5KW(Single host power, supporting system power plus) |
| Package dimensions | 80-160mm/130-320mm (W*L) (the adjustable range of M bag is 50mm) (the width of the packaging bag is slightly different according to the prefabricated bag) | 100-230mm/70-110mm(L*W) | 100-250mm/90-140mm(L*W) | Bag width: 65-85mm Bag length: 110-230mm (Special-shaped bag width specifications are customized according to customer specifications and cannot be adjusted) |
80-160*110-230 (bag width*bag length) | 100-210mm/110-300mm(W*L) | 140-260mm*160-380mm(W*L) | |
| Power supply: | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Total Weight: | 600KG | 1800KG | 2000KG | 800KG | 2000KG | 800KG | 900KG | 1200KG |
| Packaging capacity: | 20g-1000g (depending on the specific material) | 10g-200g | 10g-400g | 10g-100g | 10g-100g | 10g-500g (depending on the material) | 300g-2kg (depending on the material) | 200g-2kg(depending on the product) |
| Air consumption: | 0.7m3/min | :0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min |
| Bag Type: | M-type bag, M-type stand-up bag and other prefabricated bags | Various premade bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. | Various premade bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. | Various prefabricated bags such as stand-up bags, four-side sealing bags, paper bags, etc. | Various prefabricated bags such as stand-up bags, four-side sealing bags, tote bags, paper bags, etc. | Four-side sealing bag, three-side sealing bag, special-shaped bag, paper bag and other prefabricated bags | Various prefabricated bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc | Various prefabricated bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. |
| Dimensions: | 2900*1250*1350mm | 2760*1550*1350mm | ||||||
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
