Liquid Packaging Machine Automatic Bagged Products Fast Filling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Multi-Function Packaging Machine | Product Name | Multi-station Liquid Packaging Machine |
|---|---|---|---|
| Voltage | 220V/380V | Automatic Grade | Automatic |
| Application | Food,Chemical,Medical,Commodity,Beverage | Condition | New |
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

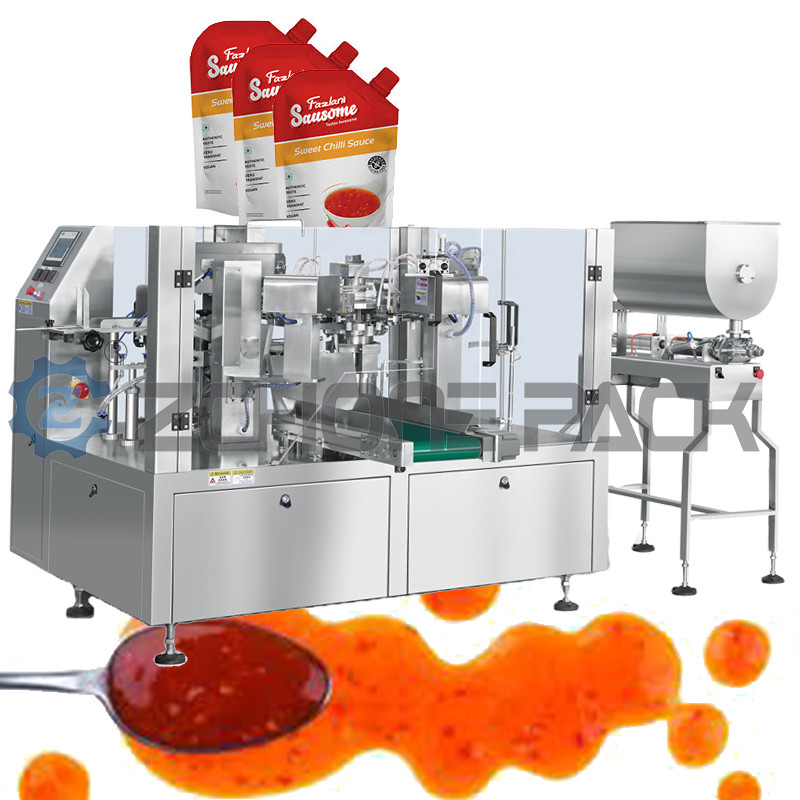

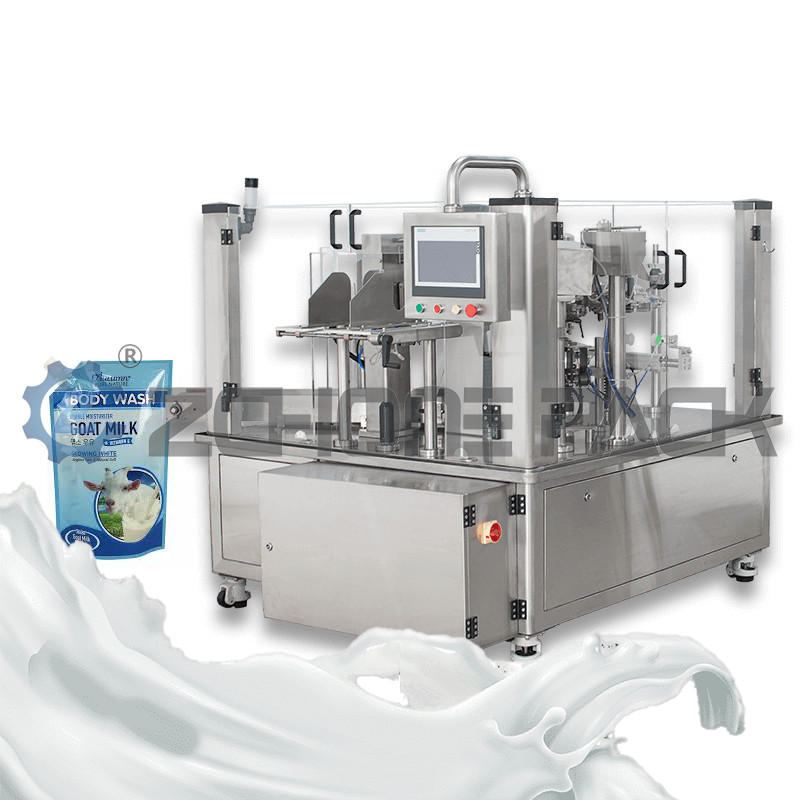

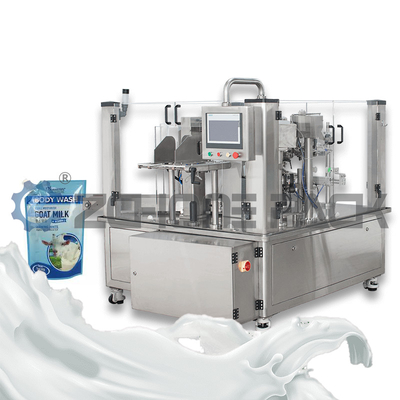

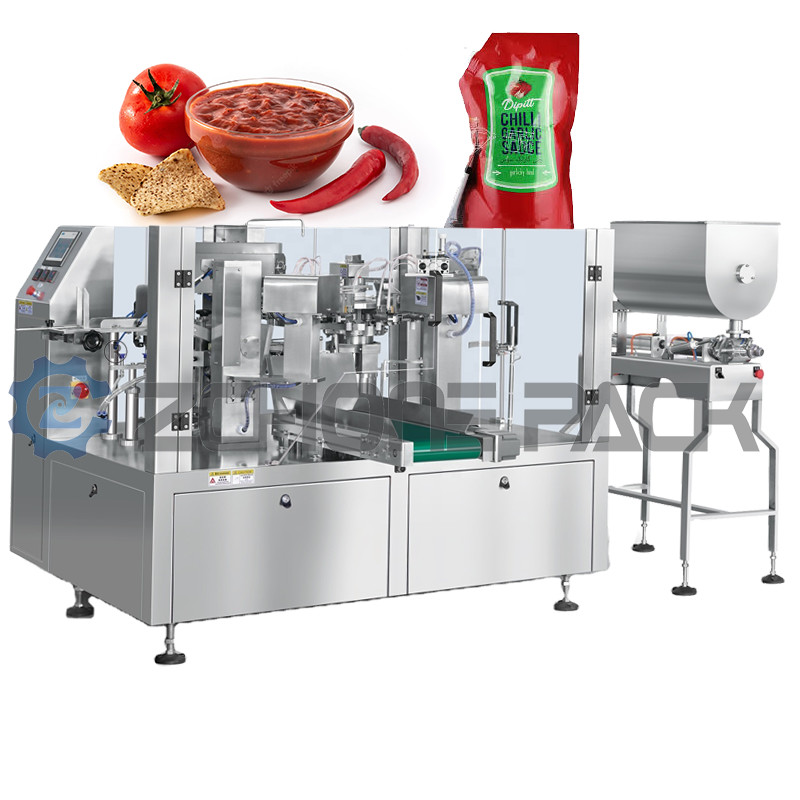

Liquid Packaging Machine Automatic Bagged Products Fast Filling
The eight-station liquid bagged product packaging machine is a device used for packaging liquid products. It has eight working stations and can perform eight packaging operations at the same time. This machine is mainly used to fill liquid products (such as beverages, juices, condiments, etc.) into plastic or composite bags, seal and package them.
An eight-station liquid bag product packaging machine usually includes the following main components:
Conveying system: used to feed the bags to be packaged into the working station of the packaging machine in a certain rhythm and sequence.
Filling system: Liquid products are drawn from the reservoir and injected into the bag through a straw or other filling device. Each work station has an independent filling device.
Sealing system: After filling is completed, the bag mouth will be heated and sealed by the sealing device to ensure the sealing and shelf life of the product.
Control system: used to control the operation of the entire packaging machine, including adjustment of filling volume, control of sealing temperature, synchronization of work stations, etc.
The working principle of the eight-station liquid bagged product packaging machine is that the bag enters the working station from the conveying system, and then the filling device injects the liquid product into the bag, and then the sealing device heats and seals the bag mouth, and finally completes a packaging cycle. With the continuous circulation of work stations, continuous packaging operations can be carried out efficiently.
The advantages of this packaging machine include high efficiency, simultaneous operation of multiple work stations, precise filling volume control and good sealing performance.
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. | ||
| Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag | ||
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
|
Measurement accuracy |
*≤±0.5~1%, depending on the measuring equipment & materials. | ||
| Maximum bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | ||
| Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM | ||
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1400kg | 1500kg |
| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. | ||
(We can provide you with exclusive customized services according to your needs!)
Our liquid feeding pouch packing machine can automatically adjust the width of the bag, and uses 304 stainless steel food material in the contact part with the material, which meets the hygienic requirements.
