Shaped Bag Stand-up Pouch Packaging Machine High-Speed Fully Automatic Packaging Equipment
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | ZCHONE PACK |
| Certification | ISO，CE |
| Model Number | ZC-S140 |
| Minimum Order Quantity | 1set |
| Price | $15,980~$19,980 |
| Packaging Details | Standard export wooden case packaging |
| Delivery Time | 15 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Multi-Function Packaging Machine | Dimension(L*W*H) | L1900*W1500*H1600 |
|---|---|---|---|
| Packaging Type | Stand-up Pouch, Bags, Pouch | Voltage | 220V 380V 50/60HZ |
| Core Components | Motor, Pressure Vessel, Pump, PLC, Other, Gear, Bearing, Engine, Gearbox | Packing Film Material | OPP.PE.PVC.OPP.CPP.PTPE.KOP.Aluminum Film |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops | Application | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware |
| Highlight | Fully Automatic Pouch Packaging Equipment,Stand Up Pouch Packaging Machine,High Speed Pouch Packaging Equipment |
||
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

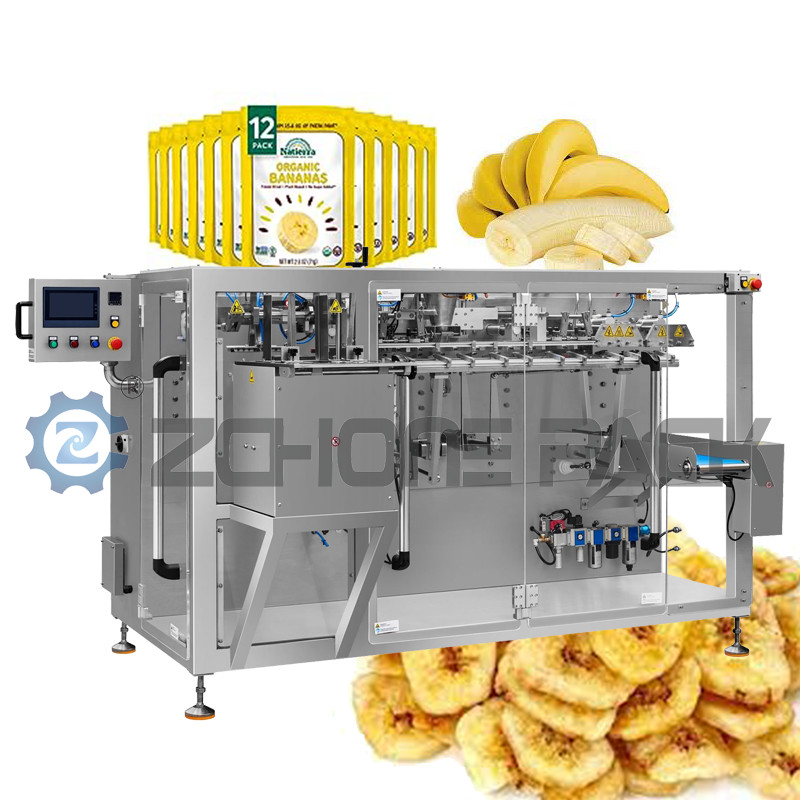

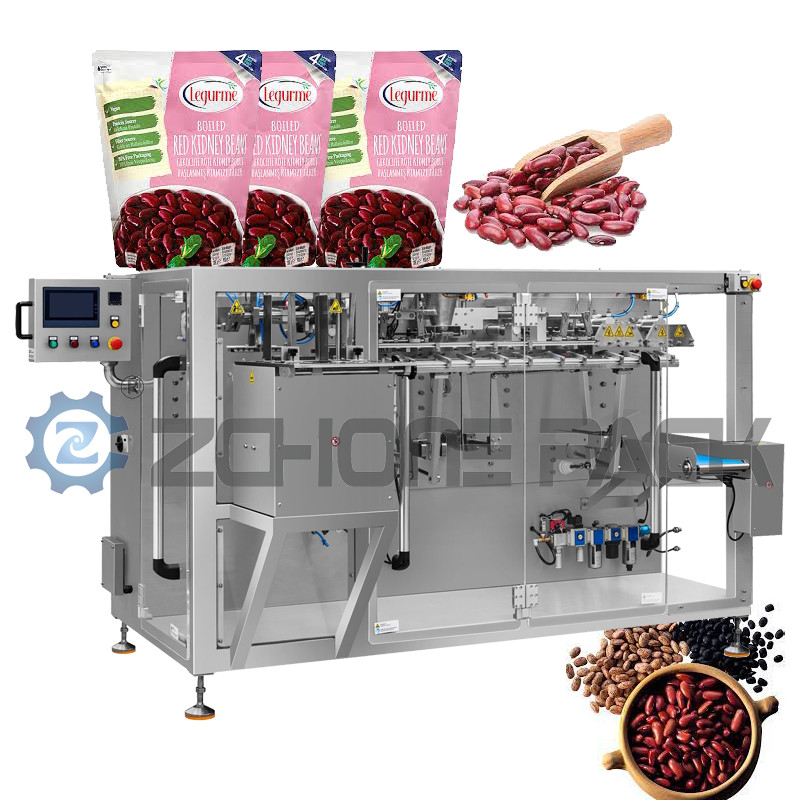

Shaped Bag Stand-up Pouch Packaging Machine Economical Small Footprint High-Speed Fully Automatic Packaging Equipment
Horizontal special-shaped bag packaging machine is a device used for packaging special-shaped bags or non-standard shaped bags. It is an automated machine that places products into bags, seals and packages them. This kind of packaging machine is usually suitable for various irregular-shaped bags, such as triangular bags, polygonal bags, irregular curve-shaped bags, etc.
Horizontal special-shaped bag packaging machines usually have the following functions and features:
Automated operation: It can automatically complete bag feeding, product filling, bag sealing and other operations to improve production efficiency.
Adaptable: Can adapt to bags of many shapes and sizes, providing high flexibility.
High-precision positioning: Through sensors and image recognition technology, the position of the bag can be accurately positioned to ensure that the product is correctly loaded into the bag.
Compact design: usually adopts compact structural design, occupying less space and convenient for installation and adjustment on the production line.
Adjustability: Can be adjusted according to the shape and size of the product to suit different packaging needs.
Easy to operate: The user-friendly interface and operating control system make it easy for operators to set up and monitor.
Horizontal special-shaped bag packaging machines are widely used in food, cosmetics, pharmaceutical and other industries to improve packaging efficiency and ensure product quality and hygiene.
Machine Specification:
| Model: | ZC-S210 | ZC-S110S | ZC-S140S | ZC-S160D | ZC-S160S | ZC-S160 | ZC-S210X |
| Packing speed: | 15-35bags/min | 20-80bags/min | 30-90bags/min | 20-350bags/min | 40-70bags/min | 10-50bags/min | 10-45bags/min (depending on product weight) |
| Total power: | 2.5KW | 5KW (single host) | 5KW (single host) | 3.5KW (single host power, additional system power) | 5KW(single host) | 2.0KW(single host) | 2.5KW(single host) |
| Package dimensions | 80-160mm/130-320mm (W*L) (the adjustable range of M bag is 50mm) (the width of the packaging bag is slightly different according to the prefabricated bag) | 100-230mm/70-110mm(L*W) | 100-250mm/90-140mm(L*W) | Bag width: 65-85mm Bag length: 110-230mm (Special-shaped bag width specifications are customized according to customer specifications and cannot be adjusted) |
80-160*110-230 (bag width*bag length) | 100-210mm/110-300mm(W*L) | |
| Power supply: | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Total Weight: | 600KG | 1800KG | 2000KG | 800KG | 2000KG | 800KG | 900KG |
| Packaging capacity: | 20g-1000g (depending on the specific material) | 10g-200g | 10g-400g | 10g-100g | 10g-100g | 10g-500g (depending on the material) | 300g-2kg (depending on the material) |
| Air consumption: | 0.7m3/min | :0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min |
| Bag Type: | M-type bag, M-type stand-up bag and other prefabricated bags | Various premade bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. | Various premade bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. | Various prefabricated bags such as stand-up bags, four-side sealing bags, paper bags, etc. | Various prefabricated bags such as stand-up bags, four-side sealing bags, tote bags, paper bags, etc. | Four-side sealing bag, three-side sealing bag, special-shaped bag, paper bag and other prefabricated bags | Various prefabricated bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc |
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
