Liquid Sauce Bag Product Packaging Machine Food Grade Stainless Steel Safety

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-200
Minimum Order Quantity 1set
Price $18,000~$36,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1set/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Packaging Machine Product Name Rotary Packaging Machine
Function FILLING, Labeling, Sealing Key Selling Points Automatic
Maximum Bag Width 200mm Warranty 1 Year
Highlight

Safety Liquid Sauce Bag Packaging Machine

,

Liquid Sauce Bag Packaging Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Liquid Sauce Bag Product Packaging Machine Food Grade Stainless Steel Safety

The sauce liquid bag product packaging machine is a machine equipment specially used for packaging sauces and liquid products. Its main function is to inject sauce or liquid products into bags and seal the bags to ensure the sealing and freshness of the products.



The sauce liquid bag product packaging machine usually includes the following main components:



Feeding system: used to feed sauce or liquid products to the hopper or storage tank of the packaging machine.



Bag conveying system: take the pre-made bags out of the storage area and convey them to the next workstation.



Filling system: inject sauce or liquid products into the bags through injection pipes or nozzles. The filling system usually uses a metering device to ensure the consistent quantity and quality of the products in each bag.



Sealing system: used to seal the bags of filled products to ensure sealing and prevent leakage. The sealing system usually uses a heating element (such as a heat sealing knife) or a pressure device to complete the sealing operation.



Control system: used to monitor and control the entire packaging process, including adjusting the filling amount, controlling the conveying speed, monitoring the sealing quality, etc.

The models and specifications of sauce liquid bag product packaging machines can vary according to specific packaging needs.



This type of packaging machine is widely used in the food industry, especially for packaging various sauces, condiments, jams, salad dressings and other liquid products. It can improve packaging efficiency, ensure product hygiene and quality, and extend the shelf life of products.



Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)

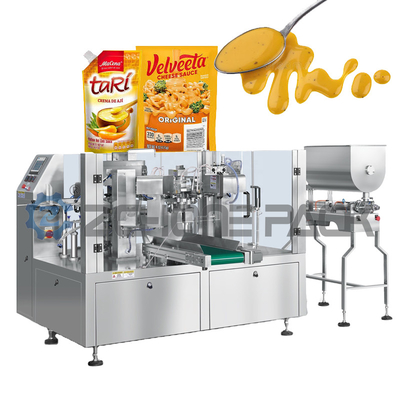

Liquid Sauce Bag Product Packaging Machine Food Grade Stainless Steel Safety 0

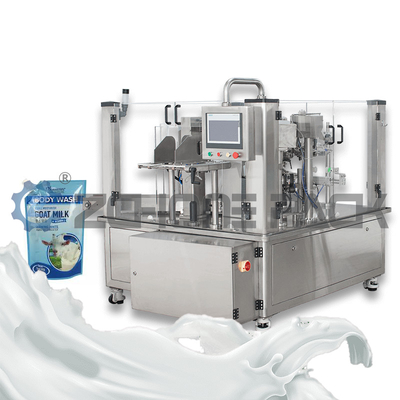

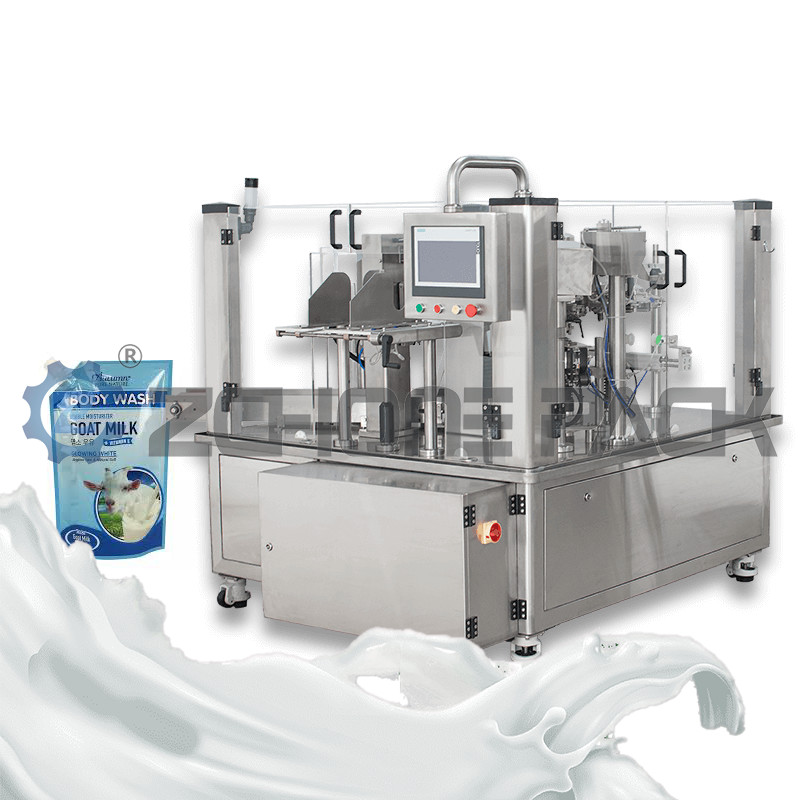

Liquid Sauce Bag Product Packaging Machine Food Grade Stainless Steel Safety 1



Scope of application of pet food bag packing machine: dog food, cat food, rabbit food, pet freeze-dried, dried small fish, yogurt cubes, etc.



Applicable bag quality: PE composite film, aluminum foil film, aluminized film and other composite material films.



Applicable bag types: stand-up bags, zipper bags, slanted-mouth stand-up bags, flat bags (three-side sealing, four-side sealing, handbag, back-sealing bag, hemming bag, etc.)

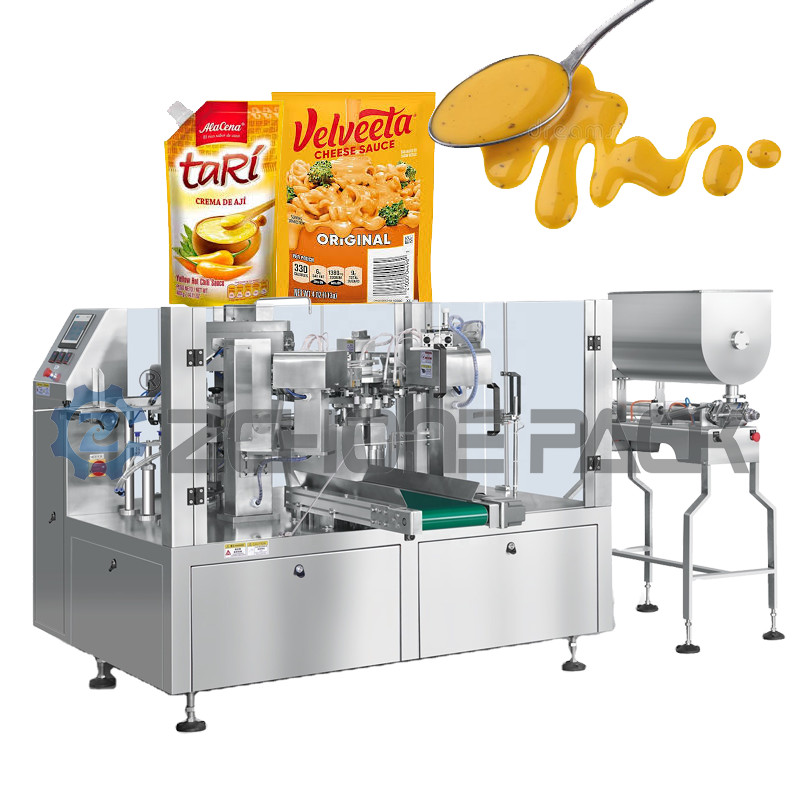

Liquid Sauce Bag Product Packaging Machine Food Grade Stainless Steel Safety 2
