Eight-Station Prefabricated Bag Liquid Packaging Machine Liquid Paste Viscous Fluidity Material Liquid Pumps
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | ZCHONE PACK |
| Certification | ISO，CE |
| Model Number | ZC-8200 |
| Minimum Order Quantity | 1set |
| Price | $18,000~$24,900 |
| Packaging Details | Standard export wooden case packaging |
| Delivery Time | 15 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Spout Packing Machine | Place Of Origin | Foshan China |
|---|---|---|---|
| Application | Beverage, Liquid & Juice | Packaging Material | Plastic |
| Voltage | 220V 380V 50/60HZ | Key Selling Points | Automatic |
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

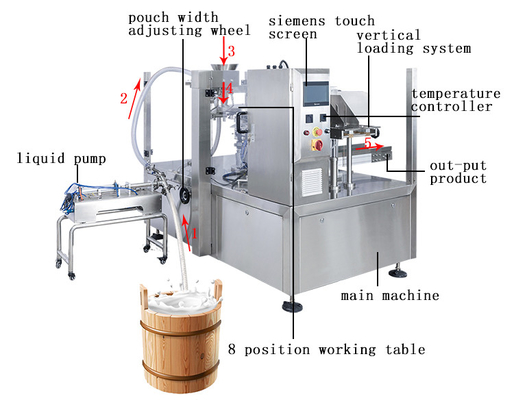

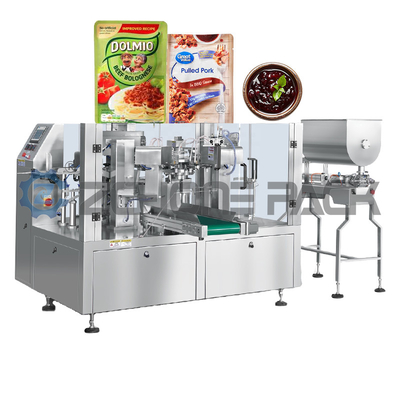

Eight-Station Prefabricated Bag Liquid Packaging Machine Liquid Paste Viscous Fluidity Material Liquid Pumps
The eight-station liquid packaging machine is an automated liquid filling and packaging equipment with eight workstations, which can efficiently complete the quantitative filling, sealing, labeling and other packaging processes of liquid products.
Main features
High efficiency: eight stations work simultaneously, significantly improving production efficiency
High precision: using advanced metering system, the filling accuracy can reach ±0.5%
Multi-function: can adapt to liquid products of different viscosities
Automation: fully automatic from filling to sealing
Hygienic design: in line with the hygiene standards of the food and pharmaceutical industries
Typical applications
Beverage industry: juice, tea, functional drinks, etc.
Dairy products: milk, yogurt, milk drinks
Condiments: soy sauce, vinegar, cooking oil
Daily chemical products: shampoo, shower gel, hand sanitizer
Pharmaceutical industry: oral liquid, syrup, etc.
Control system principle
PLC control: coordinate the action sequence of each station
Human-machine interface: set parameters, monitor operation status
Servo system: accurately control the positioning of the turntable
Feedback system: real-time adjustment of parameters such as filling volume
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. | ||
| Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag | ||
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
|
Measurement accuracy |
*≤±0.5~1%, depending on the measuring equipment & materials. | ||
| Maximum bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | ||
| Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM | ||
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1400kg | 1500kg |

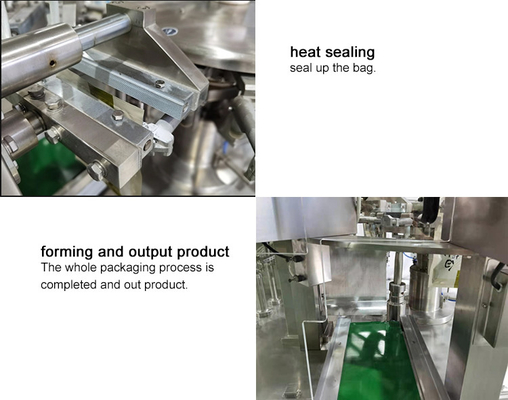

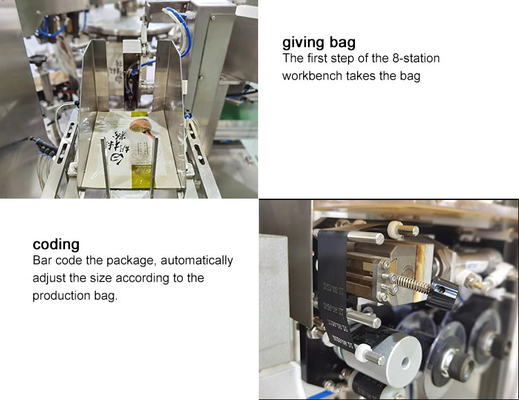

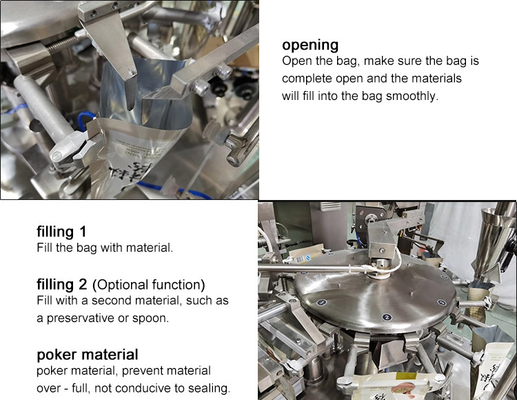

| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. | ||
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
