Sachet Type Shaped Bag Material Packaging Machine Horizontal Premade Bag Granule Solid Food Packaging Machine
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | ZCHONE PACK |
| Certification | ISO，CE |
| Model Number | ZC-S210 |
| Minimum Order Quantity | 1set |
| Price | $12,900~$16,900 |
| Packaging Details | Standard export wooden case packaging |
| Delivery Time | 15 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Horizontal Granule Packing Machine | Voltage | 220V/380V |
|---|---|---|---|
| Automatic Grade | Automatic | Condition | New |
| Application | Food,Chemical,Medical,Commodity,Machinery & Hardware | Packaging Type | Bags, Pouch，pouches |
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

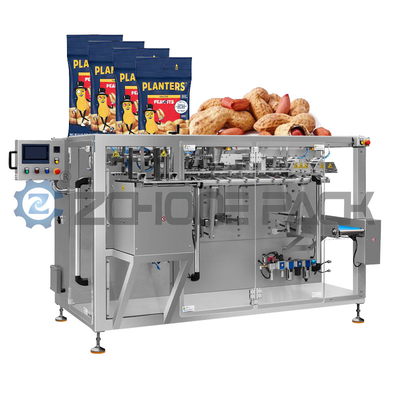

Sachet Type Shaped Bag Material Packaging Machine Horizontal Horizontal Premade Bag Granule Solid Food Packaging Machine
Horizontal special-shaped bag packaging machine is an automated equipment specially used for packaging irregular shaped, multi-size or customized bag products, widely used in food, daily chemicals, medicine, agricultural products and other industries. The following is a detailed introduction to the equipment:
1. Equipment features
Adaptability of special-shaped bags: It can handle various non-standard bag types (such as self-supporting bags, zipper bags, spout bags, special-shaped contour bags, etc.).
High-precision packaging: The servo control system is used to ensure the alignment of the seal and the precise size, which is especially suitable for uneven or soft packaging.
Versatility: It supports multiple sealing methods such as back sealing, three-side sealing, and four-side sealing, and can integrate additional functions such as nitrogen filling and vacuuming.
High degree of automation: From bag making, filling to sealing, it is fully automatic, reducing manual intervention.

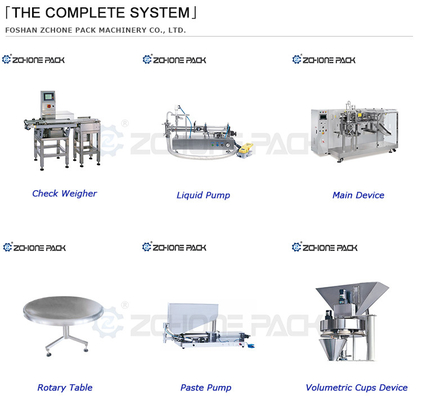

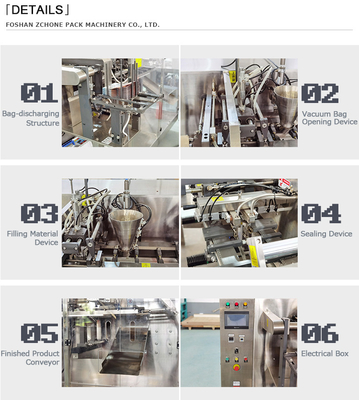

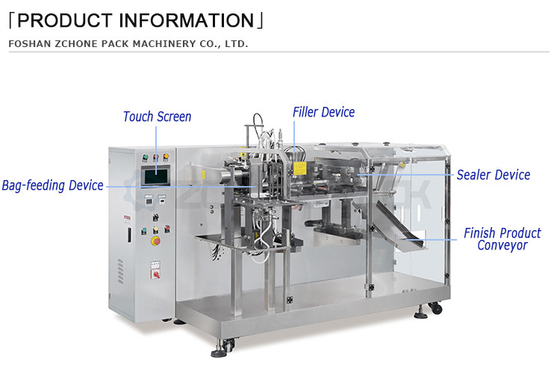

2. Core structure
Bag making system: Through pre-made roll film or sheet film, it is cut and formed according to the set shape.
Material conveying system: horizontally arranged conveyor belt or manipulator to ensure that the product enters the bag smoothly.
Filling device: select screw, measuring cup, liquid pump and other filling methods according to product characteristics.
Sealing mechanism: heat sealing, ultrasonic sealing or cold sealing technology, suitable for different materials (such as PE, aluminum foil, composite film).
Control system: PLC + touch screen, which can store multiple sets of parameters and quickly switch packaging specifications.
3. Application industry
Food: special-shaped bag packaging for nuts, snacks, sauces, frozen foods, etc.
Daily chemicals: shampoo upright bags, cosmetics sample bags.
Medicine: moisture-proof packaging of Chinese medicine granules and medical devices.
Industry: customized bag packaging for hardware parts and electronic components.
Machine Specification:
| Model: | ZC-S210 | ZC-S110S | ZC-S140S | ZC-S160D | ZC-S160S | ZC-S160 | ZC-S210X | ZC-S260 | ZC-S320 |
| Packing speed: | 15-35bags/min | 20-80bags/min | 30-90bags/min | 20-350bags/min | 40-70bags/min | 10-50bags/min | 10-45bags/min (depending on product weight) | 20-40bags/min | 20-35bags/min |
| Total power: | 2.5KW | 5KW (single host) | 5KW (single host) | 3.5KW (single host power, additional system power) | 5KW(single host) | 2.0KW(single host) | 2.5KW(single host) | 4.5KW(Single host power, supporting system power plus) | 4.5KW(Single host power, supporting system power plus) |
| Package dimensions | 80-160mm/130-320mm (W*L) (the adjustable range of M bag is 50mm) (the width of the packaging bag is slightly different according to the prefabricated bag) | 100-230mm/70-110mm(L*W) | 100-250mm/90-140mm(L*W) | Bag width: 65-85mm Bag length: 110-230mm (Special-shaped bag width specifications are customized according to customer specifications and cannot be adjusted) |
80-160*110-230 (bag width*bag length) | 100-210mm/110-300mm(W*L) | 140-260mm*160-380mm(W*L) | 160-320mm*160-380mm(W*L) | |
| Power supply: | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Total Weight: | 600KG | 1800KG | 2000KG | 800KG | 2000KG | 800KG | 900KG | 1200KG | 1500KG |
| Packaging capacity: | 20g-1000g (depending on the specific material) | 10g-200g | 10g-400g | 10g-100g | 10g-100g | 10g-500g (depending on the material) | 300g-2kg (depending on the material) | 200g-2kg(depending on the product) | 200g-3kg(depending on the product) |
| Air consumption: | 0.7m3/min | :0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min |
| Bag Type: | M-type bag, M-type stand-up bag and other prefabricated bags | Various premade bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. | Various premade bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. | Various prefabricated bags such as stand-up bags, four-side sealing bags, paper bags, etc. | Various prefabricated bags such as stand-up bags, four-side sealing bags, tote bags, paper bags, etc. | Four-side sealing bag, three-side sealing bag, special-shaped bag, paper bag and other prefabricated bags | Various prefabricated bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc | Various prefabricated bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. | Various prefabricated bags such as stand-up bags, four-side sealing bags, zipper bags, tote bags, paper bags, etc. |
| Dimensions: | 2900*1250*1350mm | 2760*1550*1350mm | |||||||
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
