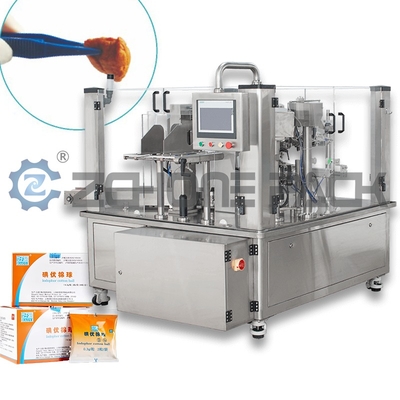

Povidone Iodine Cotton Ball Packing Machine Solid Plus Liquid Dual Material Multifunctional Packaging Machine

Povidone Iodine Cotton Ball Packing Machine Solid Plus Liquid Dual Material Multifunctional Packaging Machine

Equipment workflow design

(1) Quantitative packaging of cotton balls

Vibration plate/manipulator material distribution

Use a stainless steel vibration plate to arrange the cotton balls neatly, and use a photoelectric sensor to count or a volumetric cup to ensure that the number/weight of cotton balls in each bag is consistent (such as 5g/bag).

(2) Automatic bagging of prefabricated bags

Bagging

Put the prefabricated bag on the bag taker and automatically take the bag

Bag opening assistance

Negative pressure suction cup or clamp to open the bag mouth

(3) Quantitative injection of iodine tincture

Liquid metering system

Use a high-precision peristaltic pump or ceramic plunger pump (corrosion-resistant) to control the amount of iodine tincture (such as 2mL/bag) through a flow meter with an error of ±0.1mL.

Anti-drip design

The needle is immediately sucked back after injection, and the bag mouth is sealed with a silicone pad.

(4) Sealing and output

Heat sealing parameters

Double-pass heat sealing (temperature 180-200℃, time 1.5s) to ensure sealing. Nitrogen replacement can be added to extend the shelf life.

Defective products are automatically removed by weighing sensors or visual inspection (whether there are cotton balls/liquid levels).

Machine Specification:

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
