Multifunctional Snack Food Packaging Machine for Popcorn Chips Nuts Candies Premade Bag Packing Line

Place of Origin	Guangdong，China
Brand Name	ZCHONE PACK
Certification	ISO，CE
Model Number	ZC-8200
Minimum Order Quantity	1set
Price	$18000
Packaging Details	Standard export wooden case packaging
Delivery Time	15
Payment Terms	L/C, D/A, D/P, T/T, Western Union,
Supply Ability	1/sets/15day

Product Details

Type	Automatic Packaging Machine	Product Name	Food Granule Multi-station Packaging Machine
Dimension(LWH)	L1900W1400H1450	Weight (KG)	1300
Voltage	110V 220V 380V 50hz/60hz	Production Capacity	20bag/min, 50bag/min, 30bag/min
Highlight	multifunctional snack packaging machine , premade bag packing line , popcorn chips nuts packing machine

You can tick the products you need and communicate with us in the message board.

	Packing Machine Type
checkbox	Granule Packing Machine
checkbox	Liquid Packing Machine
checkbox	Powder Packing Machine
checkbox	Stand-Up Pouch Packing Machine
checkbox	Vertical Packing Machine
checkbox	Horizontal Packing Machine
checkbox	Tea Bag Machine
checkbox	Coffee Bean Packing Machine
checkbox	Horizontal Packing Machine

Leave a Message

Packing Machine Type

Product Description

Eight-Position Rotary Packager · Snack Industry Series

Rotary Premade Pouch Packing Machine for Snack Foods

Precision-bagging popcorn, potato chips and your best-selling snacks — gentle on fragile chips, airtight on freshness, and ready for 24/7 production lines.

20–60 bags/min

±1% accuracy

20–2000 g filling range

8 positions

Get a Quote Now View Specifications

8-POSITION INDEX DUAL-STATION FILL Z-TYPE ELEVATOR

The Machine

One Continuous 8-Step Cycle. Zero Film Waste.

Our rotary premade pouch packing machine is purpose-engineered for the snack food industry. Using an eight-position rotary indexing system, it opens, fills, and seals premade pouches in one continuous cycle — no film forming, no seal failure, no downtime between bag changes.

Whether you pack potato chips, popcorn, puffed corn snacks, nuts, or candy, the machine delivers ±1% filling accuracy, a 20–2000g weighing range, and professional, retail-ready seals at speeds your production line can actually keep up with.

Every machine is built with food-grade stainless steel, PLC-driven motion control, and a user-friendly touchscreen interface — simple to operate, simple to maintain, and built to run for years.

PRODUCTION LINE

Core Advantages

Built for Snack Lines That Run Every Day

Eight reasons why snack manufacturers choose this rotary packager for fragile, oily, high-turnover products.

Gentle Handling

Eight-position rotary system with controlled bag opening and soft product drop minimizes breakage — chips and popcorn stay whole, attractive, saleable.

FRAGILE PRODUCTS

±1% Filling Accuracy

High-precision weighing means less giveaway, fewer rejected bags, and tighter production costs you can measure.

LESS GIVEAWAY

20–2000g Wide Range

From single-serve snack packs to family-size bags — one machine, one line, full SKU coverage without a second purchase.

FULL SKU COVERAGE

Dual-Station Filling

Two independent filling stations load two products in one bag — chips + seasoning, popcorn + flavor powder — in a single cycle.

FILLING 1 + FILLING 2

20–60 Bags/Min Speed

Eight synchronized stations keep every cycle efficient. Speeds scale with your measuring equipment, product, and film.

SCALABLE OUTPUT

6+ Product Categories

Block, granular, powder, liquid/paste, pickles and more — switch product category with a quick changeover, no second line required.

MULTI-INDUSTRY

Wide Pouch Compatibility

Zipper bags, stand-up pouches, 3-side-seal, four edge-sealing, and custom special bags. Laminated film, PPI, PE and more.

5+ BAG TYPES

Quick Changeover

PLC + touchscreen controls and servo-assisted adjustments let operators change pouch size in minutes — no tools, no specialists.

10–15 MIN

At a Glance

Eight Synchronized Stations. One Continuous Cycle.

The numbered rotary table below is where every pouch gets opened, filled, sealed, and discharged — all in one synchronized motion.

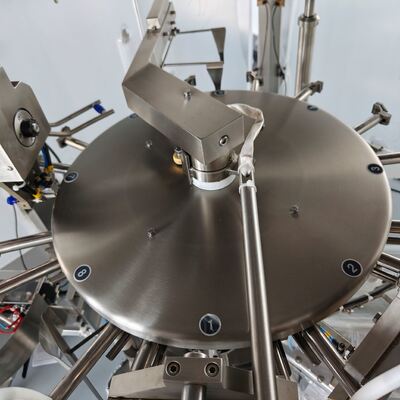

Numbered Rotary Indexing Table

Each numbered position performs a single dedicated job. As the table rotates one station at a time, pouches move through the full 9-step cycle with zero waiting time between operations.

8 servo-driven stations
Food-grade 304 stainless steel
±0.2mm indexing accuracy
10–15 min pouch size changeover

9-Step Working Flow

From Empty Pouch to Retail-Ready Bag

All 9 steps captured on our production line — synchronized, continuous, and repeatable.

STEP 01

Giving Bag

Premade pouches are loaded into the rotary grippers. The robotic pickup arm grabs each pouch from the magazine and places it precisely on the numbered station — ready for the next index.

STEP 02

Coding

Date codes, batch numbers and traceability marks are ink-jet printed on the pouch — before filling, so nothing ever obscures the label.

STEP 03

Opening

Vacuum suction opens each pouch cleanly and reliably. A controlled, full-width opening means the filling funnel always drops product dead-center.

STEP 04

Filling 1

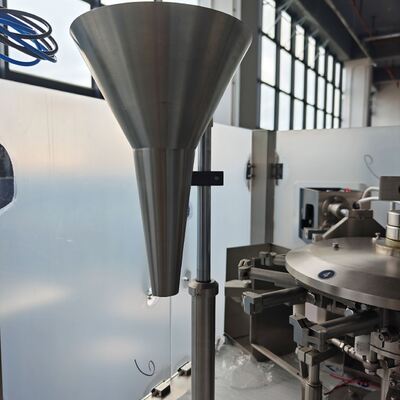

Primary product is gently dispensed through the stainless funnel — chips, popcorn, candy. Soft-drop handling keeps fragile snacks whole.

STEP 05

Filling 2

Optional secondary product — seasoning, flavor powder, insert — added through the second station while the main product settles.

STEP 06

Auxiliary

Vibration and tamping settle the product, level the fill, and free up headspace — consistent bag volume for a professional finish.

STEP 07

Exhaust

Air is removed for a tight pack; optional nitrogen flushing (MAP) replaces oxygen to extend shelf life of oily and fried snacks.

STEP 08

Heat Sealing

Heat sealing produces strong, leak-proof, retail-quality seals — flat pouches and zipper pouches alike, cycle after cycle.

STEP 09

Form & Output

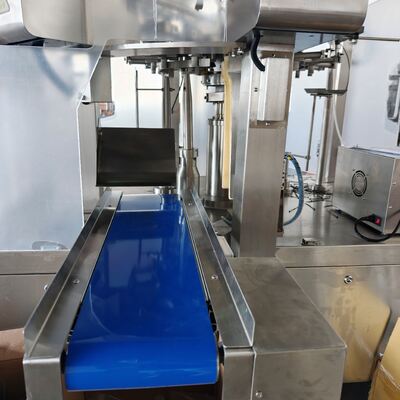

Finished bags are cooled, formed flat, and discharged onto the output conveyor — ready for case packing and shipping.

Technical Specifications

The Numbers Behind the Performance

Full machine parameters for your engineering team — verified, documented, and configurable.

Machine Position	Eight position
Pouch Material	Laminated film / PPI / PE, etc.
Pouch Pattern	Stand-up pouch with zipper (and other premade pouches)
Packing Speed	20–60 bags/min Depends on measuring equipment, material, product weight & film
Accuracy	≤ ±1% Depends on measuring equipment & materials
Bag Size	L 150–350 mm × W 100–250 mm
Filling Volume	20–2000 g
Bag Type	Zipper bag · Stand-up pouch · 3/4-side-seal pouch · Four edge-sealing bag · Special bag
Filling System	Dual-station (Filling 1 + Filling 2)
Air Consumption	0.6 m³/min Supplied by user
Power	2.5 KW · 3P · 380V · 50/60Hz
Dimension (L×W×H)	1900 × 1570 × 1700 mm
Control	PLC + touchscreen HMI
Construction	Food-grade stainless steel (product contact parts)

* Speed & accuracy are measured with standard multi-head weigher configuration; final values depend on product characteristics and measuring equipment.

Applications

One Machine, Six Product Categories

Engineered for snack foods first — flexible enough for granular, powder, liquid and more.

Potato Chips & Crisps

Fragile, oily, high-speed — handled gently with minimal breakage.

Popcorn

Microwave, caramel, butter — all sizes from snack to family bags.

Puffed & Extruded Snacks

Puffed corn, extruded snacks — consistent bag weight, no jamming.

Nuts, Dried Fruits & Candy

Piece or weight-based filling with multi-head weigher integration.

Powder, Liquid & Paste

Granular, powder, liquid/paste products — auger and pump fillers supported.

Pickles & Other Foods

Liquid-solid mixes handled by dual-station filling — ask us for a sample test.

FEATURED SNACK PRODUCT

Popcorn, packed retail-ready

Microwave, caramel, and butter popcorn — packed at 20–60 bags/min with ±1% accuracy. Gentle product handling keeps every kernel whole; optional nitrogen flushing keeps the bag crispy for the full shelf life.

POPCORN · CHIPS · PUFFED · NUTS · CANDY

FAQ

Questions Buyers Ask Most

Yes. The eight-position rotary system with soft-drop product handling minimizes impact, significantly reducing breakage compared to conventional fillers.

Filling 1 handles the main product (chips, popcorn, candy, etc.), and Filling 2 adds a secondary product like seasoning powder, flavor, or an insert. Both stations can be configured for your product mix.

The exhaust station can be configured for nitrogen flushing (MAP) to extend shelf life for oily and fried snacks — ideal for chips and popcorn that go stale quickly in air.

Typically 10–15 minutes with servo-assisted adjustments — no mechanical parts to replace, no specialists required.

Laminated film, PPI, PE and other common food-grade films. Zipper bags, stand-up pouches, 3/4-side-seal pouches, four edge-sealing bags, and custom special bags are all compatible.

Complete documentation, remote support, and worldwide spare parts supply are included with every machine.
