Automatic Granule Packing Machine Food Hardware Pouch Machine
Place of Origin | guangdong |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | Multi-Function Packaging Machine |
Minimum Order Quantity | 1sets |
Price | $18000 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Multi-Function Packaging Machine | Driven Type | Pneumatic |
---|---|---|---|
Place Of Origin | Guangdong, China | Warranty Of Core Components | 1 Year |
Main Function | Weighing Filling Sealing | Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Other |
Function | FILLING, Labeling, Sealing | Packaging Type | Stand-up Pouch, Bags, Pouch |
Voltage | 110V 220V 380V 50hz/60hz | Core Components | Motor, Pressure Vessel, PLC, Gear, Bearing, Engine, Gearbox |
Highlight | 110V Granule Packing Machine,220V Granule Packing Machine,380V Vertical Granule Packing Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |
Automatic Granule Packaging Machine Packaging Machine
Machine Specification:
Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. | ||
Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag | ||
Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
Measurement accuracy |
*≤±0.5~1%, depending on the measuring equipment & materials. | ||
Maximum bag width | 200mm | 250mm | 300mm |
Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | ||
Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
Air compressor | Not less than 1CBM | ||
Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
Machine Weight | 1300kg | 1400kg | 1500kg |
Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. | ||
Applicable scope | Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc |
(We can provide you with exclusive customized services according to your needs!)
The granule packing machine adopts advanced stainless steel weighing sensor, special weighing control terminal, programmable controller technology, and single barrel net weight measurement. It is a quantitative packaging equipment for granular materials
The granule packing machine has the characteristics of high precision, high speed, strong environmental adaptability, and good system reliability. The mechanical structure of our granule packaging machine is reasonably designed, the system has good maintenance-free performance, and has strong material adaptability. The part in contact with the material is designed with 304 stainless steel, which makes the granule packaging machine more durable and not easy to damage.

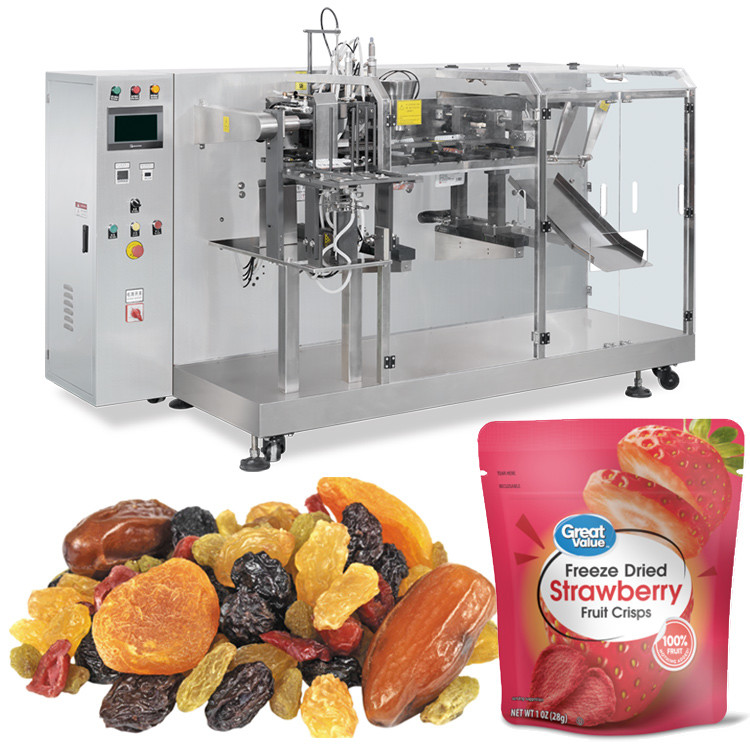

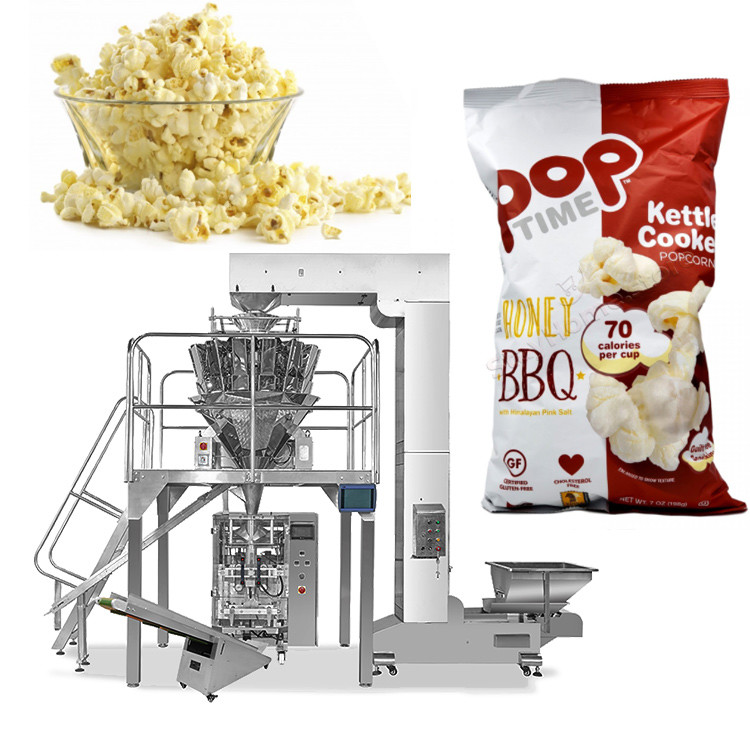

The granule packing machine can be used to package potato chips, snacks, dried fruits, chocolate, sugar/salt, seeds, popcorn, nuts/cashews and other materials, with a wide variety; packaging bags can be: stand-up bags, prefabricated bags, zipper bags, side sealing Bags, shaped bags, etc. If you have special needs, you can also contact us to provide you with exclusive customized services.
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q4:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
After-sale service:
1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.
2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.
3. SUNCHON engineers and technical engineers can provide machine service in your country.
4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.
5.We will provide technical support lifelong and provide accessories persistently.
