Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches

  • Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches
  • Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches
  • Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches
  • Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches
  • Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches
  • Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches
  • Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches
  • Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-XK8
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Dimension(L*W*H) L1900*W1400*H1450mm
Weight (KG) 880 Voltage 220V 380V 50/60HZ
Driven Type Pneumatic Warranty Of Core Components 1 Year
Application Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Pharmaceutical Applicable Industries Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops, Hardware
Function FILLING, Wrapping, Sealing Warranty 1 Year
Core Components Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox Production Capacity 60 Bags/min
High Light

Multifunctional Coffee Bean Packing Machine

,

Pneumatic Coffee Bean Packing Machine

,

Beverage Automatic Granule Packing Machine
Leave a Message
Product Description

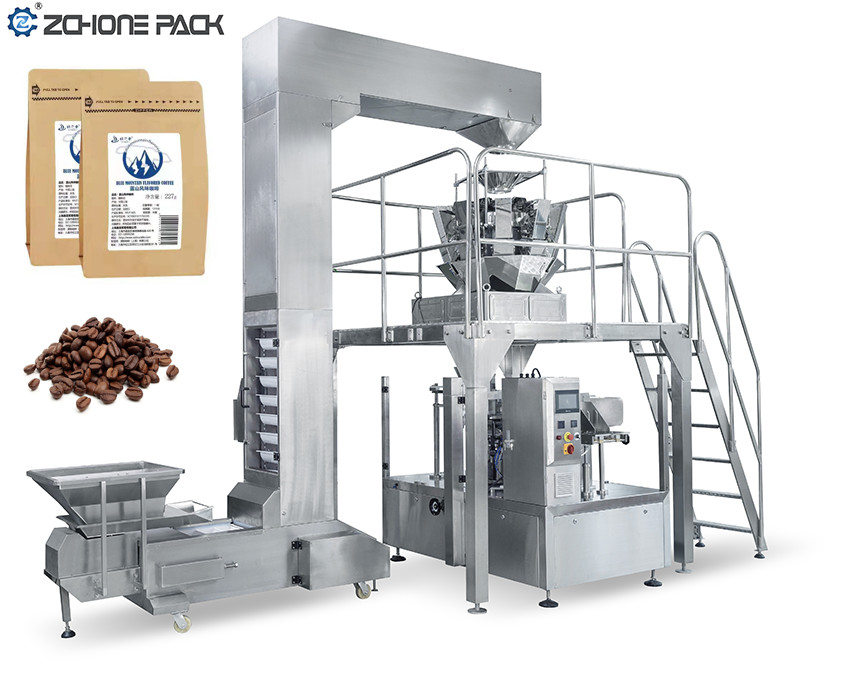

Automatic Multifunctional Packing Machine Granular Coffee Bean Stand up pouches Packaging Machinery

Machine Specification:

ITEM ZC-X8200 ZC-X8250 ZC-X8300
BAG SPEED

max 60 bags/min

(Depanding on the quality of the packing film,packaging materials,packaging weight ect.)
BAG SIZE

L100-300mm

W70-200mm

L100-350mm

W130-250mm

L150-450mm

W200-300mm
BAG TYPE Pre-made bags,Stand-up bag,Four-side bas,Three-side bag,Special-shaped bag
WEIGHING RANGE 10G-1KG 10G-2KG 10G-3KG
MEASUREMENT ACCURACY

≤±0.5~1%,

(Depanding on the measurement equipment and materials)
MAXIMUM BAG WIDTH 200mm 250mm 300mm
GAS CONSUMPTION 0.8pa 0.3m³/min
TOTAL POWDER/VOLTAGE 1.5KW 380V 50/60HZ 1.8KW 380V 50/60HZ 2KW 380V 50/60HZ
AIR COMPRESS Not less than 1 CBM
DIMENSION L1900*W1400*H1450 L2000*W1500*H1550
MACHINE WEIGHT 1300KG 1500KG

(We can provide you with exclusive customized services according to your needs!)

Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches 0

Features and Performance

1. The packaging machinery adopts an intelligent automatic diagnosis and alarm system, which can monitor in real time and ensure the safety of the production process.

2. The multi-function packaging machine adopts precise indexing device and PLC control system, which can control each packaging link in real time and ensure the accuracy of the machine.

3. Intelligent system: do not open the bag, do not enter the bag; do not enter the bag, do not seal;

Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches 1

application:

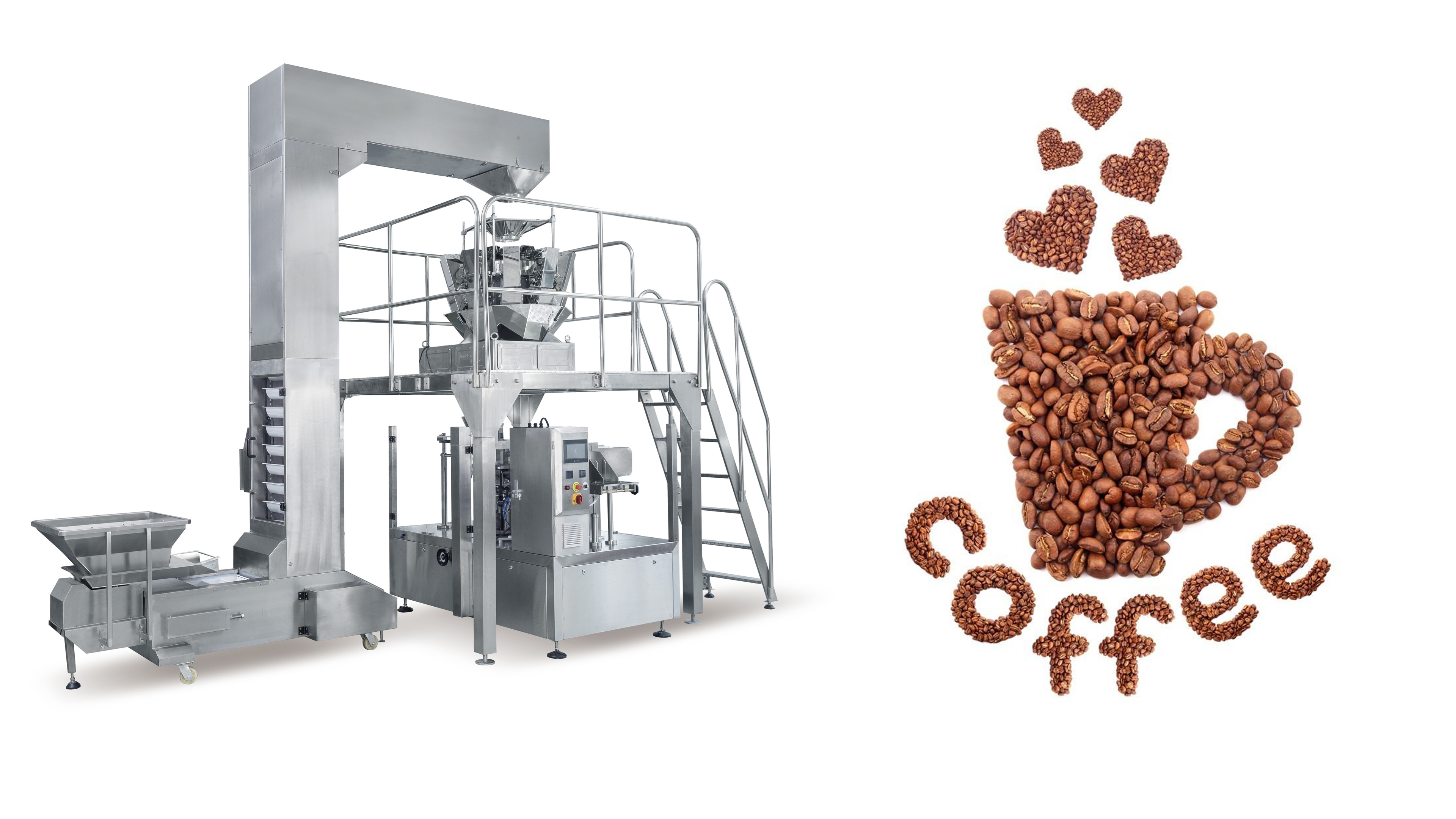

It is suitable for the packaging of granular or solid materials such as coffee beans, beans, nuts, candy, peanuts, seeds, chocolate, biscuits, etc.

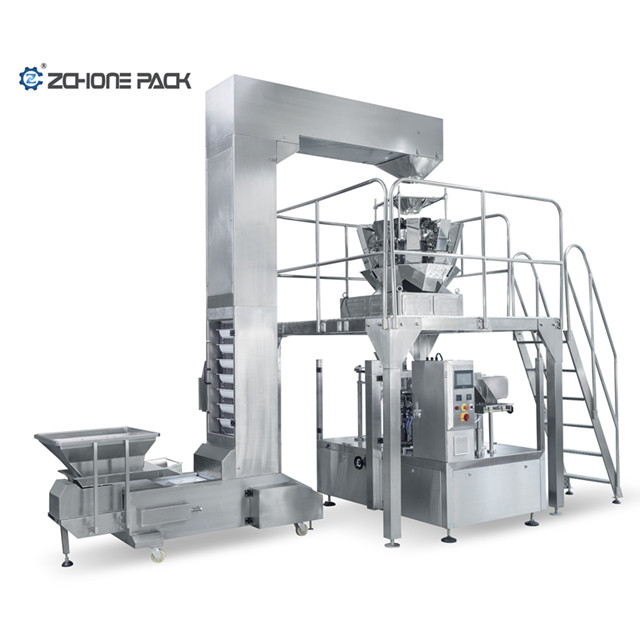

The whole machine composition

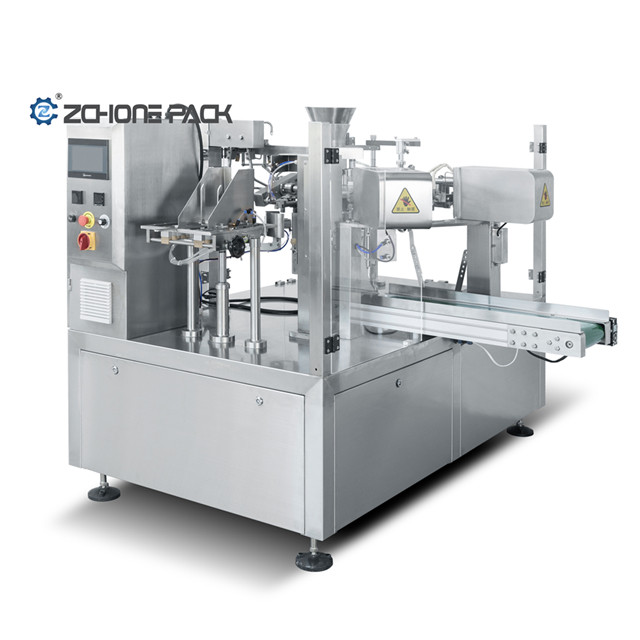

Eight-station bag-feeding automatic packing machine
Packing machine supporting measuring equipment

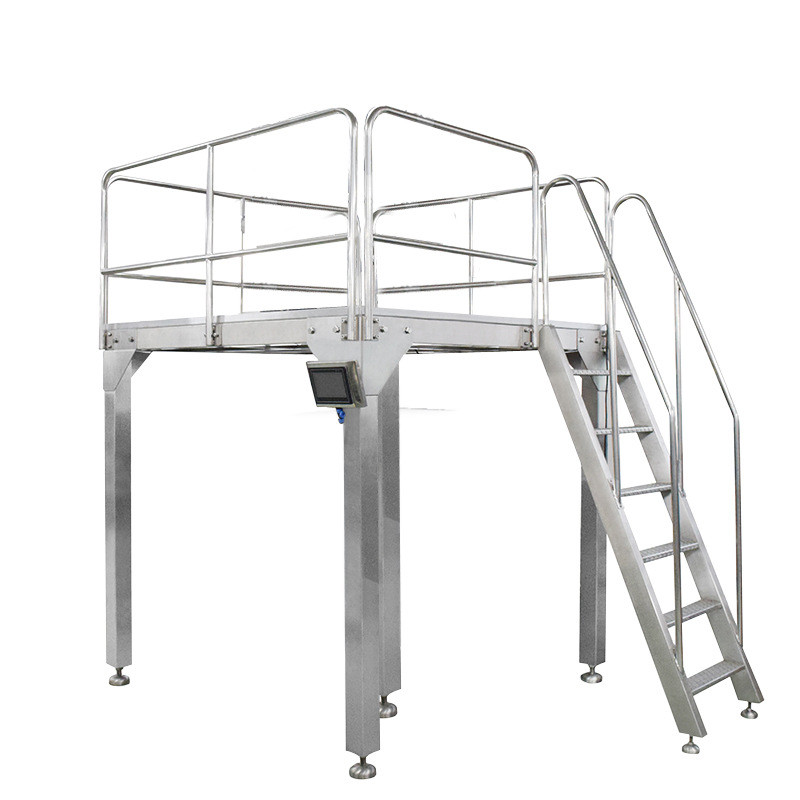

Supporting Platform

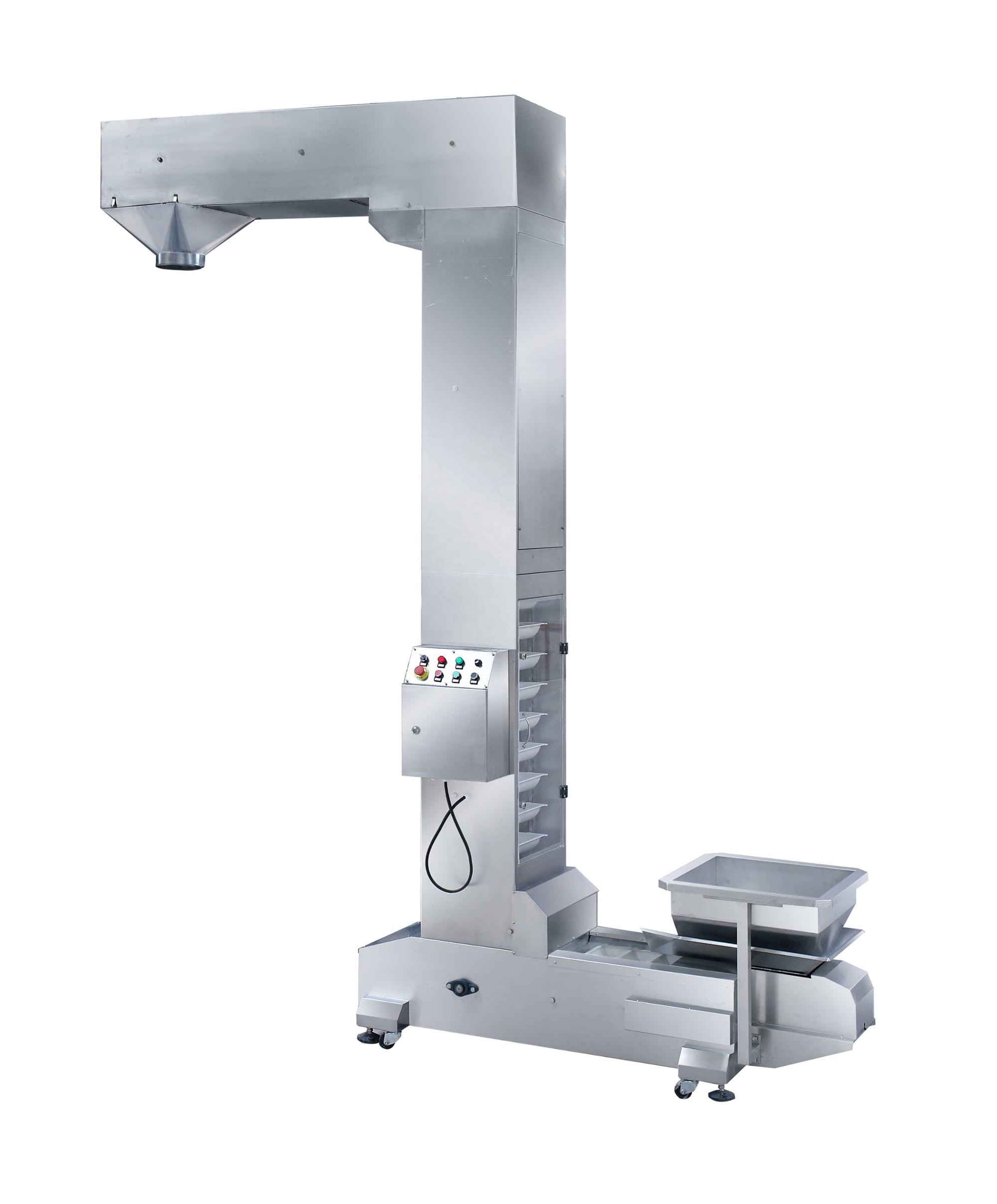

Z Type Bucket Conveyor



Automatic Coffee Bean Packing Machine Multifunctional Granular Stand Up Pouches 2

After-sale service:

1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.

2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.

3. SUNCHON engineers and technical engineers can provide machine service in your country.

4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.

5.We will provide technical support lifelong and provide accessories persistently.
