Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale

  • Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale
  • Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale
  • Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale
  • Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale
  • Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale
  • Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale
  • Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-X8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Automatic Granule Packaging Machine Packaging Type Stand-up Pouch, Bags, Pouch
Warranty 12 Months Application Peanuts, Sunflower Seeds, Pumpkin Seeds, Watermelon Seeds, Red Dates, Almonds, Cashews, Walnuts, Hazelnuts, Pine Nuts, Lotus Seeds, Chestnuts, Ginkgo, Pistachios, Raisins, Etc.
High Light

Multi Head Potato Chip Packaging Machine

,

50HZ Potato Chip Packaging Machine

,

60HZ Potato Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Eight-Station Potato Chip Packing Machine
Potato Chips Vertical Packing Machine
Potato Chip Single Station Packing Machine
Potato Chips Horizontal Packing Machine
Potato Chip Flow Packing Machine
Leave a Message
Packing Machine Type
Product Description

Eight-Station Granule Packaging Machine Potato Chips, Melon Seeds, Popcorn, Nuts, Chocolate Beans, Pistachios, Peanuts, Raisins



Machine Specification:

ITEM
ZC-X8200
ZC-X8250
ZC-X8300
BAG SPEED
max 60 bags/min
(Depanding on the quality of the packing film,packaging materials,packaging weight ect.)
BAG SIZE
L100-300mm
W70-200mm
L100-350mm
W130-250mm
L150-450mm
W200-300mm
BAG TYPE
Pre-made bags,Stand-up bag,Four-side bas,Three-side bag,Special-shaped bag
WEIGHING RANGE
10G-1KG
10G-2KG
10G-3KG
MEASUREMENT ACCURACY
≤±0.5~1%,
(Depanding on the measurement equipment and materials)
MAXIMUM BAG WIDTH
200mm
250mm
300mm
GAS CONSUMPTION
0.8pa 0.3m³/min
TOTAL POWDER/VOLTAGE
1.5KW 380V 50/60HZ
1.8KW 380V 50/60HZ
2KW 380V 50/60HZ
AIR COMPRESS
Not less than 1 CBM
DIMENSION
L1900*W1400*H1450
L2000*W1500*H1550
MACHINE WEIGHT
1300KG
1500KG

(We can provide you with exclusive customized services according to your needs!)



Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale 0



Application

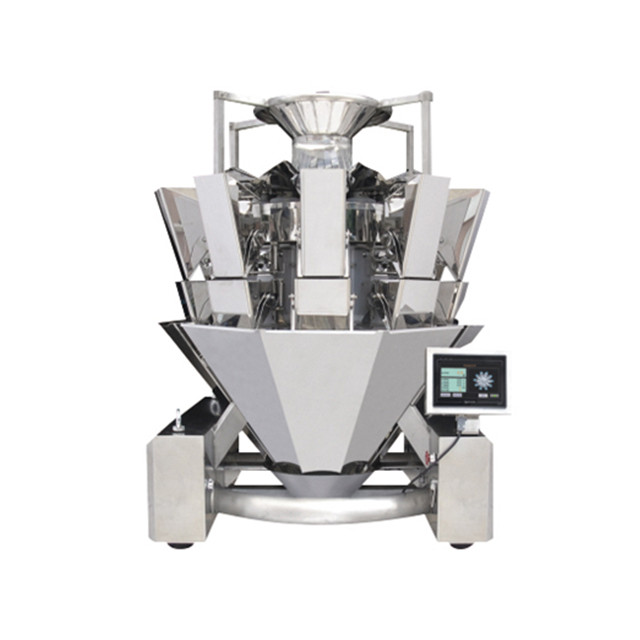

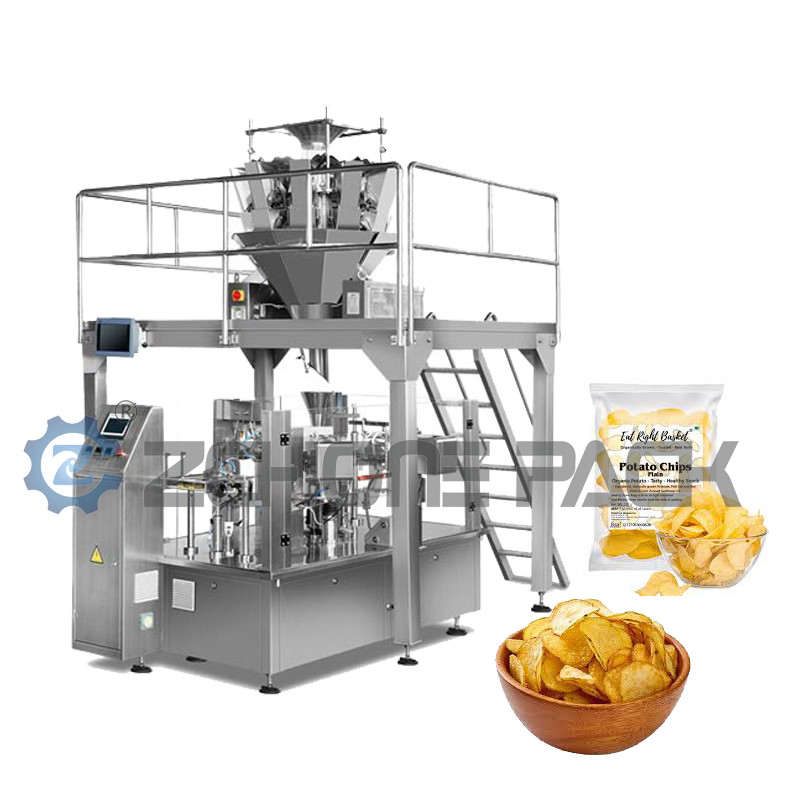

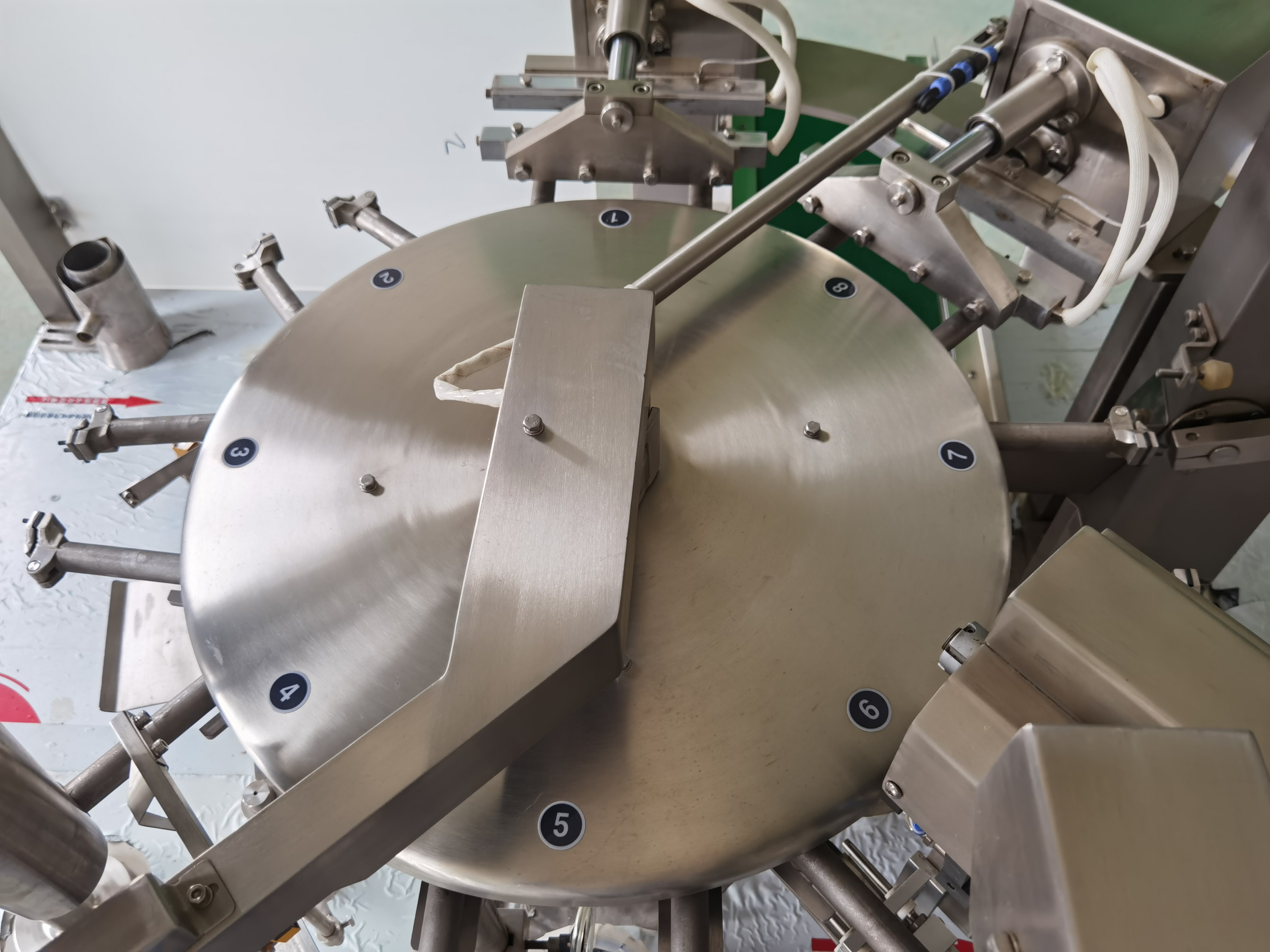

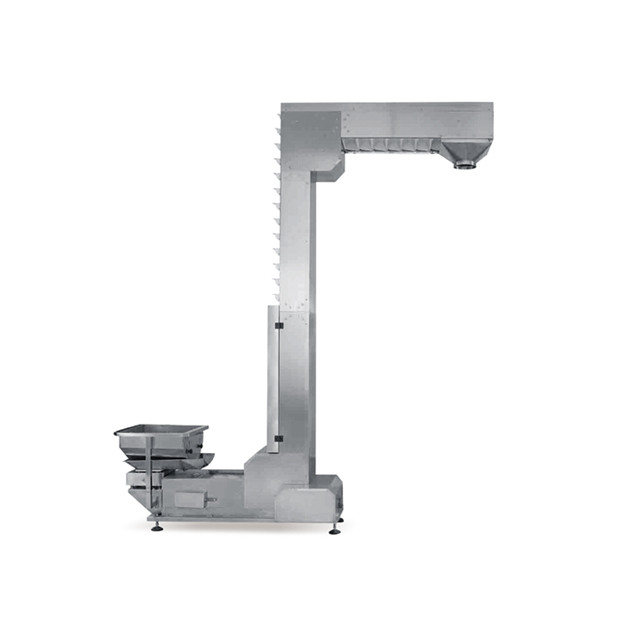

The eight-station granule potato chip packing machine is composed of an eight-station host + hoist + multi-head scale + conveyor. A series of actions such as opening, printing, filling and sealing of the packaging pouch are completed through multi-station.



Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale 1



Suitable for packing: potato chips, popcorn, chocolate beans, candy, peanuts, cashews, dried almonds, chestnuts, melon seeds, biscuits, corn kernels, hardware accessories and other granular products.



Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale 2



Features and Performance

1. It has a variety of automatic diagnosis and automatic alarm safety protection functions to ensure personal safety and reduce material loss.

2.Can be equipped with a remote diagnosis system to troubleshoot the machine in the shortest time

3.Can be equipped with automatic lubrication system to prolong machine life and reduce labor

4.It can be equipped with a one-key clip adjustment system to quickly adjust the machine according to the width of the packaging bag

Potato Chips Granule Packing Machine Eight Stations With Multi Head Scale 3



Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.



Q2:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.



Q4:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.



After-sale service:

1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.

2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.

3. SUNCHON engineers and technical engineers can provide machine service in your country.

4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.

5.We will provide technical support lifelong and provide accessories persistently.
