Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter

  • Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter
  • Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter
  • Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter
  • Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter
  • Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter
Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-X8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Pet Cat Litter Packing Machine Automatic Grade Automatic
Application Cat Litter, Cat Food, Dog Food, Fish Feed And Other Particulate Matter Packaging Type Bags,Pouch
Dimension(L*W*H) L1900*W1400*H1450 Voltage 220V 380V 50/60HZ
Highlight

60HZ Cat Litter Packing Machine

,

50HZ Cat Litter Packing Machine

,

Automatic Granular Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Cat litter packing machine granular tofu cat litter bentonite crystal cat litter





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)

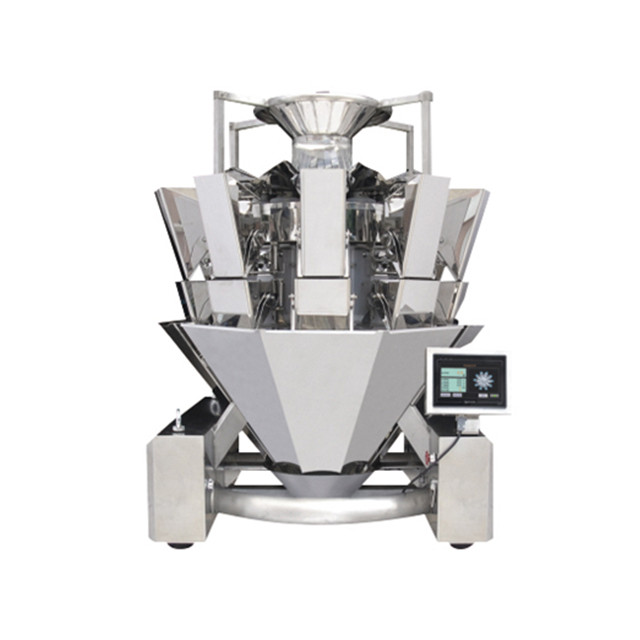

Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter 0

The cat litter packaging machine adopts advanced stainless steel weighing sensor, which can accurately control the weight of the cat litter packaged, and easily realize the whole process of automatic quantitative packaging. Our cat litter packaging machine has high precision, high speed, strong practicability and good control system stability. There will be no leakage, uneven packaging and other problems.

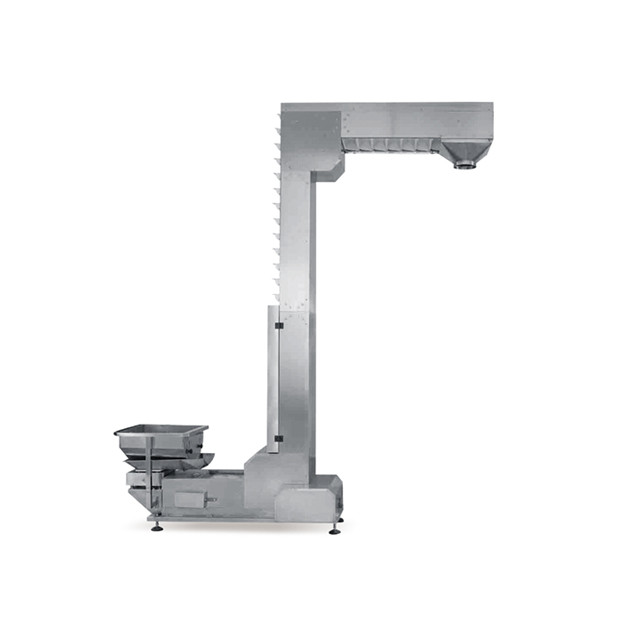

Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter 1



The pellet packing machine can be used to pack cat litter, cat food, dog food, fish feed and other materials. Applicable bag types: flat bags, stand-up bags, prong bags, box bags, zipper bags, nozzle bags, special-shaped bags, etc.

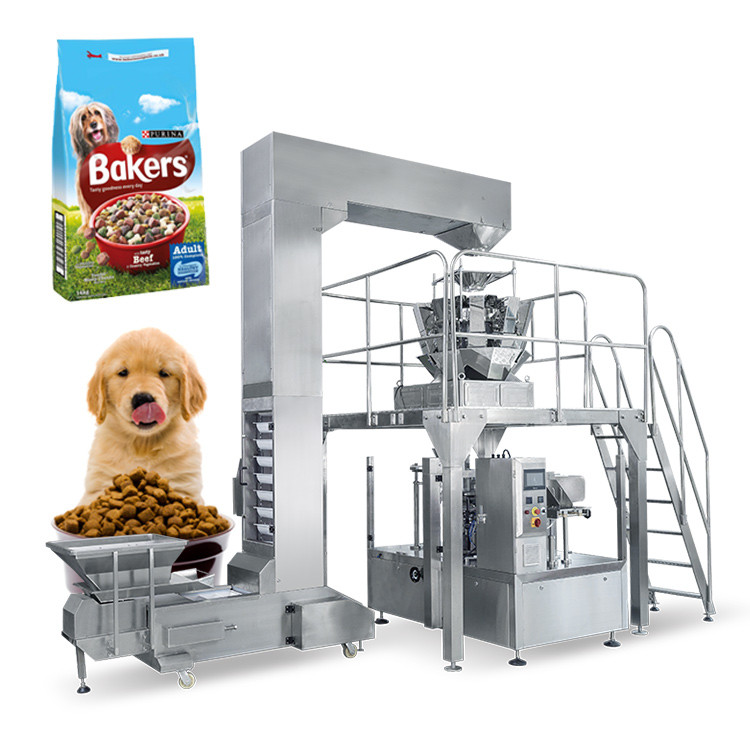

Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter 2



The packaging process includes bag loading - coding - bag opening - blanking 1 (vibration) - blanking 2 (secondary blanking/dust removal) - cleaning - sealing 1 (exhaust) - sealing 2 - output.

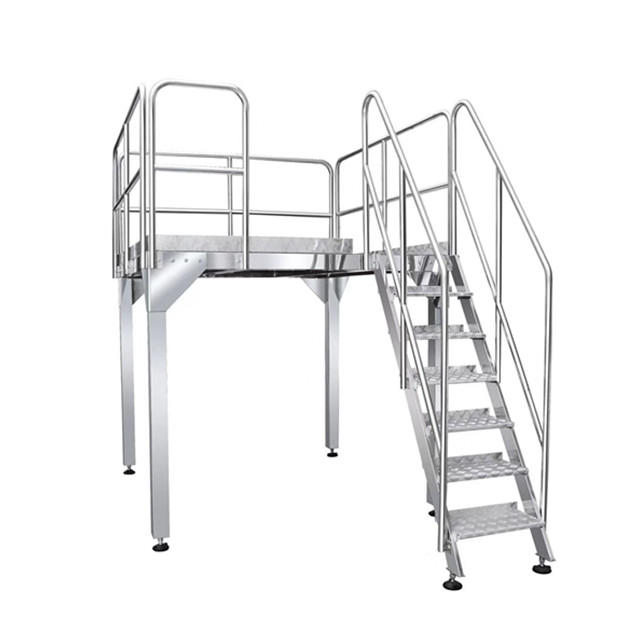

Cat Litter Packing Machine Granular Tofu Cat Litter Bentonite Crystal Cat Litter 3



After-sale service:



1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.

2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.

3. SUNCHON engineers and technical engineers can provide machine service in your country.

4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.

5.We will provide technical support lifelong and provide accessories persistently.
