Single Station Mini Doypack Packaging Machine Bag Type Sauce Packaging Machine
Place of Origin | Guangdong,China |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | ZC-430 |
Minimum Order Quantity | 1set |
Price | $23,500.00 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Mini Doypack Packaging Machine | Packaging Type | Stand-up Pouch, Bags, Pouch |
---|---|---|---|
Production Capacity | 30bag/min | Place Of Origin | Foshan China |
Application | Food, Commodity, Medical, Chemical, Machinery & Hardware | Core Components | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox |
Highlight | Single Station Mini Doypack Packaging Machine,Bag Type Mini Doypack Packaging Machine,30bag/min Sauce Packaging Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |

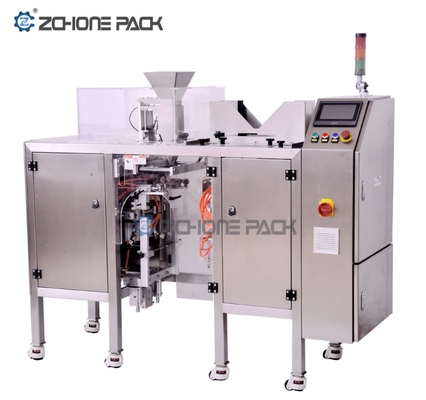

Mini Doypack Packing Machine Single Station Bag Type Sauce Packaging Machine
Machine Specification:
Item | 200 | 300 | 430 |
Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) | ||
Bag size | 100mm≤L≤200mm | 100mm≤L≤300mm | 100mm≤L≤430mm |
70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm | |
Bag Type | 3 Side Seal Bag, Stand-up Bag | ||
Upgradable Bag Type | N/A | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
|
Speed | 0~26bags/min | 0~15bags/min | |
Sealing Type | Plain weave | Straight grain, pitch is 1mm (Optional reticulate) | |
Sealing Width | 8mm | 10mm(5--20mm can be customized) | |
Voltage | 220V, Single-phase, 50/60HZ, 1KW | 220V, Single-phase, 50/60HZ, 1.2KW | |
Air Pressure | 0.65Mpa | ||
Air Consumption | 0.2m³/min | 0.3m³/min | |
Standard machine, no additional function | |||
Body Dimension | 1080*535*1010mm | 1770*600*1230mm | 1770*600*1360mm |
Packing Dimension | 1240*670*1320mm | 1860*710*1550mm | 1860*710*1650mm |
Export non-fumigation wooden case |
(We can provide you with exclusive customized services according to your needs!)

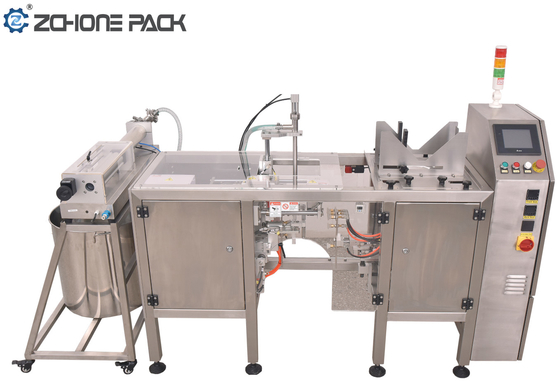

The fully automatic single-station bag-feeding sauce packing machine is our company's new generation of standard single-station pre-made pouches packing machines. It can be equipped with various material hoppers to meet different packaging needs. The machine has strong compatibility, and can pack chili sauce, garlic sauce, hoisin sauce, bean paste, beef sauce, tempeh sauce, peanut butter, jam, hot pot base and other sauce particles.
The Mini Doypack packing machine can fully automatically complete the functions of taking out the bag - opening the bag - filling - sealing - printing the date and conveying the finished product. It can be used in conjunction with semi-automatic sauce, paste, liquid filling machines; powder packaging machines, semi-automatic granule packaging machines and other equipment. The pouches packaging machine has replaced manual packaging, saving a lot of manpower and material resources for large and medium-sized enterprises, and has become the choice of most enterprises.
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q4:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
