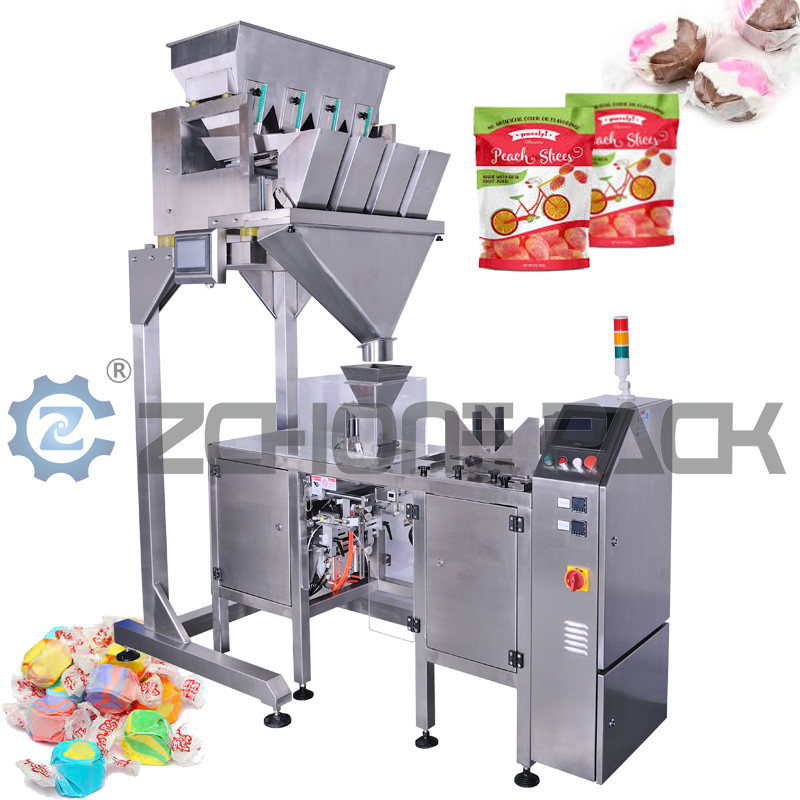

2 Head 4 Head Mini Doypack Packaging Machine Linear Weighing Automatic

Place of Origin Guangdong,China
Brand Name ZCHONE PACK
Certification ISO,CE
Model Number ZC-200
Minimum Order Quantity 1set
Price $17,800~$23,800
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Product Name Mini Doypack Packing Machine
Application Food, Snacks, Nuts, Powders, Granules, Tea, Coffee, Etc. Core Components Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Production Capacity 0~ 15bags/min Warranty 1 Year
Highlight

2 Head Mini Doypack Packaging Machine

,

Automatic Mini Doypack Packaging Machine

,

Food Automatic Weighing Packaging Machine

You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Doypack Packing Machine 2-Head 4-Head Linear Weighing Fully Automatic Packaging Line


Machine Specification:


Item 200 300 430
Bag Material Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag size 100mm≤L≤200mm 100mm≤L≤300mm 100mm≤L≤430mm
70mm≤W≤150mm 80mm≤W≤300mm 80mm≤W≤300mm
Bag Type 3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type N/A

Gusset Bag, Zipper Bag, Flat Bottom Pouch
(Need additional purchase of functional device)

Speed 0~26bags/min 0~15bags/min
Sealing Type Plain weave Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width 8mm 10mm(5--20mm can be customized)
Voltage 220V, Single-phase, 50/60HZ, 1KW 220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure 0.65Mpa
Air Consumption 0.2m³/min 0.3m³/min
Standard machine, no additional function
Body Dimension 1080*535*1010mm 1770*600*1230mm 1770*600*1360mm
Packing Dimension 1240*670*1320mm 1860*710*1550mm 1860*710*1650mm
Export non-fumigation wooden case

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)

Doypack Packing Machine with 2-head or 4-head Linear Scale Fully Automatic Packaging Line


(1) The total height of the combination should not exceed 3.5 meters, automatic feeding, automatic weighing, automatic packaging, automatic discharge, and cooperate with 1~2 workers;
(2) It is suitable for granular materials; it is suitable for use when the workshop space is small and the product volume is medium;

2 Head 4 Head Mini Doypack Packaging Machine Linear Weighing Automatic 0

The main working area of the single-station packing machine has a very compact structure, strong operational logic and linearity, and moves one by one; food-grade silicone suction cups are used to complete bag picking, bag opening and other actions; bag opening, filling, inflation, air extraction, All effective actions such as material sorting, sealing, coding, and finished product output;

2 Head 4 Head Mini Doypack Packaging Machine Linear Weighing Automatic 1

Main functional devices of packaging machine:

1. Bag holder

(1) Place storage prefab bags;
(2) It is suitable for various bag types and sizes, and the adjustment is simple and easy to understand, up to 30~50 bags per cycle;

2 Head 4 Head Mini Doypack Packaging Machine Linear Weighing Automatic 2

2. Bag holder

(1) After the bag is taken, the bag clamper clamps the edge of the bag, and the position of the fixed bag is convenient to open the bag, fill, seal and other actions until the finished product is released;
(2) The relative position of the two clips can be adjusted to meet the operation switching requirements of different bag sizes;

2 Head 4 Head Mini Doypack Packaging Machine Linear Weighing Automatic 3


3. Lower hopper

Guide material and pre-loaded material; when working, it will be directly inserted into the bag mouth 3~5cm to guide the material to fall into the bag smoothly;
Square buckets are used for granular materials, with opening and closing doors, and can be preloaded with materials; round buckets are used for powders and are equipped with a vacuum kit; liquid packaging is generally not required.
Need to lower the hopper, but will be equipped with anti-pollution casing;

2 Head 4 Head Mini Doypack Packaging Machine Linear Weighing Automatic 4
