Pet Food Wet Food Mini Doypack Packaging Machine Chicken Beef Soup Bagging Machine
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | ZCHONE PACK |
| Certification | ISO，CE |
| Model Number | ZC-200 |
| Minimum Order Quantity | 1set |
| Price | $13,900~$19,900 |
| Packaging Details | Standard export wooden case packaging |
| Delivery Time | 15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Multifunctional Packaging Machine | Product Name | Mini Doypack Packing Machine |
|---|---|---|---|
| Weight (KG) | 1300 | Application | Food, Beverage, Commodity |
| Packaging Material | Plastic | Automatic Grade | Automatic |
| Highlight | Pet Food Mini Doypack Packaging Machine,Wet Food Mini Doypack Packaging Machine,Chicken Bagging Machine |
||
You can tick the products you need and communicate with us in the message board.
| Packing Machine Type | |
|---|---|
| Granule Packing Machine | |
| Liquid Packing Machine | |
| Powder Packing Machine | |
| Stand-Up Pouch Packing Machine | |
| Vertical Packing Machine | |
| Horizontal Packing Machine | |
| Tea Bag Machine | |
| Coffee Bean Packing Machine | |
| Horizontal Packing Machine |
Product Description

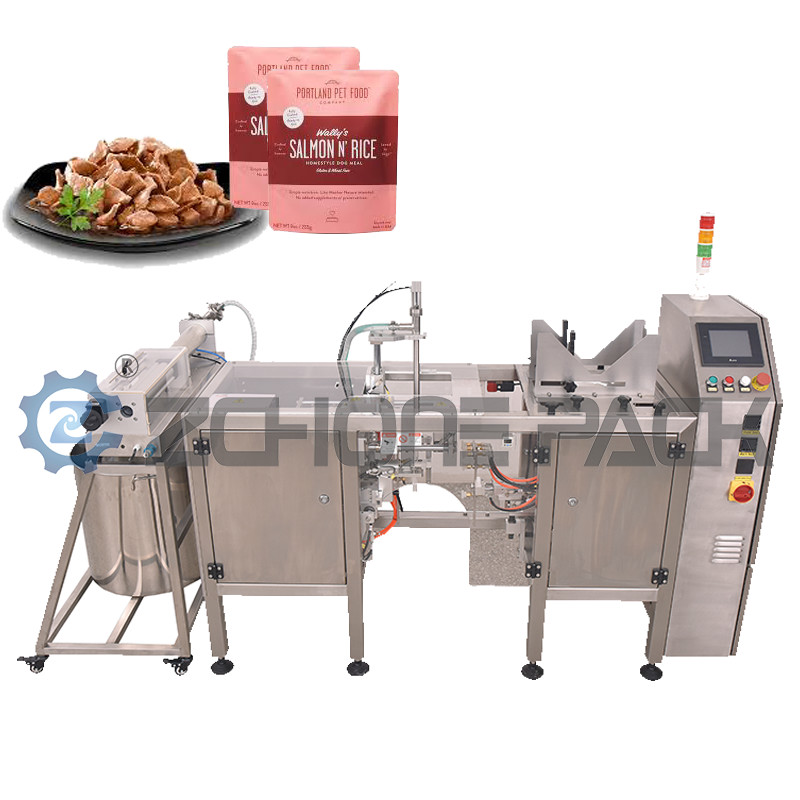

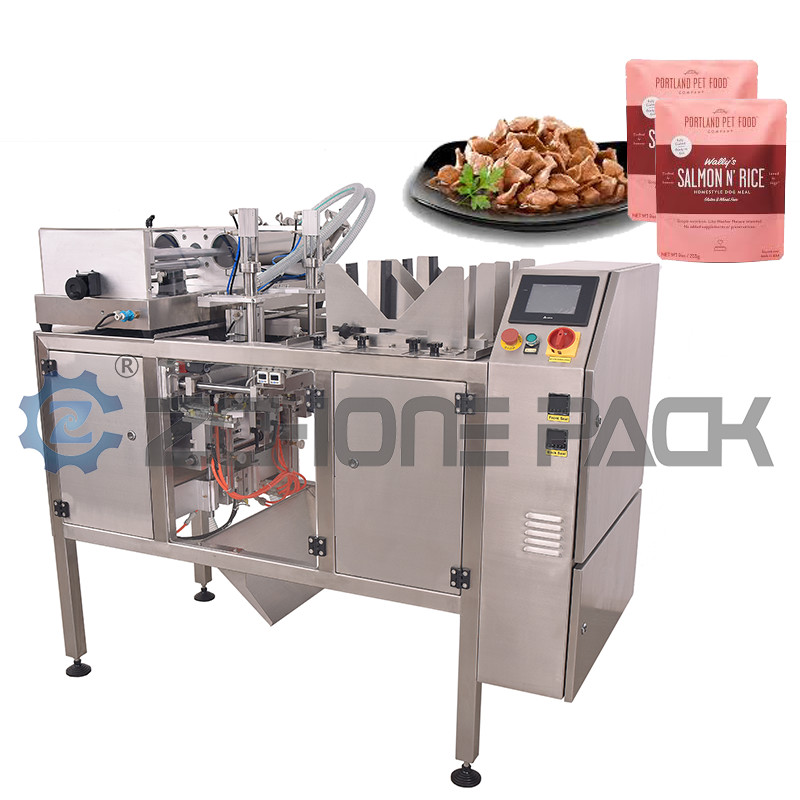

Pet Food Wet Food Packaging Machine Chicken and Beef Soup Bagging Machine
The pet food industry includes: pet treats, dog food mixed freeze-dried food, cat food, cat bars, pet wet food, cat litter, probiotics and other pet food. For products with soup such as pet wet food and cat strips, we can use a combination of bag packaging machine + liquid pump/paste pump for fully automated packaging. There are various styles of bag-feeding packaging machines to choose from: multi-station packaging machines, single-station packaging machines, horizontal packing machines, etc.
Machine Specification:
| Item | 200 | 300 | 430 |
| Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) | ||
| Bag size | 100mm≤L≤200mm | 100mm≤L≤300mm | 100mm≤L≤430mm |
| 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm | |
| Bag Type | 3 Side Seal Bag, Stand-up Bag | ||
| Upgradable Bag Type | N/A |
Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
|
| Speed | 0~26bags/min | 0~15bags/min | |
| Sealing Type | Plain weave | Straight grain, pitch is 1mm (Optional reticulate) | |
| Sealing Width | 8mm | 10mm(5--20mm can be customized) | |
| Voltage | 220V, Single-phase, 50/60HZ, 1KW | 220V, Single-phase, 50/60HZ, 1.2KW | |
| Air Pressure | 0.65Mpa | ||
| Air Consumption | 0.2m³/min | 0.3m³/min | |
| Standard machine, no additional function | |||
| Body Dimension | 1080*535*1010mm | 1770*600*1230mm | 1770*600*1360mm |
| Packing Dimension | 1240*670*1320mm | 1860*710*1550mm | 1860*710*1650mm |
| Export non-fumigation wooden case | |||
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
Among them, the single-station packaging machine is specially developed for the packaging application of various composite film prefabricated bags. The single-station packaging machine has the advantages of compact structure and reasonable action. It adopts the touch-type color touch screen interface operation, the upper bag is placed, and the orientation is adjustable. It can operate a variety of bag types and sizes on a single machine, and the switching is simple and the workload is small.
The main working area of the single-station packaging machine has a very compact structure, strong operational logic and linearity, and moves one by one; food-grade silicone suction cups are used to complete bag picking, bag opening and other actions; bag opening, filling, inflation, air extraction, All effective actions such as material sorting, sealing, coding, and finished product output; our packaging equipment will directly insert 3~5cm into the bag mouth to guide the material to fall into the bag smoothly when guiding and pre-packing materials; when packaging liquids /Paste materials will be equipped with anti-pollution sleeves to ensure that the packaging materials will not be polluted.
