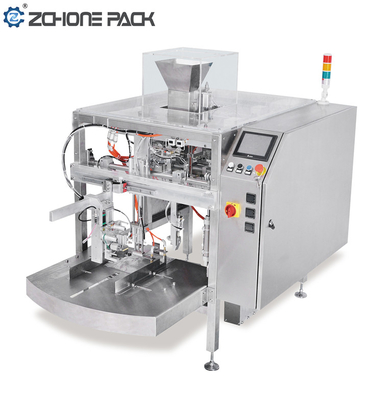

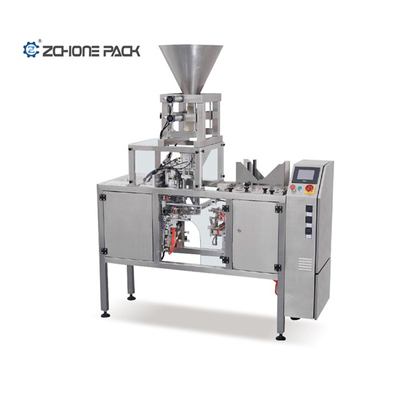

Single Station Automatic Granule Packing Machine Bag Feeding Machine
Place of Origin | Guangdong,China |
---|---|
Brand Name | ZCHONE PACK |
Certification | ISO,CE |
Model Number | ZC-200 |
Minimum Order Quantity | 1set |
Price | $9,800~$13,800 |
Packaging Details | Standard export wooden case packaging |
Delivery Time | 15 work days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1/sets/15day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Multifunctional Packaging Machine | Product Name | Mini Doypack Packaging Machine |
---|---|---|---|
Application | Food, Snacks, Nuts, Powders, Granules, Tea, Coffee, Etc. | Packaging Type | Stand-up Pouch, Bags, Pouch |
Packaging Material | Plastic | Warranty | 1 Year |
High Light | Multifunctional Granule Packing Machine,Multipurpose Granule Packing Machine,Single Station Automatic Granule Packing Machine |
Packing Machine Type | |
---|---|
Granule Packing Machine | |
Liquid Packing Machine | |
Powder Packing Machine | |
Stand-Up Pouch Packing Machine | |
Vertical Packing Machine | |
Horizontal Packing Machine | |
Tea Bag Machine | |
Coffee Bean Packing Machine | |
Horizontal Packing Machine |
Single-station Granule Packing Machine Automatic Bag Feeding Machine Suitable Packaging Various Styles of Premade Bags
Machine Specification:
Item | 200 | 300 | 430 |
Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) | ||
Bag size | 100mm≤L≤200mm | 100mm≤L≤300mm | 100mm≤L≤430mm |
70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm | |
Bag Type | 3 Side Seal Bag, Stand-up Bag | ||
Upgradable Bag Type | N/A |
Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
|
Speed | 0~26bags/min | 0~15bags/min | |
Sealing Type | Plain weave | Straight grain, pitch is 1mm (Optional reticulate) | |
Sealing Width | 8mm | 10mm(5--20mm can be customized) | |
Voltage | 220V, Single-phase, 50/60HZ, 1KW | 220V, Single-phase, 50/60HZ, 1.2KW | |
Air Pressure | 0.65Mpa | ||
Air Consumption | 0.2m³/min | 0.3m³/min | |
Standard machine, no additional function | |||
Body Dimension | 1080*535*1010mm | 1770*600*1230mm | 1770*600*1360mm |
Packing Dimension | 1240*670*1320mm | 1860*710*1550mm | 1860*710*1650mm |
Export non-fumigation wooden case |
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
The single-station packing machine is a fully automatic bag-feeding packaging machine, which is mainly used for the packaging of personal care products such as food, beverage, medical, hardware, and cosmetics.
The fully automatic Doypack packing machine has a compact structure and can provide packing speeds ranging from 6 to 15 packs/min, roughly 30 packs/min. The cost-effectiveness is reasonable. Generally, 1~2 workers can ensure its smooth operation. It is especially suitable for large, medium and small users who have a small workshop space, a small amount of packaging, and who want to upgrade the automation of the packaging process but do not want to invest a lot of supporting funds.
What are the advantages of single station packaging machine?
1) This type of packaging machine can be widely used in food industry (such as meat, juice), dairy industry (such as milk powder), cosmetics industry (such as shampoo, conditioner, etc.), pharmaceutical and medical equipment industries, etc.
2) The operation is simple, just feed the material into the hopper, and then put it on the automatic feeding device to realize fully automatic packaging.
3) No manual operation is required, saving a lot of labor costs;
4) Simple structure and high operating efficiency;
5) There are a variety of models, which can provide different functions according to customer requirements;
6) Safe and reliable, you don't have to worry about your products being damaged during transportation, because our packaging machines use special materials where they come into contact with materials to protect them from damage
7) Using a fully automatic packaging machine can save you a lot of energy costs
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q4:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
