Rotary Automatic Granule Packaging Machine Pouches Packing Machine

  • Rotary Automatic Granule Packaging Machine Pouches Packing Machine
  • Rotary Automatic Granule Packaging Machine Pouches Packing Machine
  • Rotary Automatic Granule Packaging Machine Pouches Packing Machine
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Application Food, Commodity, Chemical, Machinery & Hardware
Packaging Type Stand-up Pouch, Bags, Pouch Packaging Material Plastic
Automatic Grade Automatic Place Of Origin Guangdong, China
Highlight

Rotary Automatic Granule Packaging Machine

,

Food Automatic Granule Packaging Machine

,

Commodity Granule Pouch Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Automatic rotary granule packaging machine pouches packing machine





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)



Rotary Automatic Granule Packaging Machine Pouches Packing Machine 0

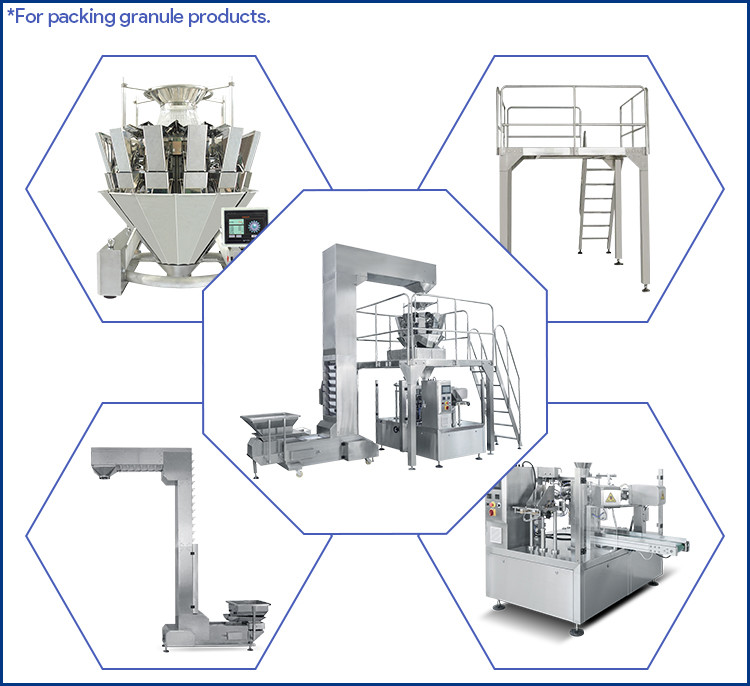

The pouch-type granule packing machine replaces the traditional manual packaging, and realizes packaging automation for large enterprises and small and medium-sized enterprises. The mechanical grip of the granule packaging machine can automatically take out the bag, print the date, open the pouches, signal the metering device, measure and blank, seal, and output. The main optional configuration of the pouches packing machine: material measuring and filling machine, working platform, weight sorting scale, material hoist, vibrating feeder, finished product conveying hoist, metal detector, etc.



Rotary Automatic Granule Packaging Machine Pouches Packing Machine 1



Our pouch-type granule packing machine introduces the latest technology from Japan. Under the general control system of PLC+POD, we adopt a fully mechanical operation structure, which gradually replaces the pneumatic operation structure. Easy to understand, stable operation, less maintenance, easy to clean and beautiful appearance.



Rotary Automatic Granule Packaging Machine Pouches Packing Machine 2





application:



Bulk materials: dried tofu, fish, eggs, candy, red dates, cereals, chocolate, biscuits, peanuts, etc.

Granules: crystalline monosodium glutamate, granular drugs, capsules, seeds, chemical raw materials, sugar, chicken essence, melon seeds, nuts, pesticides, fertilizers, feed, etc.





Packing material



side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc



Rotary Automatic Granule Packaging Machine Pouches Packing Machine 3



After-sale service:



1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.

2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.

3. SUNCHON engineers and technical engineers can provide machine service in your country.

4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.

5.We will provide technical support lifelong and provide accessories persistently.
