Eight Station Bag Feeding Machine With Bowl Elevator Semi Automatic Manual Feeding

  • Eight Station Bag Feeding Machine With Bowl Elevator Semi Automatic Manual Feeding
  • Eight Station Bag Feeding Machine With Bowl Elevator Semi Automatic Manual Feeding
  • Eight Station Bag Feeding Machine With Bowl Elevator Semi Automatic Manual Feeding
  • Eight Station Bag Feeding Machine With Bowl Elevator Semi Automatic Manual Feeding
  • Eight Station Bag Feeding Machine With Bowl Elevator Semi Automatic Manual Feeding
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-X8250
Minimum Order Quantity 1set
Price $18,000~$25,900
Packaging Details Standard export wooden case packaging
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1set/15 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multifunctional Packaging Machine Voltage 220V/380V
Condition New Packaging Material Plastic
Application Food,Chemical,Medical,Commodity,Machinery & Hardware Packaging Type Bags,Pouch,Film
Highlight

Automatic Granule Vertical Packing Machine

,

Zipper Bag Granule Vertical Packing Machine

,

Stand Up Zipper Bag Packing Machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Eight-Station Bag Feeding Machine with Bowl Elevator Semi-automatic Manual Feeding Rice Noodles Masks





Machine Specification:



Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive customized services according to your needs!)

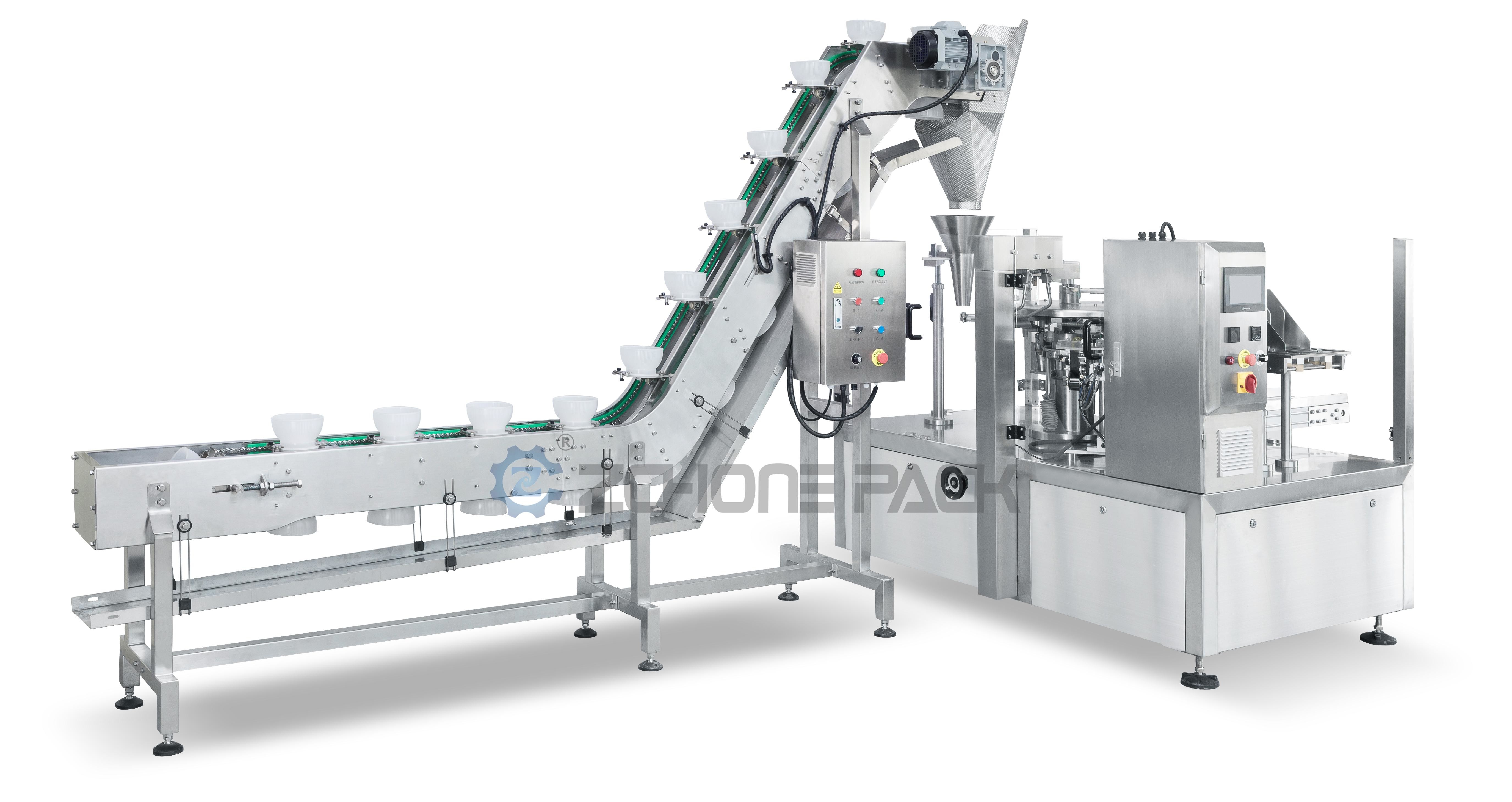

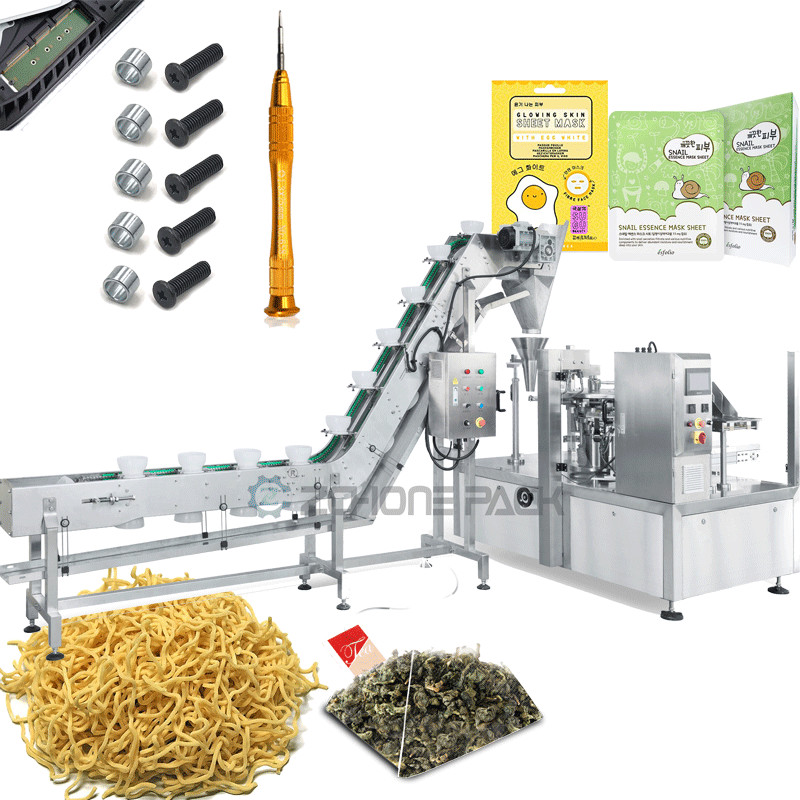

Eight-station bag feeding machine with bowl elevator This series of packaging equipment is mainly suitable for the secondary lifting of the customer's workshop height limit, and the semi-automatic conveying of manual feeding. The main packaging products are: rice noodles, noodles, spring rolls, vegetables, hot pot ingredients, spice pouches, tea bags, masks, facial masks, hardware, spare parts, etc.



Eight Station Bag Feeding Machine With Bowl Elevator Semi Automatic Manual Feeding 0





Overall supporting equipment:

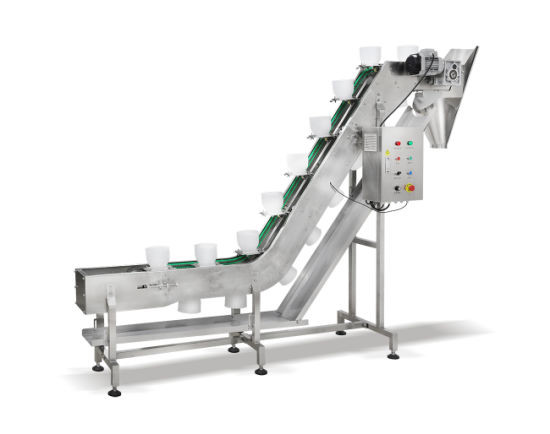

1. Bowl elevator

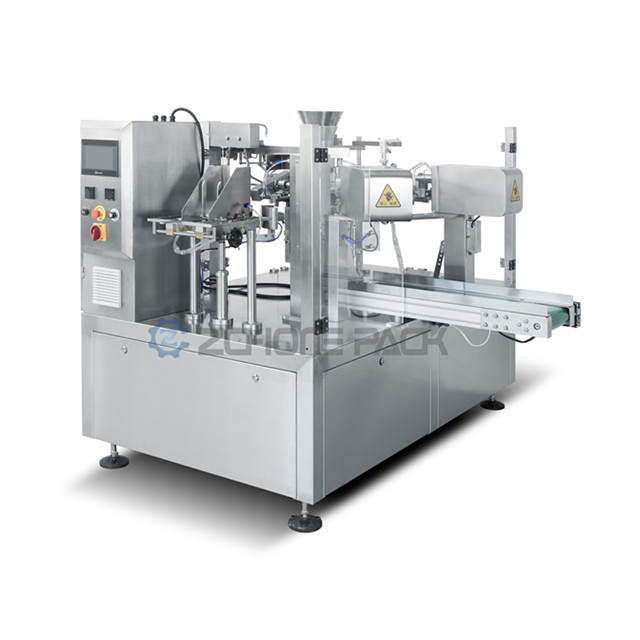

2. Feeding bag packing machine

3. Finished product conveyor



Eight Station Bag Feeding Machine With Bowl Elevator Semi Automatic Manual Feeding 1





Optional supporting equipment:



1. Weight selection

2. Metal detector

3. Finished turntable

4. Nitrogen generator

5. Air compressor

6. Gas tank





After-sale service:



1. Provide manuals/videos for machine installation, adjustment, setup, and maintenance for your use.

2. If the problem cannot be solved, 24-hour telecommunication or online face-to-face communication is available.

3. SUNCHON engineers and technical engineers can provide machine service in your country.

4. The whole machine is guaranteed for 1 year. During the warranty period, the parts that are not artificially damaged. We will replace it with a new one for you free of charge. The warranty will start after the machine is sent out and we receive the bill of lading.

5.We will provide technical support lifelong and provide accessories persistently.

Eight Station Bag Feeding Machine With Bowl Elevator Semi Automatic Manual Feeding 2
