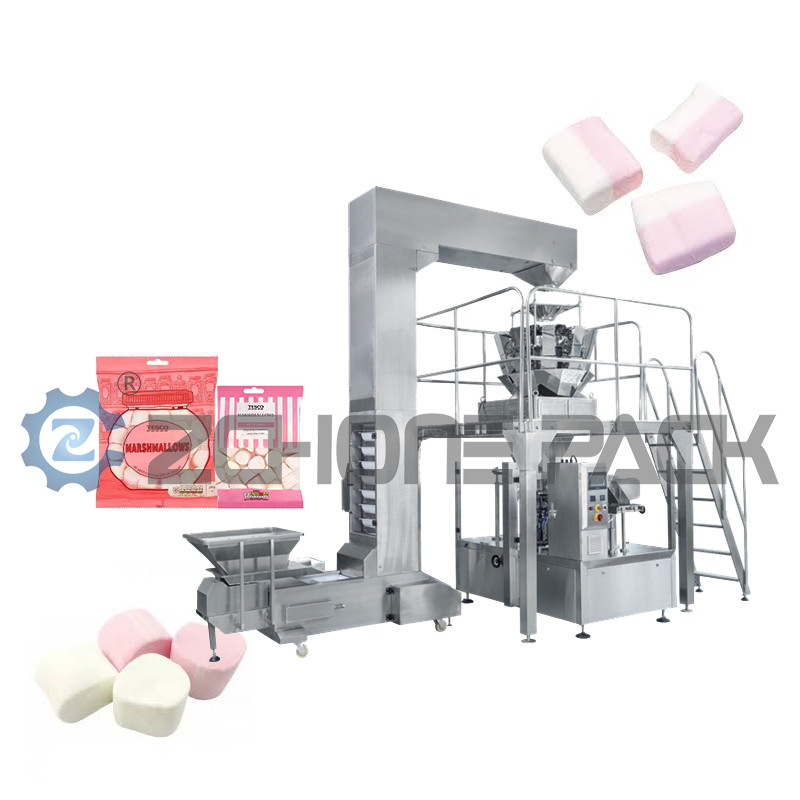

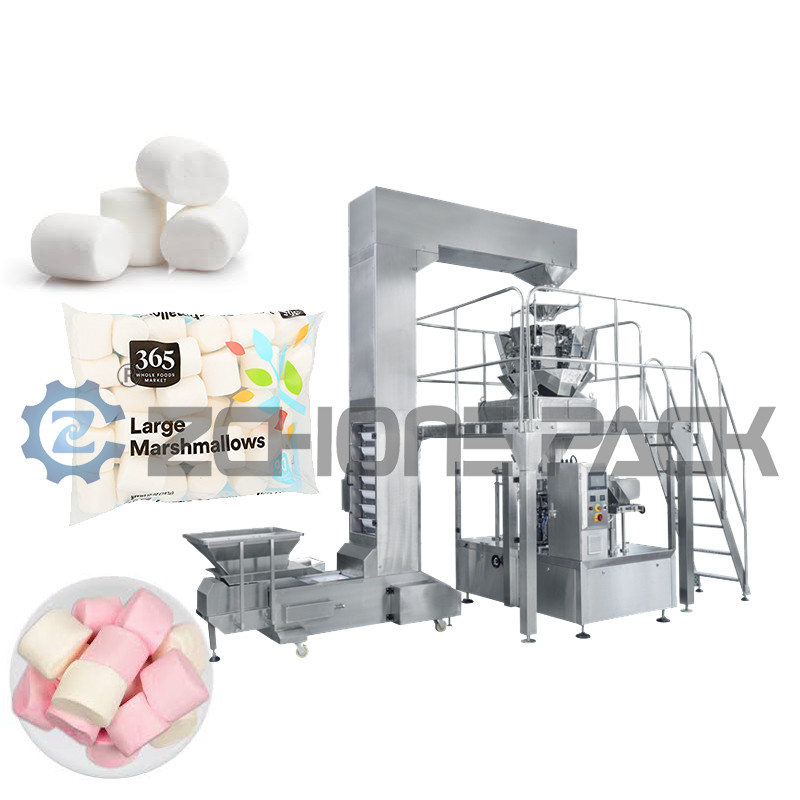

ZCHONE 1300kg Automatic Vacuum Packaging Machine Food Granule Multi Station

  • ZCHONE 1300kg Automatic Vacuum Packaging Machine Food Granule Multi Station
  • ZCHONE 1300kg Automatic Vacuum Packaging Machine Food Granule Multi Station
  • ZCHONE 1300kg Automatic Vacuum Packaging Machine Food Granule Multi Station
  • ZCHONE 1300kg Automatic Vacuum Packaging Machine Food Granule Multi Station
  • ZCHONE 1300kg Automatic Vacuum Packaging Machine Food Granule Multi Station
Place of Origin Guangdong，China
Brand Name ZCHONE PACK
Certification ISO，CE
Model Number ZC-8200
Minimum Order Quantity 1set
Price $18000
Packaging Details Standard export wooden case packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1/sets/15day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Automatic Packaging Machine Product Name Food Granule Multi-station Packaging Machine
Dimension(L*W*H) L1900*W1400*H1450 Weight (KG) 1300
Voltage 110V 220V 380V 50hz/60hz Production Capacity 20bag/min, 50bag/min, 30bag/min
Highlight

1300kg automatic vacuum packaging machine

,

ZCHONE automatic vacuum packaging machine

,

ZCHONE vacuum packaging machine
You can tick the products you need and communicate with us in the message board.
Packing Machine Type
Granule Packing Machine
Liquid Packing Machine
Powder Packing Machine
Stand-Up Pouch Packing Machine
Vertical Packing Machine
Horizontal Packing Machine
Tea Bag Machine
Coffee Bean Packing Machine
Horizontal Packing Machine
Leave a Message
Packing Machine Type
Product Description

Automatic Packaging Machine Vacuum Packaging Equipment Packaging Machine Manufacturer

Machine Specification:

Item ZC-X8200 ZC-X8250 ZC-X8300
Packing speed MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size (L)100-300mm (W)70-200mm (L)100-350mm (W)130-250mm (L)150-450mm (W)200-300mm
Bag type Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range 10g-1kg 10g-2kg 10g-3kg

Measurement

accuracy

 *≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width 200mm 250mm 300mm
Gas consumption 0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage 2.5KW 380V 50/60Hz 2.5KW 380V 50/60Hz 3.7KW 380V 50/60Hz
Air compressor Not less than 1CBM
Dimension L1900*W1400*H1450 L1900*W1400*H1450 L2000*W1500*H1550
Machine Weight 1300kg 1400kg 1500kg
Work flow Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive customized services according to your needs!)



Products in plastic bags are a relatively common form of packaging in daily life. Various measurements and products, from food, seasoning, sauce packages, hardware accessories, etc., will require bags of different specifications. Nowadays, in order to promote consumption, a wide variety of unique packaging styles are presented in front of everyone. It is inevitable that some people will have doubts. How did such exquisite packaging come about?



Bag packaging can be roughly divided into granule bag packaging machine production line, powder bag packaging machine production line, liquid bag packaging machine production line, etc. No matter what your product is, we have a customized bag packaging production line equipment solution. suitable for you.

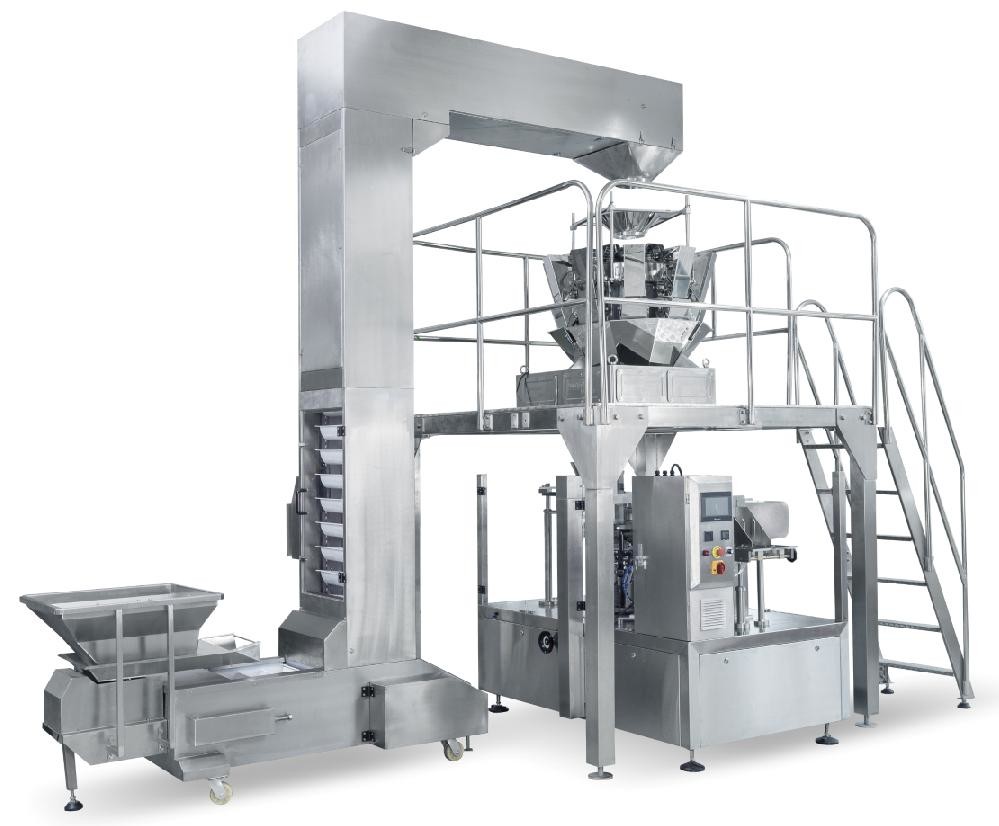

Granular bag packaging can be packed: nuts, oats, fertilizers, seeds, Chinese herbal medicine pieces, wolfberry, miscellaneous grains and other Chinese herbal medicine granules, etc. The bag packaging machine can realize automatic bag taking, date printing, bag opening, signal metering to the metering device and blanking, sealing, and output. The main optional configurations are material metering filling machine, working platform, weight sorting scale, material hoist, vibrating feeder, finished product conveying hoist, metal detector, etc.
